Запчасти Case IH 7120 (90.120.07) - SEAT, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

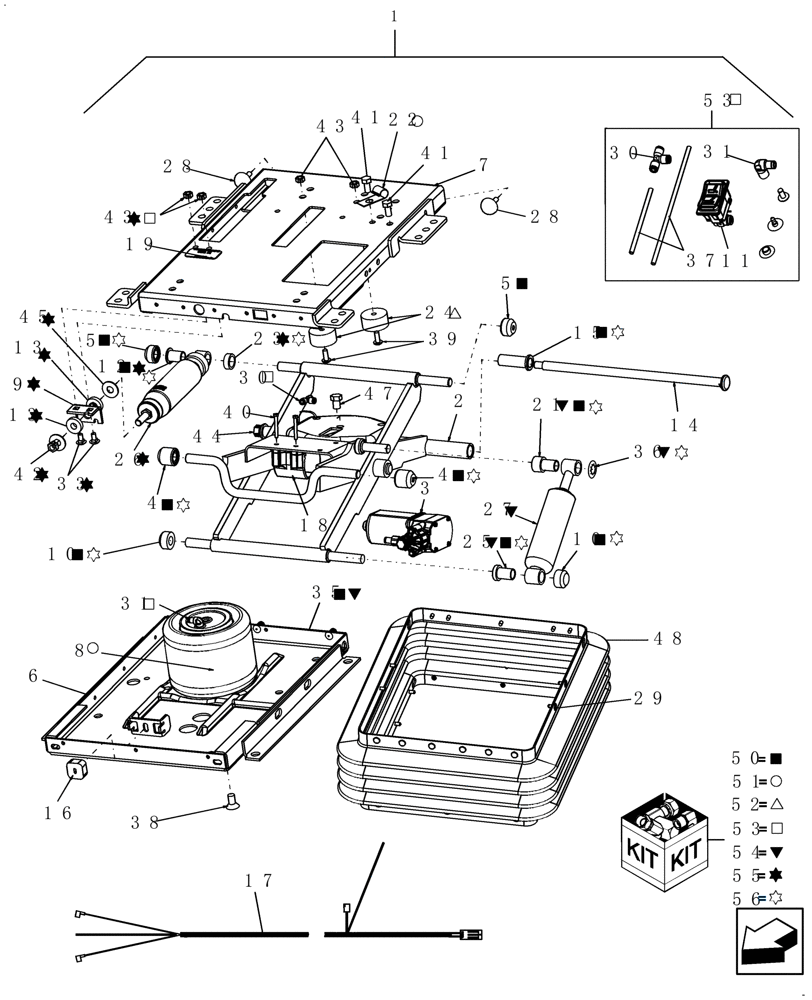

Схема запчастей Case IH 7120 - (90.120.07) - SEAT, SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
31
47
17
41
13
44
1
55
3
18
31
16
30
53
9
27
7
28
15
11
5
51
10
53
24
28
22
41
42
19
50
14
25
4
13
33
4
29
36
21
40
35
26
54
48
52
8
56
2
45
38
23
37
30
12
43
10
43
6
39
5

Артикул

Название

Примечание

Количество

1

84120492

SUSPENSION

1шт.

2

1990643C1

FRAME ASSY

Suspension Arm

1шт.

3

84120498

KIT

Compressor Assy; Includes: Compressor, Mount (Ref 18), Tee, Tubes, & Ties

1шт.

4

NSS

NOT SOLD SEPARAT

Roller, Wide

2шт.

5

NSS

NOT SOLD SEPARAT

Roller, Narrow

2шт.

6

NSS

NOT SOLD SEPARAT

Seat Suspension Weldment, Lower

1шт.

7

NSS

NOT SOLD SEPARAT

Seat Suspension Weldment, Upper

1шт.

8

NSS

NOT SOLD SEPARAT

Air Spring

1шт.

9

NSS

NOT SOLD SEPARAT

Angle, Shock Mounting

1шт.

10

NSS

NOT SOLD SEPARAT

Roller

2шт.

11

87347940

ROCKER SWITCH

Valve, Seat

1шт.

12

NSS

NOT SOLD SEPARAT

Bushing, Shock Isolator

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing

2шт.

14

143786A1

SHAFT,308.9mm L

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing, Tube

1шт.

16

276467

BUMPER

1шт.

17

87390389

WIRE HARNESS

Compressor/Suspension

1шт.

18

NSS

NOT SOLD SEPARAT

Mount, Compressor; See Ref 3

1шт.

19

NS

NOT SERVICED

Plate, Serial Number

1шт.

20

Ref. Not Used

1шт.

21

NSS

NOT SOLD SEPARAT

Bearing, Sleeve

1шт.

22

NSS

NOT SOLD SEPARAT

Clip, "J"

1шт.

23

NSS

NOT SOLD SEPARAT

Spacer, Fore-Aft

1шт.

24

NSS

NOT SOLD SEPARAT

Bumper

2шт.

25

NSS

NOT SOLD SEPARAT

Bearing

1шт.

26

NSS

NOT SOLD SEPARAT

Shock

1шт.

27

NSS

NOT SOLD SEPARAT

Shock

1шт.

28

NSS

NOT SOLD SEPARAT

Bumper

2шт.

29

87347976

SERVICE KIT

Boot Clip

1шт.

30

NSS

NOT SOLD SEPARAT

Fitting, Tee; M4

1шт.

31

NSS

NOT SOLD SEPARAT

Elbow, 90°, 1/8", NPT Male x 5/32" OD

1шт.

33

NSS

NOT SOLD SEPARAT

Bolt, Carriage, 1/4"-20 UNC-2A

2шт.

35

NSS

NOT SOLD SEPARAT

Clip, Christmas Tree

3шт.

36

NSS

NOT SOLD SEPARAT

Retainer, Internal Tooth, 1/2"

1шт.

37

NSS

NOT SOLD SEPARAT

Tubing

2шт.

38

NSS

NOT SOLD SEPARAT

Screw, Flat Head Machine, 3/8"-16, UNC-2A

1шт.

39

NSS

NOT SOLD SEPARAT

Screw, Rnd Hd Machine, 1/4"-20 UNC, 5/8" Lg

2шт.

40

NSS

NOT SOLD SEPARAT

Bolt, #8 x 1.25", Type AB Slotted HH Flg

2шт.

41

NSS

NOT SOLD SEPARAT

Bolt, 5/16"-14 x .63, Thread-Forming Blunt Pt Hex Wshr Hd

2шт.

42

NSS

NOT SOLD SEPARAT

Nut, Centerlock, 5/16"-24 UNC

1шт.

43

NSS

NOT SOLD SEPARAT

Nut, Centerlock, 1/4"-20 UNC

4шт.

44

NSS

NOT SOLD SEPARAT

Nut, Centerlock, 3/8"-16 UNC

1шт.

45

NSS

NOT SOLD SEPARAT

Washer, .406" ID x 1" OD x .06" Thk

2шт.

47

NSS

NOT SOLD SEPARAT

Bolt, HH 3/8"-16 x 1/2"

1шт.

48

84120495

KIT

Includes Rivets & Clips

1шт.

50

87347967

BEARING ASSY

Bearing Seat

1шт.

51

197793A1

SPRING

Kit

1шт.

52

180593A1

KIT

Bumper

1шт.

53

84120500

KIT

Airline

1шт.

54

1344250C2

KIT

Seat Shock Absorber

1шт.

55

87352580

SERVICE KIT

Seat Shock Absorber, Fore/Aft

1шт.

56

180594A3

KIT

Rollers & Bearings

1шт.

Выбрано товаров: 52
