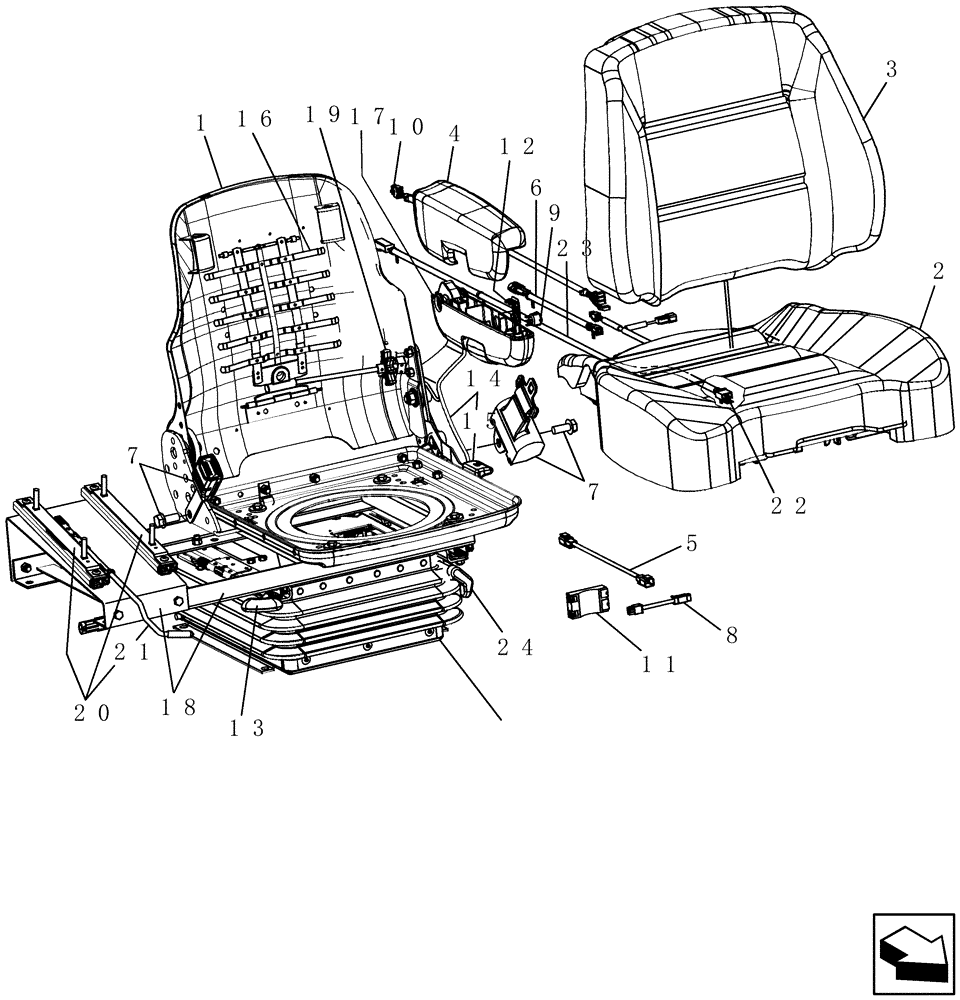

Запчасти Case IH 7120 (90.120.06) - SEAT COMPONENTS, OPERATOR (HEATED) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

Shell, Seat

1шт.

2

87749241

SEAT CUSHION

Red Leather; Includes Heater, Harnesses, & Switch

1шт.

3

87397614

SEAT CUSHION

Red Leather; Includes Heater & Harness

1шт.

4

NSS

NOT SOLD SEPARAT

Pad, Armrest, L.H.

1шт.

5

84203622

WIRE HARNESS

Extension, Seat Heater

1шт.

6

84203621

WIRE HARNESS

Operator Presence Jumper

1шт.

7

84120502

KIT

Seat Belt: Included Belt, Receiver and Hardware

1шт.

8

87752587

HARNESS

Extension, Seat Heat Controller

1шт.

9

87749302

SWITCH

Seat Heater, Three Position

1шт.

10

87749304

HARNESS

Heater, Three-Position

1шт.

11

87749303

CONTROL UNIT

Plug, Switch Hole

1шт.

12

NSS

NOT SOLD SEPARAT

1шт.

13

84120499

KIT

Seat Slide; Includes Slides, Handle, & Mounting Hardware

1шт.

14

86994165

SEAT ACCESSORY

Recliner; Includes Lever, Latch, Knob, & Hardware

1шт.

15

87416475

KNOB

1шт.

16

87308130

SEAT BACK ADJUST DEV

Kit, Lumbar Support

1шт.

17

84120494

ARMREST

Kit, L.H. Armrest; Includes Armrest Bottom, Adjusting Knob/Shaft, & Hardware

1шт.

18

84120503

KIT

R.H. Console Slide; Includes Slides, Handle, & Mounting Hardware

1шт.

19

87037462

SEAT BACK ADJUST DEV

Wheel

1шт.

20

84120504

KIT

R.H. Console Slide, Includes Slide, Handle and Hardware

1шт.

21

84120505

KIT

Console Lever; Includes Lever, Cap, & Hardware

1шт.

22

86400227

SWITCH,Two Connectors, 90° Terminals

Operator Presence

1шт.

23

87568463

WIRE HARNESS

Operator Presence Switch

1шт.

24

84189454

SEAT ACCESSORY

Knob, Fore and Aft

1шт.
