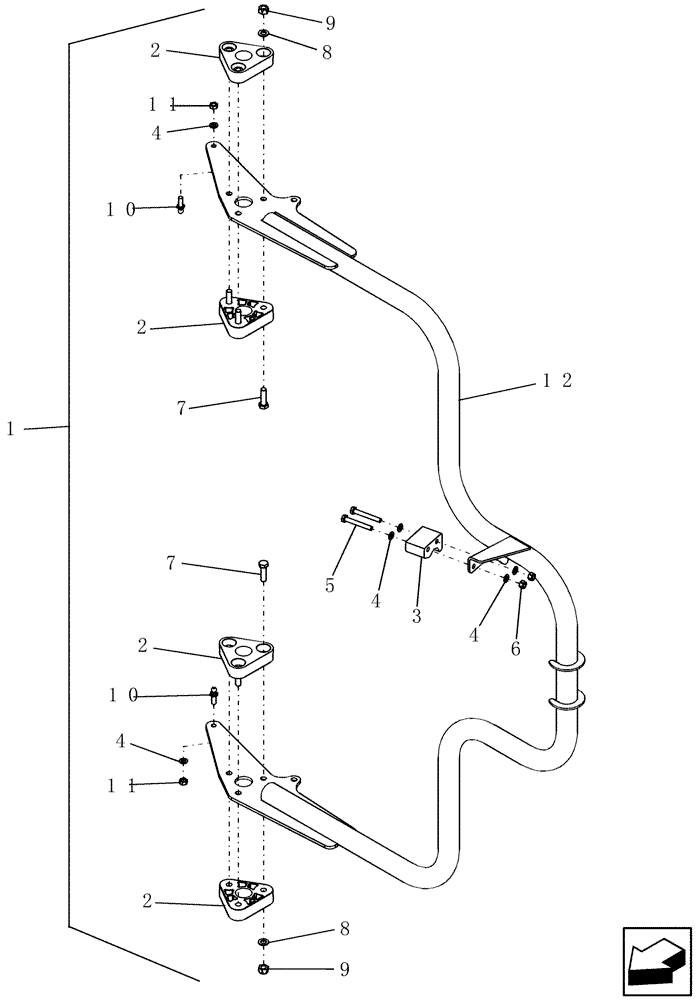

Запчасти Case IH 7120 (90.118.44) - ARM, REAR DECK LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87746846

ARM ASSY.

Incl Refs 2 Thru 12

1шт.

2

87105202

BUSHING

4шт.

3

84607119

LATCH

1шт.

4

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

5

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

6

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

7

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

8

140017

WASHER,M10 x 20mm OD x 2mm Thk

6шт.

9

86512554

NUT,M10 x 1.5, Cl 10

6шт.

10

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

2шт.

11

9706690

NUT,M8 x 1.25, Cl 8

2шт.

12

87653242

ARM ASSY.

1шт.
