Запчасти Case IH 7120 (90.118.41) - DECK, REAR, LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

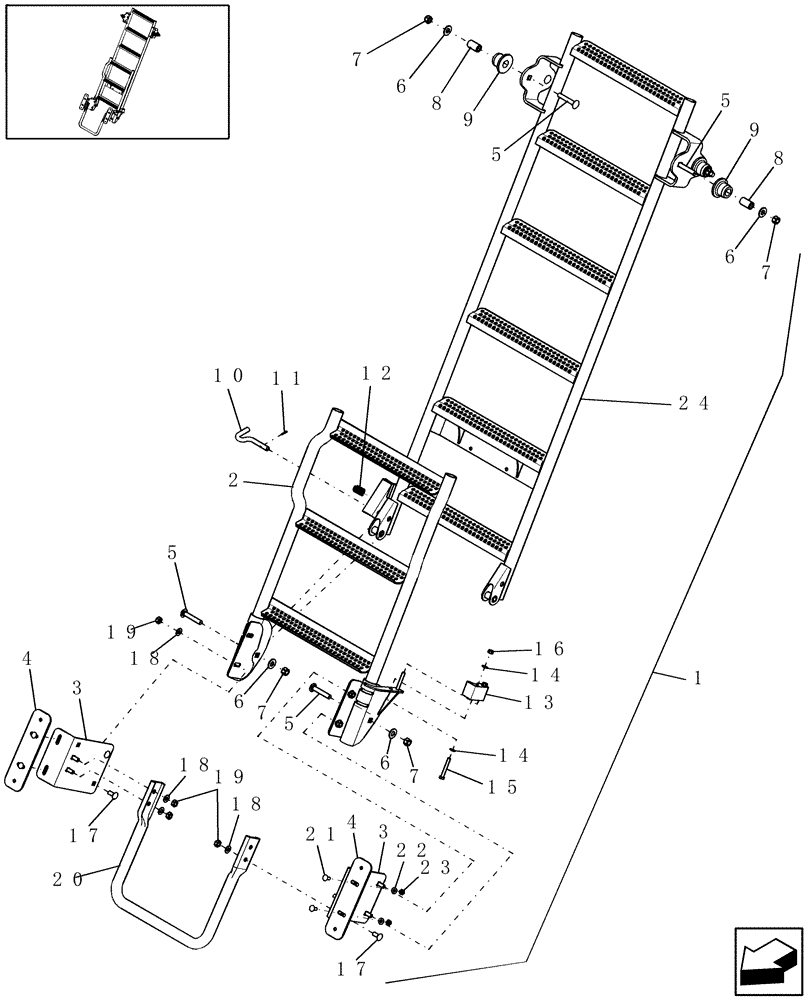

Схема запчастей Case IH 7120 - (90.118.41) - DECK, REAR, LADDER (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
16
5
3
10
1
7
6
4
20
17
19
7
18
6
2
8
19
11
5
6
22
21
5
14
18
7
24
7
13
8
5
18
12
4
9
23
15
14
17
3
9

Артикул

Название

Примечание

Количество

1

87591939

LADDER

Incl Refs 2 Thru 24

1шт.

2

87497817

LADDER

Lower

1шт.

3

87498873

BRACKET

Support, Ladder Shield, L.H.

1шт.

4

87672123

PLATE

2шт.

5

338263

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

6шт.

6

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

6шт.

7

100038

NUT,M12 x 1.75, Cl 8

6шт.

8

436353

BUSHING,12.5mm ID x 22mm OD x 39mm OAL

4шт.

9

424230

BUSHING,Tapered Hat, 22.6mm ID x 40mm OD x 60mm OD x 38mm OAL

4шт.

10

1319740C2

PIN,3mm OD x 20mm OAL

1шт.

11

300865

LOCK PIN,M3 x 20mm OAL, Slotted

1шт.

12

87000071

COMPRESSION SPRING,47.2mm Free Length

1шт.

13

84607119

LATCH

1шт.

14

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

15

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.

16

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

17

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

8шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

19

100016

NUT,M10 x 1.5, Cl 8

8шт.

20

87746671

HANDLE

1шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

23

43362

NUT,M8 x 1.25, Cl 10

4шт.

24

87591937

LADDER

Ladder, Upper

1шт.

25

87498875

BRACKET

Support, Ladder Shield, L.H.

1шт.
