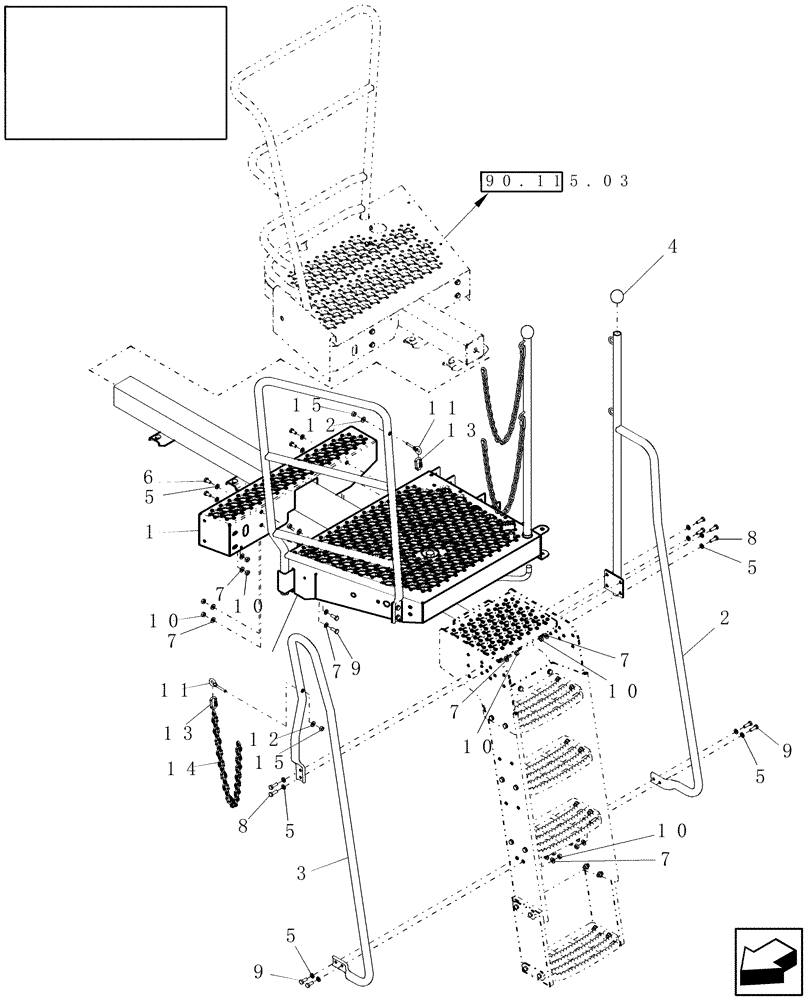

Запчасти Case IH 7120 (90.118.39[01]) - RAILING, PLATFORM, NA/LATIN AMERICA (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87548617

PLATFORM

150, Extension

1шт.

2

87109386

HANDRAIL

1шт.

3

87284635

HANDRAIL

L.H.

1шт.

4

87109879

KNOB

Ladder Latch

1шт.

5

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

18шт.

6

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

18шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

9

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

6шт.

10

100016

NUT,M10 x 1.5, Cl 8

18шт.

11

87510645

EYEBOLT,M6

2шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

13

326376A2

LINK

Chain

2шт.

14

87109887

CHAIN,807.32mm L

Ladder Gate

1шт.

15

87308550

NUT,M6

Dome

2шт.
