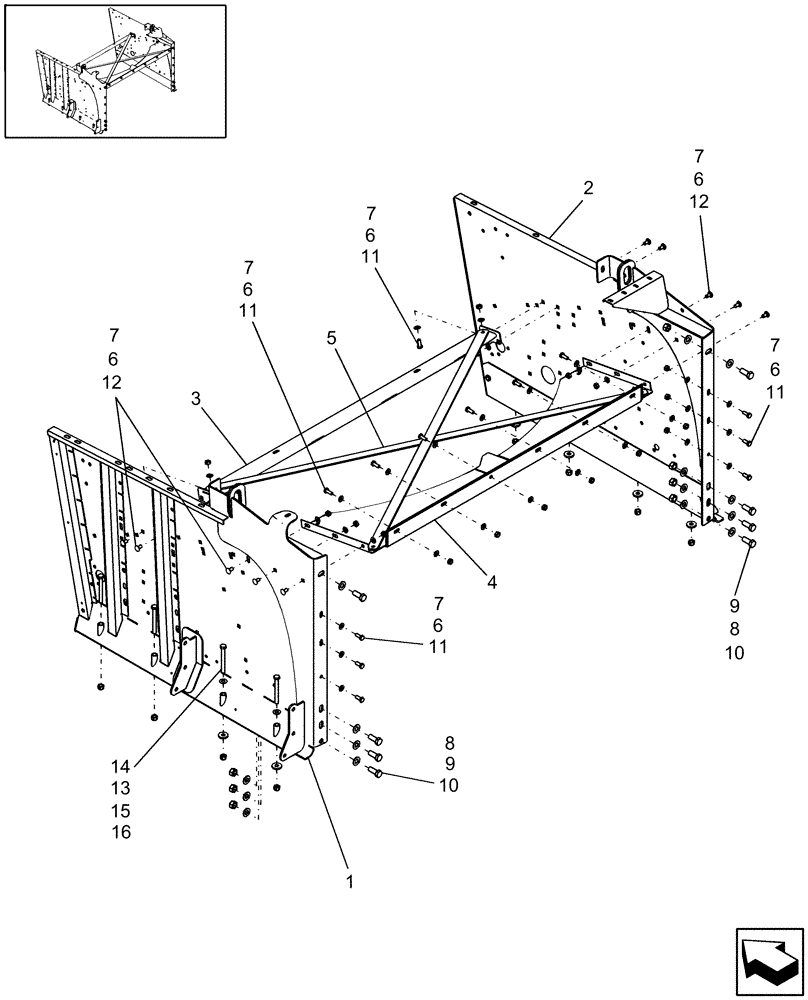

Запчасти Case IH 7120 (90.116.02) - STRAW HOOD FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87749284

SHEET ASSY.

R.H.

1шт.

2

87749286

SHEET ASSY.

L.H.

1шт.

3

87107941

SUPPORT

Center

1шт.

4

86999083

SUPPORT

1шт.

5

86999088

PLATE

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

38шт.

7

100016

NUT,M10 x 1.5, Cl 8

24шт.

8

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

16шт.

9

100020

NUT,M16 x 2.0, Cl 8

8шт.

10

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

8шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

14шт.

12

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

10шт.

13

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

14

86639151

BOLT,Hex, M12 x 120mm, Cl 10.9

8шт.

15

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

16

412672

NUT,Hex, M12 x 1.75, Cl 10

8шт.
