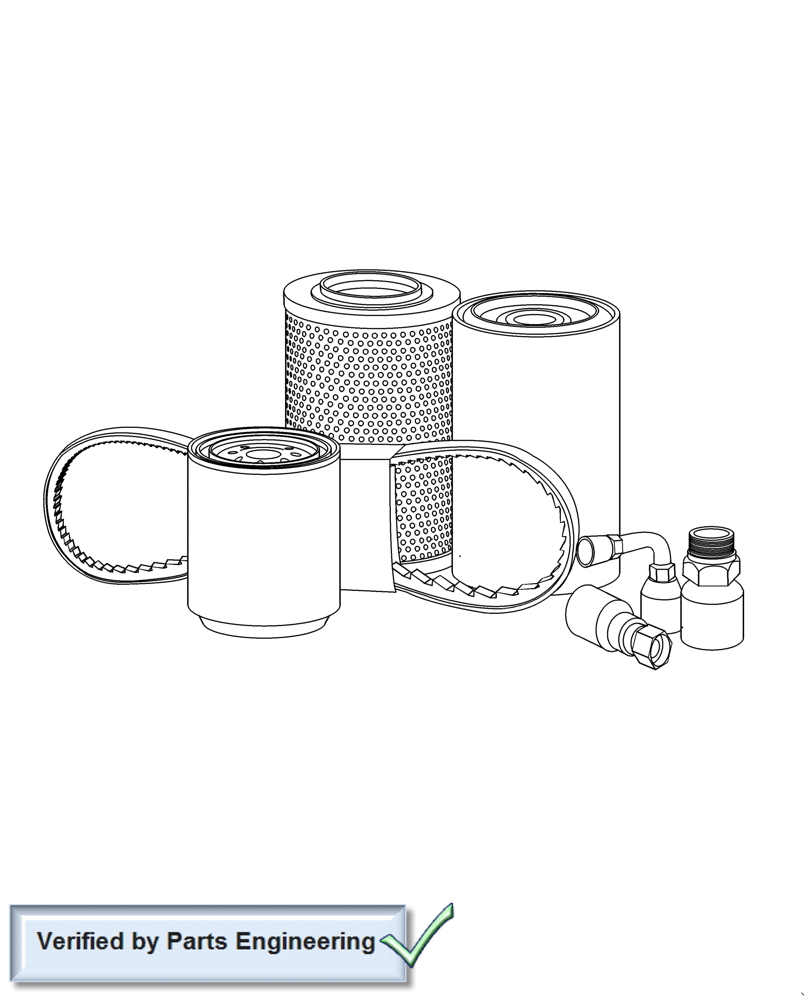

Запчасти Case IH 7120 (05.100.03[01]) - FILTERS, AXIAL-FLOW 7120 (05) - SERVICE & MAINTENANCE

1

84346773

ENGINE OIL FILTER,110mm OD x 212mm L, M30 x 2

Spin On

1шт.

2

86998332

AIR FILTER,Secondary, 133.1mm ID x 175.1mm OD x 541.7mm L, Pleatloc

Engine, Secondary, Inner - L=21.3", OD=6.9", Serial Range: -YBG213600

1шт.

3

84305935

AIR FILTER,Round, 167mm OD x 565.5mm L, Paper

Engine, Secondary, Inner - L=23.7", OD=7.1", Start Serial: YBG213600

1шт.

4

86998333

AIR FILTER,Primary, 172.3mm ID x 332.4mm OD x 555.2mm L, Pleatloc

Engine, Primary, Outer - L=21.9", OD=19.1", Serial Range: -YBG213600

1шт.

5

84305930

AIR FILTER,Round, 400mm ID x 321mm OD x 604.5mm L, Paper

Primary, Engine, Start Serial: YBG213600

1шт.

6

84565656

AIR CLEANER

Pre-Cleaner (Not Used Before Begining Serial), Start Serial: YBG213600

1шт.

8

84217229

AIR FILTER,91mm ID x 164.5mm OD x 347mm L

Cab, External, Fresh Air

1шт.

9

84058793

AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper

Cab, HVAC

1шт.

10

84487937

HYDRAULIC OIL FILTER,Spin On, 14.48" OAL

Main Stack Valve

1шт.

11

84523925

HYDRAULIC OIL FILTER

PTO Lube

1шт.

12

254353A1

HYDRAULIC OIL FILTER

Hydro Charge, Spin On

1шт.

13

84597064

FUEL FILTER,93mm OD x 212.5mm L, M16 x 1.5

Engine, Primary

1шт.

14

84477370

FUEL FILTER,Water Separator, 89mm L x 89mm W x 55mm Thk, 30 Micron

Additional Separ Water Separator

1шт.

15

84348882

FUEL FILTER,97mm OD x 184mm L, M16 x 1.5, 30 Microns

Water Separator

1шт.

16

86999949

FUEL FILTER

Fuel Tank Vent

1шт.

17

504127720

AIR FILTER

Engine Crankcase Breather

1шт.

18

87000622

HYDRAULIC OIL FILTER

Hydraulic Reservoir Fill Neck

1шт.
