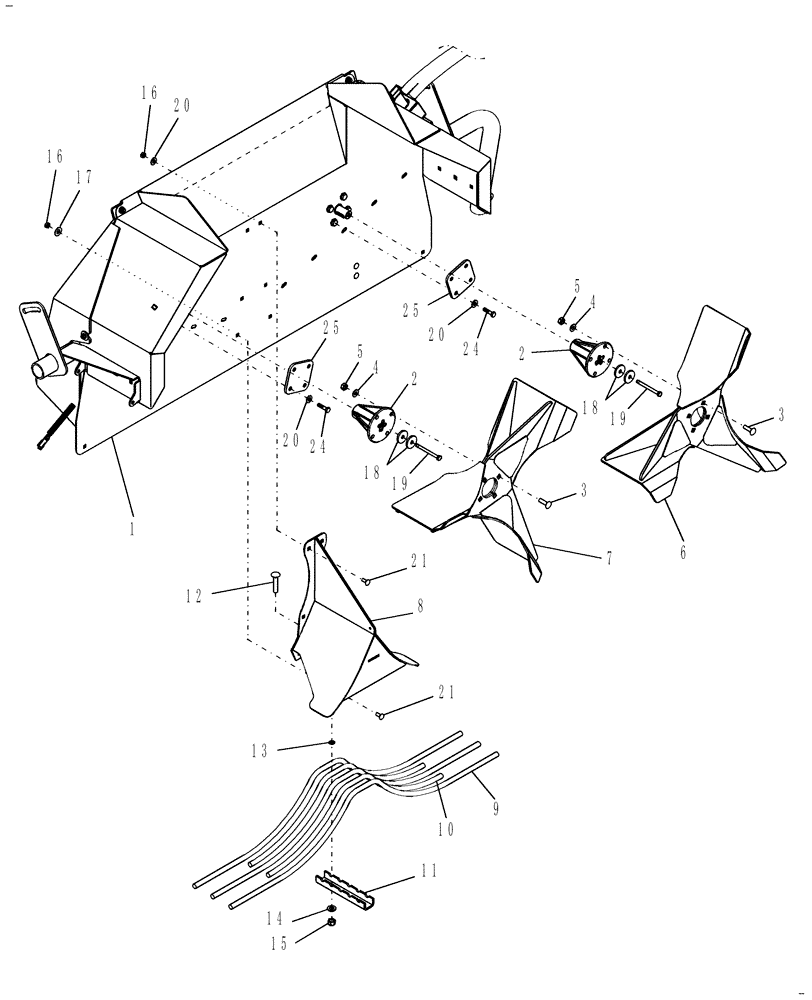

Запчасти Case IH 7120 (88.230.19) - SPREADER, LOWER, W/FINGER BAR DISTRIBUTOR (88) - ACCESSORIES

1

87633937

FRAME ASSY

Housing; Includes Ref 23

1шт.

For NA Only

1шт.

1

87633938

FRAME ASSY

Housing; Includes Ref 23 & 26

1шт.

EU Only

1шт.

2

87314540

HUB

2шт.

3

412183

CARRIAGE BOLT,Short Sq Nk, M10 x 35mm, Cl 8.8

8шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

5

100016

NUT,M10 x 1.5, Cl 8

8шт.

6

87284515

FAN BLADE

BLADE LH

1шт.

7

87284519

FAN BLADE

BLADE RH

1шт.

8

87283411

BAR

SUPPORT, Finger

1шт.

For NA Only; For EU

1шт.

9

87282590

FINGER BAR

Long

3шт.

For NA Only; For EU

1шт.

10

87282592

FINGER BAR

Short

2шт.

For NA Only; For EU

1шт.

11

87282620

FINGER

CLAMP

1шт.

12

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

13

9706685

NUT,M12 x 1.75, Cl 8

2шт.

14

86588502

WASHER,13mm ID x 25mm OD x 3mm Thk

2шт.

15

100038

NUT,M12 x 1.75, Cl 8

2шт.

16

9706690

NUT,M8 x 1.25, Cl 8

6шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

264198

WASHER,9.9mm ID x 39.1mm OD x 4.8mm Thk

4шт.

19

87302583

LOCK BOLT,M8 x 1.25 x 95.45mm, Cl 10.9

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

6шт.

22

Reference Not Used

1шт.

23

84004739

DECAL

Stand Clear

3шт.

EU Only

1шт.

23

86640441

WARNING DECAL

Stand Clear

3шт.

For NA Only

1шт.

24

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

8шт.

25

87531172

PLATE

2шт.

26

87757489

DECAL

Moving Parts

1шт.
