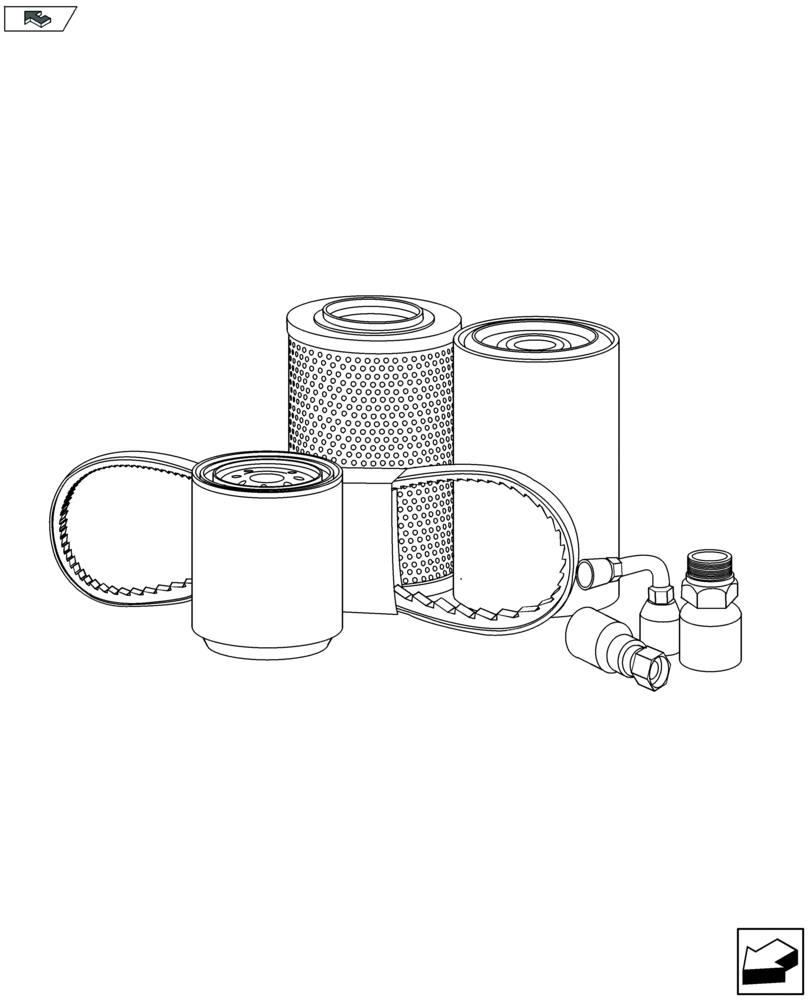

Запчасти Case IH 7120 (05.100.01[02]) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

1

504194432

FUEL SYSTEM INJECTOR

6шт.

2

2852821

SENSOR

Air Temp and Pressure

1шт.

3

500346371

SENSOR

Clogged Fuel Filter Indicator

1шт.

4

500382599

SENSOR,Temperature

Coolant/Fuel

1шт.

5

504096645

TRANSMITTER

Engine Position Sensor

2шт.

6

4890193

SENSOR

Oil Pressure and Temperature

1шт.

7

86531126

SENSOR

A/C Temp

1шт.

8

84058863

SENSOR

Proximity, Spreader Position

1шт.

9

86998035

POTENTIOMETER

Concave Position

1шт.

10

84058860

SENSOR

Transmission Speed

1шт.

11

87342073

SENSOR

Straw Chopper

1шт.

12

87026294

SENSOR

Inclination

1шт.

13

86975430

SENSOR

Feeder Pressure

1шт.

14

87330286

SENSOR

Feeder and Lateral Tilt

1шт.

15

87105603

SENSOR

Rotor Gearbox Speed

1шт.

16

87693034

SENSOR

Control/Regulated Pressure

1шт.

17

87645689

HYDRAULIC VALVE

Control Pressure Regulator

1шт.

18

84457942

SENSOR

Transmission Position

1шт.

19

87662557

SENSOR

Rotor Motor Speed

1шт.

20

87662555

SENSOR

Feeder Speed

1шт.

21

84058861

SENSOR

Cleaning Fan Speed

1шт.

22

86638209

STRIP

Feeder Chain Wear

4шт.

23

87646011

SLAT

Serrated Feeder, Z-Bar Type

6шт.

24

87646005

CHAIN (AG)

Feeder, Non-Rock Trap, Z-Bar

1шт.

25

87646015

CHAIN (AG)

Feeder, Rock Trap, Z-Bar

1шт.

26

87108966

KNIFE BLADE

Rock Trap Wear

4шт.

27

87517351

DEFLECTOR

Transition Cone, RH, Extended Wear, Rice

1шт.

28

87524461

DEFLECTOR

Transition Cone, RH, Standard Wear

1шт.

29

87517350

DEFLECTOR

Transition Cone, LH, Extended Wear, Rice

1шт.

30

87524460

DEFLECTOR

Transition Cone, LH, Standard Wear

1шт.

31

87470737

CHAIN,RC60, 104 Links x 19.05mm = 1981.08mm

Grain Elevator Roller

1шт.

32

86998066

CHAIN,60H, 284 Links x 19.05mm = 5410.2mm

Unloader Drive

1шт.

33

87470736

CHAIN,RC60, 65 Links x 19.05mm = 1238.3mm

Grain Tank Delivery Drive

1шт.

34

86976165

IDLER,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

Tailing Idler

1шт.

35

87106692

KNIFE SECTION

Chopper, Coarse Cut

1шт.

36

87109088

BEARING ASSY

Beater/Chopper Drive

1шт.

37

87642623

HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 591mm Stroke

Unloader Swing

1шт.

38

278820A4

RASP BAR

Standard Spiked

10шт.

39

1309336C2

RASP BAR

Standard Non-Spiked

20шт.

40

87368806

RASP BAR

Small Tube (23") Spiked

5шт.

41

336945

WHEEL NUT,M22 x 1.5, Cl 10

20шт.

42

87367550

FLANGE BOLT,Hex, M22 x 1.5 x 95mm, Cl 12.9

20шт.

43

87283501

SPACER

Wheel

10шт.

44

87280385

SPACER

Wheel

2шт.

45

87282493

STUD,M22 x 1.5 x 84mm

10шт.

46

86995010

STRAINER ELEMENT

Hydraulic Reservoir

1шт.

47

87357091

FUEL FILTER

Tank Inlet Strainer

1шт.
