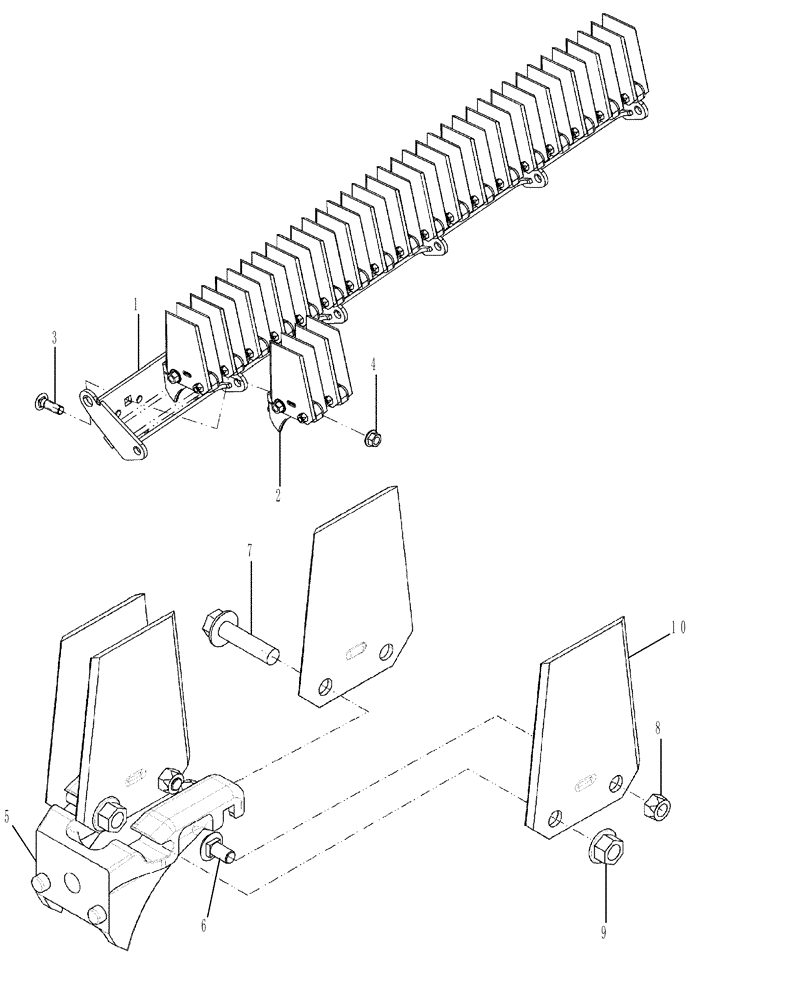

Запчасти Case IH 7120 (88.230.11[02]) - KNIFE FRAME, FIXED; FOR USE W/3X3 INTEGRATED CHOPPER, ASN, YAG208311 (88) - ACCESSORIES

1

84191695

MOUNTING PLATE

1шт.

2

84191696

KNIFE ASSY

Fine Cut

10шт.

2

84228905

KNIFE ASSY

Standard Cut

10шт.

3

87698852

CARRIAGE BOLT,M12 x 40mm, Cl 10.9

10шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

10шт.

5

Part of Ref 2

1шт.

6

86619060

CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8

4шт.

7

9804263

BOLT,M10 x 49.2mm, Cl 8.8

2шт.

8

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

10

84199253

KNIFE

NSS, Use 84232967 Service Kit

4шт.
