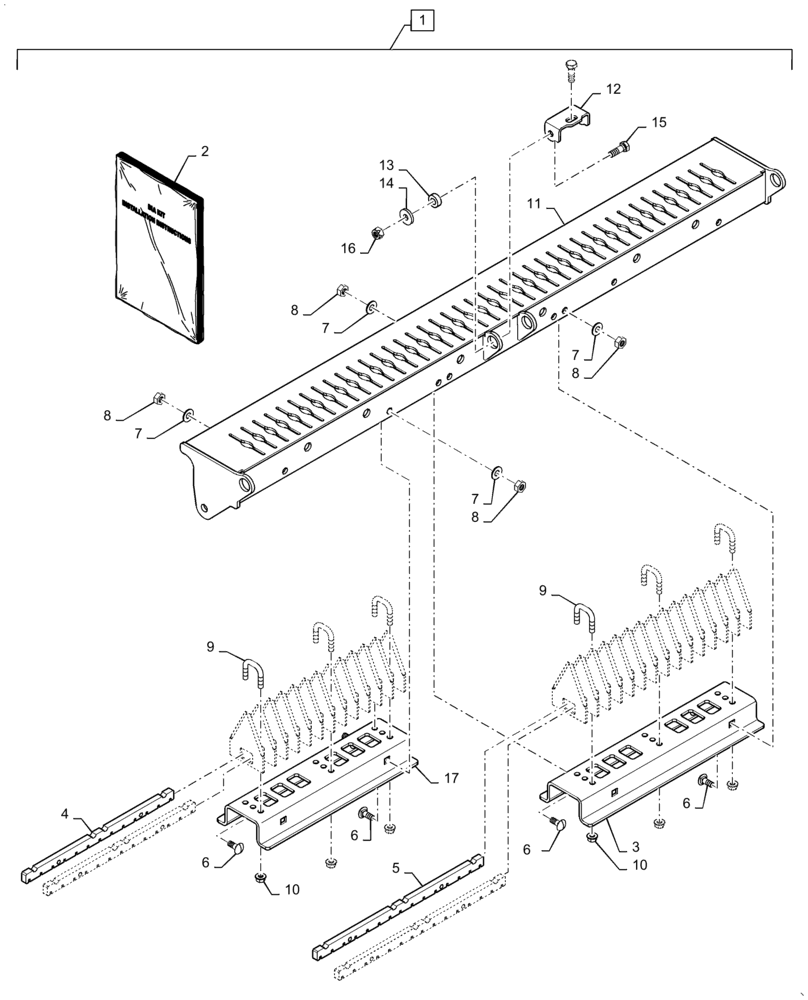

Запчасти Case IH 7120 (88.220.03[01]) - KNIFE HOLDER, CHOPPING UNIT, SMALL (88) - ACCESSORIES

1

87670027

SERVICE KIT

Knife Bar, Fine, Incl 2 - 16

1шт.

2

87670025

INSTRUCTION

Installation, Knife Bar, Fine

1шт.

3

87585835

SUPPORT ASSY.

Knife, Wide

1шт.

4

87633177

RETAINER

Knife, Narrow, Fine

4шт.

5

87633179

RETAINER

Knife, Wide, Fine

2шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

12шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

8

100016

NUT,M10 x 1.5, Cl 8

12шт.

9

87391950

U-BOLT

M8 x 1.25, 20mm of Thd, 27mm ID

9шт.

10

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

18шт.

11

87578082

FRAME

Knife Bar, Fine

1шт.

12

87592357

BRACKET

122.7mm OAL x 39.5mm W

1шт.

13

86997386

BUSHING,11.15mm ID x 22.23mm OD x 8mm L

11.15mm ID x 22.23mm OD x 8mm W

2шт.

14

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

3шт.

15

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

16

100037

LOCK NUT,M10 x 1.5, Cl 8

3шт.

17

87578084

SUPPORT ASSY.

Knife, Narrow

2шт.
