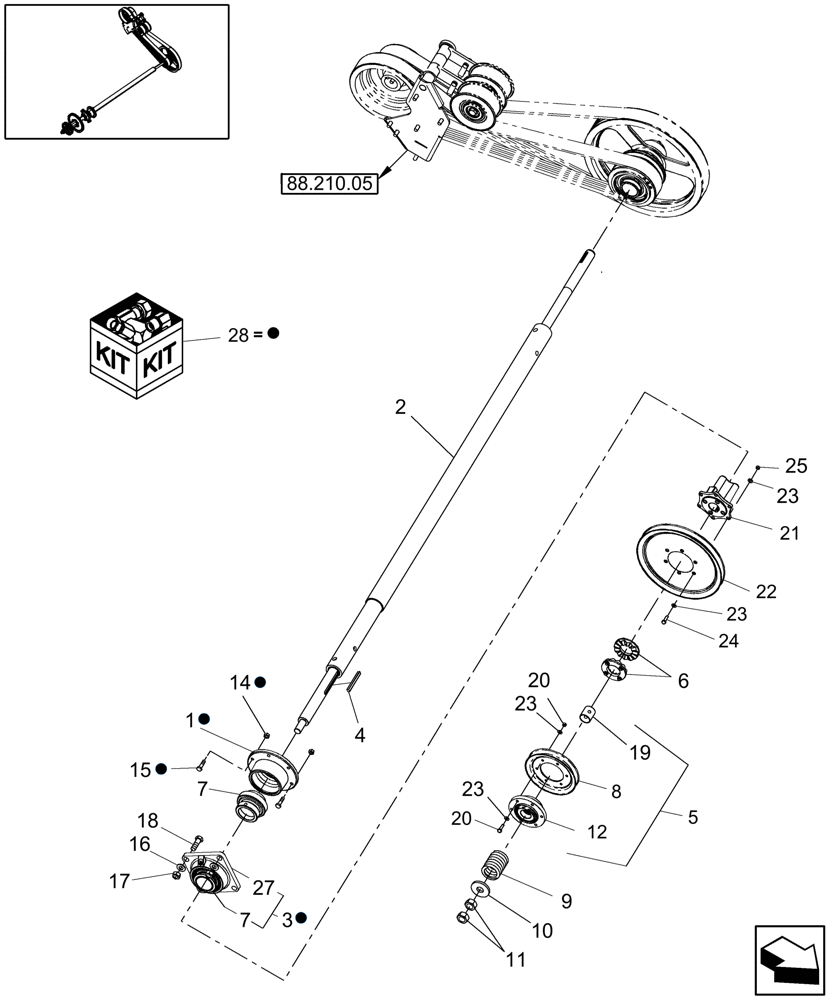

Запчасти Case IH 7120 (88.210.01[01]) - STRAWCHOPPER DRIVE - 7120/7120(LA) (88) - ACCESSORIES

1

84174156

BEARING ASSY

Bearing; Incl Ref 7

1шт.

2

87394736

SHAFT

Shaft Chopper, Prior To Serial YAG209067

1шт.

2

84202373

BEATER

Shaft, Heat Treated, ASN YAG209067. Used With Bellville Spring 87011857 For Tailings Slip Clutch. To Install On Combines Prior To YAG209067, Use Kit 84263232

1шт.

3

87109088

BEARING ASSY

1шт.

Please see Figure Note

1шт.

4

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

1шт.

5

87629095

PULLEY ASSY.

1шт.

6

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

7

NSS

NOT SOLD SEPARAT

Bearing

2шт.

8

86999341

PULLEY,218mm OD

Tailings Driver

1шт.

9

420927

SPRING,110mm Free Length

1шт.

10

86997063

GROOVED BUSHING,50.04mm ID x 94.49mm OD x 20.83mm Thk

1шт.

11

9848973

NUT,M24 x 3.0, Cl 10

2шт.

12

87619879

HUB,44.0125mm ID x 62mm Thk

1шт.

14

86512497

FLANGE NUT,M12 x 1.75, Cl 10

6шт.

15

87672196

FLANGE BOLT,Hex, M12 x 45mm, Cl 10.9

M12 x 45

6шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

17

392530

NUT,M16, Cl 10

4шт.

18

9845488

BOLT

4шт.

19

86997496

BUSHING,40.09mm ID x 44.09mm OD x 50mm L

1шт.

20

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

6шт.

21

87011488

HUB,40.02mm ID x 110.8mm Thk

, Serial Range: -YAG209067

1шт.

21

84252602

HUB

, Start Serial: YAG209067

1шт.

22

84128455

PULLEY ASSY.

Single Speed

1шт.

Shown

1шт.

22

86999007

PULLEY,335mm OD

Two Speed (Double Pulley)

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

24

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

6шт.

26

825-1408

NUT,M8, Cl 8

6шт.

27

NSS

NOT SOLD SEPARAT

Housing, Bearing; Incl W/Ref 3

1шт.

28

87723220

DRIVE

Kit, Strawchopper Drive

1шт.

Part of Kit 87723223, Beater to Chopper Conversion

1шт.
