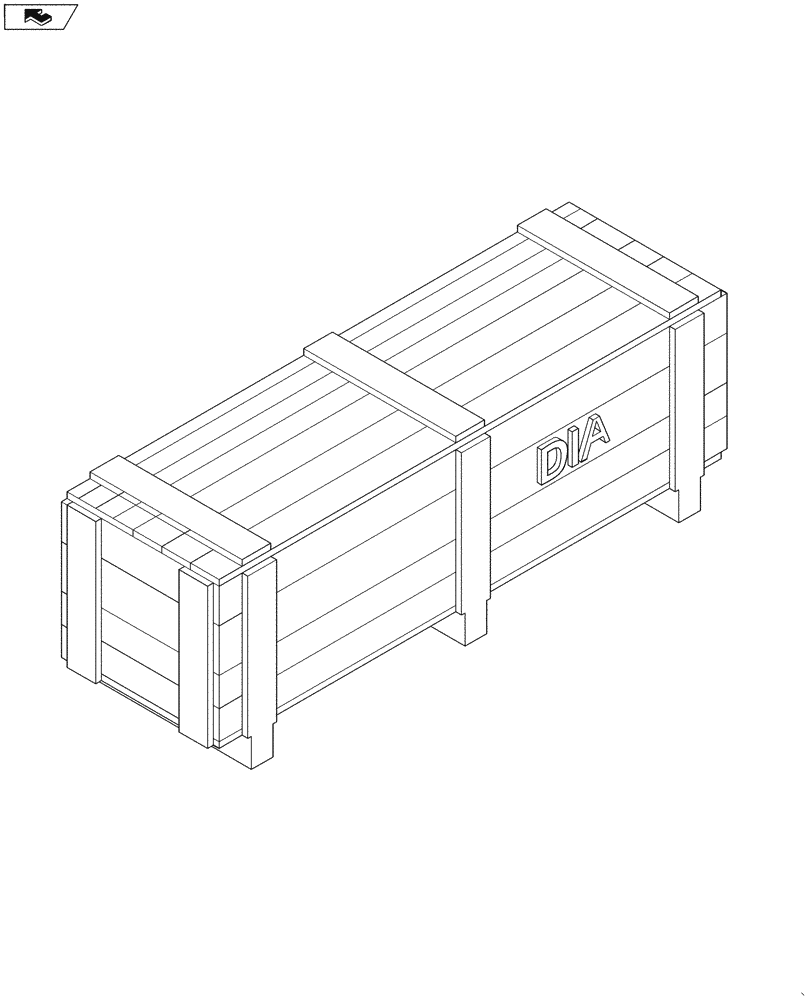

Запчасти Case IH 7120 (88.080.01) - DIA KIT, GRAIN TANK COVER (88) - ACCESSORIES

1

84224864

DIA KIT, HARVESTER

Grain Tank Cover, Incl 2 - 18

1шт.

2

84277888

INSTRUCTION

Kit, Grain Tank Cover

1шт.

3

84162565

DIA KIT, HARVESTER

Cover, Grain Tank 315 Bushel

1шт.

4

87720828

TUBE,2148 mm L

Weld Assembly, Standard Wear Long CNH Dark Gray

1шт.

5

87720826

SUPPORT

Weld Assembly, CNH Dark Gray

1шт.

6

84214452

GROOVED PIN

1шт.

7

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

8

87492568

PROFILE

Weld Assembly, Red

1шт.

9

84187764

COVER

RH Top Case Red

1шт.

10

84185817

PANEL

Weld Assembly, Rear

1шт.

11

87492574

CHANNEL

Weld Assembly, Case Red

1шт.

12

84120348

REINFORCEMENT

Angle, Red

1шт.

13

84177024

REINFORCEMENT

Weld Assembly, Red

1шт.

14

84139792

DIA KIT, HARVESTER

Drawing, Grain Tank Cover, Electric

1шт.

15

84201531

DEFLECTOR

1шт.

16

87485663

COVER

Top

1шт.

17

84121818

GAS STRUT

1шт.

18

87495324

DEFLECTOR

Air Painted

1шт.
