Запчасти Case IH 7120 (80.180.05) - UNLOADING AUGER, HORIZONTAL, 21 FT (6.4M) (80) - CROP STORAGE/UNLOADING

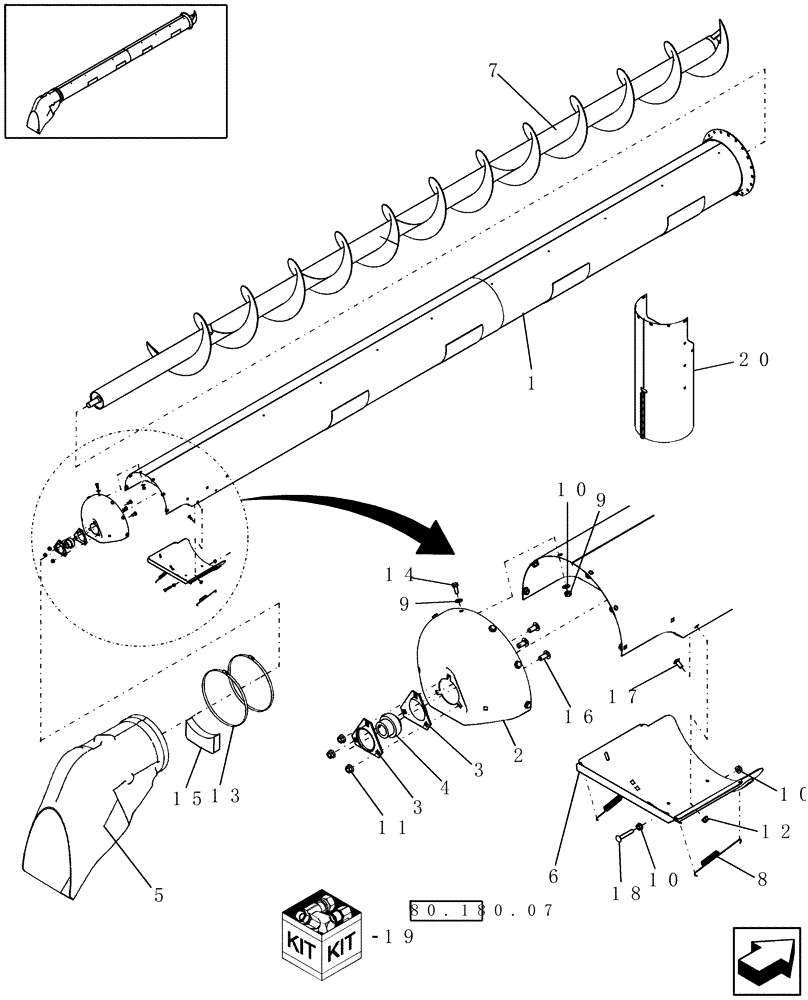

Схема запчастей Case IH 7120 - (80.180.05) - UNLOADING AUGER, HORIZONTAL, 21 FT (6.4M) (80) - CROP STORAGE/UNLOADING
20
15
19
6
7
9
1
13
3
80.180.07
17
14
4
11
10
18
5
12
2
10
16
10
8
3
9

Артикул

Название

Примечание

Количество

1

87743673

TUBE,356mm ID x 5034.7mm OAL

Std & Extended Wear

1шт.

1

87743683

TUBE,5034.7 mm L

Perforated

1шт.

2

87741381

COVER

1шт.

3

86548970

FLANGED BEARING

2шт.

4

87044350

BEARING ASSY,30mm ID x 62mm OD x 18mm W

1шт.

5

84156230

ELBOW

, Serial Range: -Y9G206759

1шт.

5

84219375

SPOUT

DISCHARGE SPOUT, Start Serial: Y9G206759

1шт.

6

84131732

DOOR

Grain Saver

1шт.

7

84447941

AUGER,5400.5mm L

Std Wear & Perforated

1шт.

7

87280339

AUGER,5400.5mm L

Extended Wear

1шт.

8

1338869C2

SPRING,162mm Free Length

2шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

10

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

11

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

12

87681210

FLANGE NUT,M8 x 1.25, Cl 10

2шт.

13

87339347

CLAMP,316mm - 387mm

2шт.

14

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

15

84164168

PLUG

, Serial Range: -Y9G206759

1шт.

15

84219420

PLUG

, Start Serial: Y9G206759

1шт.

16

87682391

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 10.9

3шт.

17

87020310

CARRIAGE BOLT,M8 x 1.25 x 20.8mm, Cl 10.9

2шт.

18

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

1шт.

19

84158659

DIA KIT, HARVESTER

Unloader Vertical Discharge

1шт.

20

84174980

UNLOADING TUBE,361 mm ID x 364 mm OD x 900.2 mm L

Sleeve

1шт.

Unloader Tube Sleeve to Change from End Discharge to Bottom Discharge

1шт.

Выбрано товаров: 25
