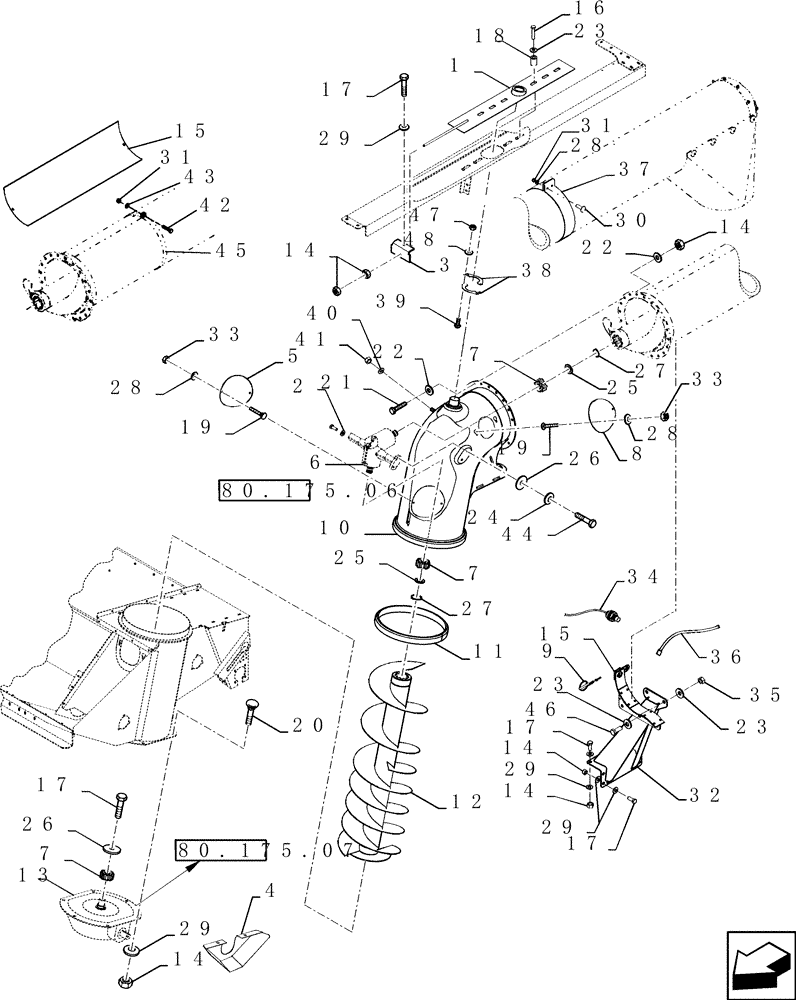

Запчасти Case IH 7120 (80.180.01[01]) - UNLOADING AUGER, VERTICAL - LATIN AMERICA ONLY - 7120, 8120 (80) - CROP STORAGE/UNLOADING

1

86998599

PLATE

Incl Bushing 86584089

1шт.

2

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

3

84072832

BRACKET

1шт.

4

84180152

SHIELD

1шт.

5

87552532

COVER

1шт.

6

87331084

GEARBOX

1шт.

7

87011705

HUB,21T

3шт.

8

87552534

COVER

1шт.

9

87106279

PIN,6.4mm OD

1шт.

10

84171577

ELBOW

1шт.

11

86558526

BUSHING,408mm ID x 440mm OD x 40mm OAL

1шт.

12

87733266

AUGER

Standard & Extended Wear

1шт.

13

84320052

GEARBOX

1шт.

84320052R

REMAN-GEARBOX

7120 (9/08 - 2/12)

1шт.

84320052C

CORE-GEARBOX

Return Number

1шт.

14

9706685

NUT,M12 x 1.75, Cl 8

33шт.

15

87552568

COVER

Perforated Only

1шт.

16

86577946

BOLT,Hex, M16 x 80mm x 10.9

6шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

8шт.

18

87284863

SPACER,38mm OD x 46mm OAL

6шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

21

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

19шт.

22

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

38шт.

23

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

10шт.

24

86585939

BELLEVILLE WASHER,M12 Bolt Size x 32mm OD x 3.5mm Thk

3шт.

25

84072793

WASHER,35.5mm ID x 58mm OD x 5mm Thk

2шт.

26

327084

WASHER,13mm ID x 52mm OD x 5mm Thk

3шт.

27

11068376

SNAP RING,M35, Ext x 1.5 Thk

2шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

29

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

19шт.

30

86512443

CARRIAGE BOLT,Sht Nk, M8 x 35mm, Cl 8.8, Full Thd

2шт.

31

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

32

87552526

SUPPORT ASSY.

1шт.

33

9706690

NUT,M8 x 1.25, Cl 8

4шт.

34

87342073

SENSOR

Unloading Auger Position

1шт.

35

100020

NUT,M16 x 2.0, Cl 8

2шт.

36

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

37

87284878

SECURING BAND

1шт.

38

86598897

SHIM

2шт.

39

300806

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

2шт.

40

100016

NUT,M10 x 1.5, Cl 8

1шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

42

87015731

BOLT,M8 x 1.25 x 55.45mm OAL, Cl 8.8, Full Thd

4шт.

43

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

4шт.

44

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

3шт.

45

87552565

CLAMP,356mm

4шт.

46

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

2шт.

47

86508813

NUT,M5, Cl 8

2шт.

48

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

2шт.
