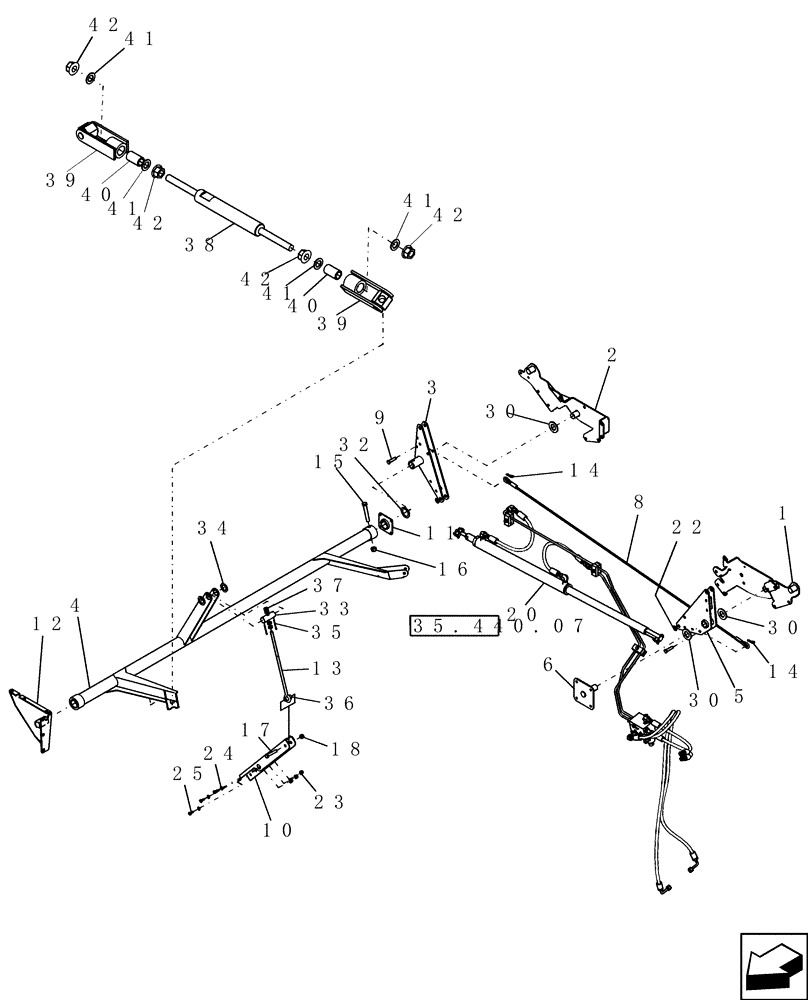

Запчасти Case IH 7120 (80.154.10) - LINKAGE FOR GRAIN TANK COVER - MY2010 - 350 BU AND 315 BU (80) - CROP STORAGE/UNLOADING

1

84186104

BRACKET

Tank Cover L.H. Rear

1шт.

2

84156243

BRACKET

Tank Cover, R.H. Rear

1шт.

3

84185862

HALF-LINK

R.H. Lower, W/ BRG

1шт.

4

84194849

ROCKSHAFT

1шт.

5

84185858

HALF-LINK

Tank Cover L.H. Lower

1шт.

6

87491025

BRACKET

Tank Cover, L.H. Rear

1шт.

8

84187755

CABLE

1шт.

9

728-1255

CLEVIS PIN,M12 x 55mm OAL

2шт.

10

84141618

CHANNEL

1шт.

11

84156236

SUPPORT

1шт.

12

87491002

MOUNT

1шт.

13

84142319

ROD

M12 x 1.75

1шт.

14

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

15

86541970

BOLT,Hex, M16 x 100mm, Cl 10.9

1шт.

16

86000441

NUT,M16 x 2.0, Cl 8

1шт.

17

86505259

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

18

100038

NUT,M12 x 1.75, Cl 8

1шт.

20

NS

NOT SERVICED

1шт.

22

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

2шт.

23

86610200

THREADED INSERT,M8 x 1.25

M8 x 1.25

3шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

25

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

30

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

3шт.

32

87613204

WASHER,1.78" ID x 2.5" OD x 0.12" Thk

1.78" x 2.50" x .119"

1шт.

33

84141615

PIN

1шт.

34

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

2шт.

35

300410

COTTER PIN,M3.2 x 50mm OAL

2шт.

36

84194819

SPACER,13.9mm ID x 21.336mm OD x 41.3mm OAL

1шт.

37

9706685

NUT,M12 x 1.75, Cl 8

4шт.

38

87471197

HALF-LINK

1шт.

39

87479912

COUPLING

2шт.

40

87479913

BRONZE BUSHING,12.6mm ID x 17.9mm OD x 31mm L

2шт.

41

195-83000

WASHER,0.52" ID x 0.88" OD x 0.06" Thk

4шт.

42

9804279

FLANGE NUT,Hex, M12, Cl 8

4шт.
