Запчасти Case IH 7120 (80.150.11[02]) - GRAIN TANK - BOTTOM AND AUGERS - LATIN AMERICA ONLY (80) - CROP STORAGE/UNLOADING

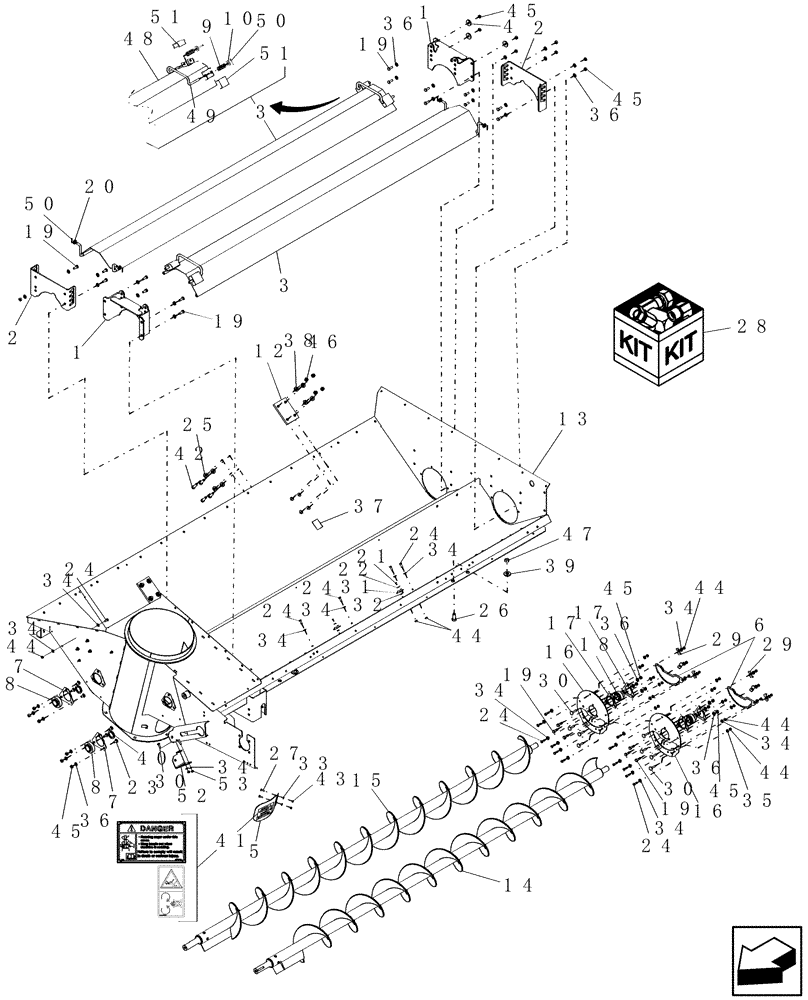

Схема запчастей Case IH 7120 - (80.150.11[02]) - GRAIN TANK - BOTTOM AND AUGERS - LATIN AMERICA ONLY (80) - CROP STORAGE/UNLOADING
24
45
4
50
24
8
1
16
34
2
18
34
1
41
7
40
38
24
34
15
44
45
50
45
21
49
29
43
29
19
17
19
36
26
30
13
51
24
36
19
7
24
31
8
33
9
36
52
34
27
24
34
39
25
28
34
14
19
37
30
34
12
44
32
44
36
6
45
34
45
23
42
47
30
2
17
16
53
20
3
34
44
36
44
3
19
46
34
5
35
22
51
10
48

Артикул

Название

Примечание

Количество

1

86975993

BRACKET

Supporting

2шт.

2

86975994

BRACKET

Supporting

2шт.

3

86975412

COVER

Assy, Includes Refs, Serial Range: 48-53

2шт.

4

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3шт.

5

87583787

DOOR

With Latch & Decal

1шт.

6

87342513

COVER

2шт.

7

86620026

FLANGED BEARING

4шт.

8

87605592

BALL BEARING,35mm ID x 72mm OD x 19mm W

2шт.

9

80025823

SPRING,63.5mm Free Length

Guard And Lock

4шт.

10

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

11

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

12

87665292

PLATE

2шт.

13

87668047

TANK

Bottom, W/Decals

1шт.

For Use W/Mechanical Unload Drive

1шт.

13

84182582

TANK

Bottom, W/Decals

1шт.

For Use W/Hydraulic Unload Drive

1шт.

14

87684700

AUGER

Rear

1шт.

14

87280343

AUGER

Rear, EXT Wear

1шт.

15

87684971

AUGER

Front

1шт.

15

87280345

AUGER

Front, EXT Wear

1шт.

16

87342517

BEARING COVER

Plate, Bearing

2шт.

17

84320112

FLANGE

Flange

2шт.

18

84069440

BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm

2шт.

19

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

17шт.

20

86624146

WASHER,0.53" ID x 1" OD x 0.12" Thk

4шт.

21

445394

RIVET,Pop, 3/16" x 1/2" OAL

2шт.

22

362785

BELLEVILLE WASHER,5.5mm ID x 15mm OD x 0.5mm Thk

2шт.

23

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

7шт.

24

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

22шт.

25

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

8шт.

26

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

6шт.

27

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

28

87753014

DIA KIT, HARVESTER

Grain Tank Sump Unload Wear, Includes 4 Plates and Instruction Sheet

1шт.

29

425093

CLAMP

6шт.

30

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

11шт.

31

362786

FASTENER

2шт.

32

140015

WASHER,6.4mm ID x 14mm OD x 1.6mm Thk

2шт.

33

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

34

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

35

86588500

WASHER,9mm ID x 16mm OD x 2mm Thk

6шт.

36

412655

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.6mm Thk

11шт.

37

449973

DECAL

1шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

39

86589278

BELLEVILLE WASHER,17mm ID x 41.5mm OD x 4.5mm Thk

6шт.

40

84075099

WASHER,36mm ID x 51mm OD x 6mm Thk

2шт.

41

84004736

DANGER DECAL

1шт.

42

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

8шт.

43

9706755

NUT,M6, Cl 8

1шт.

44

9706690

NUT,M8 x 1.25, Cl 8

28шт.

45

100016

NUT,M10 x 1.5, Cl 8

1шт.

46

9706685

NUT,M12 x 1.75, Cl 8

8шт.

47

100020

NUT,M16 x 2.0, Cl 8

6шт.

48

87284631

COVER

2шт.

49

86975418

HANDLE

2шт.

50

130004

COTTER PIN,2.9mm OD x 31.4mm OAL

8шт.

51

86976481

COVER

4шт.

52

84178875

BRACKET

1шт.

53

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

Выбрано товаров: 58
