Запчасти Case IH 7120 (80.101.19) - BOTTOM BOOT, CLEAN GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING

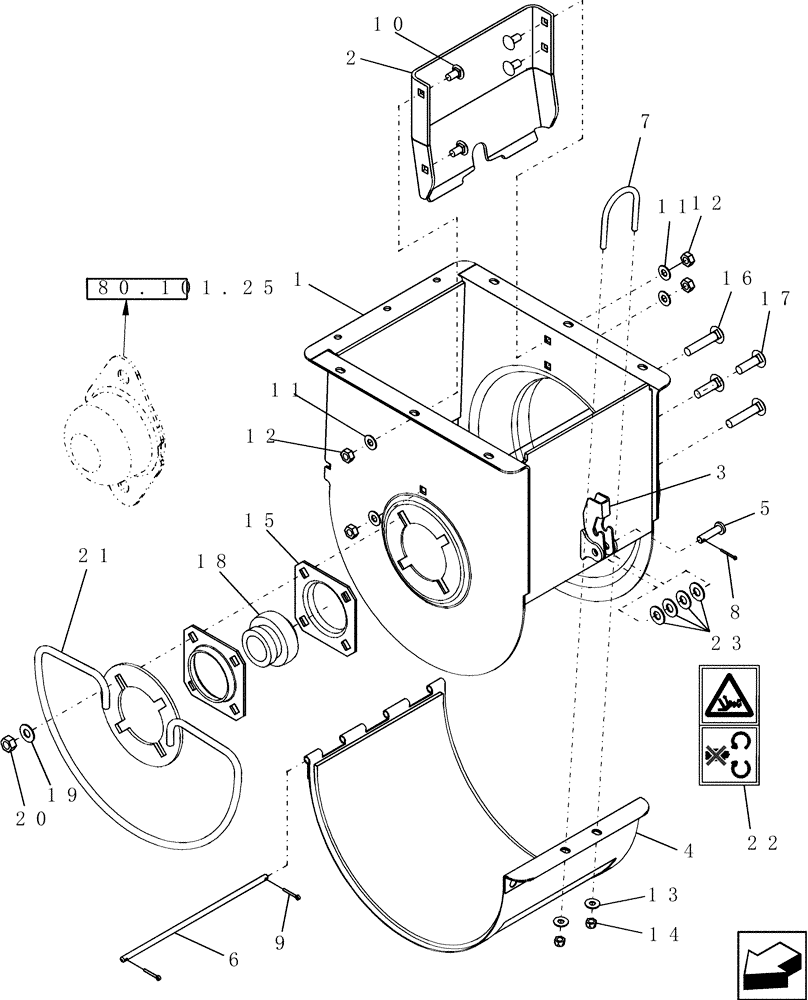

Схема запчастей Case IH 7120 - (80.101.19) - BOTTOM BOOT, CLEAN GRAIN ELEVATOR (80) - CROP STORAGE/UNLOADING
7
11
2
12
18
10
14
1
11
3
15
6
17
80.101.25
9
8
21
12
19
16
13
4
22
23
5
20

Артикул

Название

Примечание

Количество

1

87510515

BOOT

Boot with Decal, NA and LA, Years: -01-SEP-09

1шт.

1

87284082

BOOT

with decal, EU Only, Years: -01-SEP-09, Serial Range: -Y9G207650

1шт.

1

84194821

BOOT

with Decal, NA and LA, MY10, Start Serial: Y9G207650

1шт.

1

84194822

BOOT

with Decal, EU Only, MY10, Start Serial: Y9G207650

1шт.

2

87282158

PLATE

PLATE, Strip Off

1шт.

3

86581559

HANDLE

1шт.

4

87282576

DOOR

Perf Cover W/ Decal

1шт.

4

87282183

DOOR

Non- Perf

1шт.

5

9507095

CLEVIS PIN,10mm OD x 40mm L

1шт.

6

86998877

PIN

1шт.

7

84989315

U-BOLT,M8 x 1.25 x 26mm Threaded x 63.5mm W x 90.4mm OAL

1шт.

8

280251

COTTER PIN,3/32" OD x 1" OAL

1шт.

9

80755

COTTER PIN,1/8" OD x 1" L

2шт.

10

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

13

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

14

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

15

1307583C1

FLANGED BEARING

Bearing

2шт.

16

412097

CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

2шт.

17

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

18

87605593

BEARING ASSY,40mm ID x 80mm OD x 22mm W

1шт.

19

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

20

9706685

NUT,M12 x 1.75, Cl 8

4шт.

21

NS

NOT SERVICED

GUARD - GERMANY Only

1шт.

22

84004734

WARNING DECAL

Do Not Open or Remove Safety Shields while Engine is Running

1шт.

23

140042

WASHER,11mm ID x 34mm OD x 3mm Thk

4шт.

Выбрано товаров: 27
