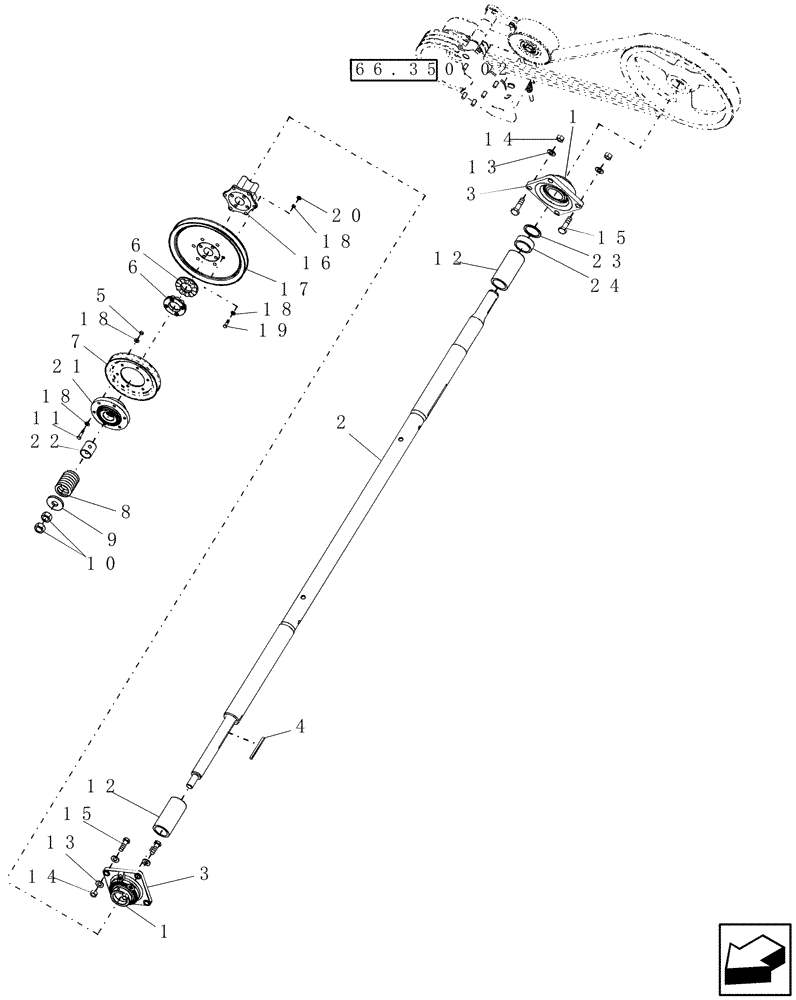

Запчасти Case IH 7120 (66.350.03[01]) - BEATER DRIVES - 7120/7120(LA) (66) - THRESHING

1

NSS

NOT SOLD SEPARAT

BEARING

2шт.

2

87394733

SHAFT ASSY.

1шт.

3

87109088

BEARING ASSY

2шт.

Please see Figure Note

1шт.

4

86997578

KEY,10mm W x 94.2mm OAL x 8mm Thk

Retaining

1шт.

5

9706690

NUT,M8 x 1.25, Cl 8

7шт.

6

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

2шт.

7

86999341

PULLEY,218mm OD

Drive, Tailing

1шт.

8

420927

SPRING,110mm Free Length

1шт.

9

86997063

GROOVED BUSHING,50.04mm ID x 94.49mm OD x 20.83mm Thk

1шт.

10

9848973

NUT,M24 x 3.0, Cl 10

2шт.

11

412479

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

7шт.

12

87397716

BUSHING

2шт.

13

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

14

392530

NUT,M16, Cl 10

8шт.

15

9845488

BOLT

Rd Hd, Short Neck, CL 10.9, M16 x 50

8шт.

16

87011488

HUB,40.02mm ID x 110.8mm Thk

1шт.

17

84128455

PULLEY ASSY.

Single Speed

1шт.

Shown

1шт.

17

86999007

PULLEY,335mm OD

Two Speed (Double Pulley)

1шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

24шт.

19

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

20

43362

NUT,M8 x 1.25, Cl 10

6шт.

21

87282507

HUB

Plated

1шт.

22

86997496

BUSHING,40.09mm ID x 44.09mm OD x 50mm L

1шт.

23

87397720

SHIM

1шт.

24

87397718

BUSHING

1шт.
