Запчасти Case IH 7120 (66.320.02[02]) - ROTOR VARIATOR - 9120 (66) - THRESHING

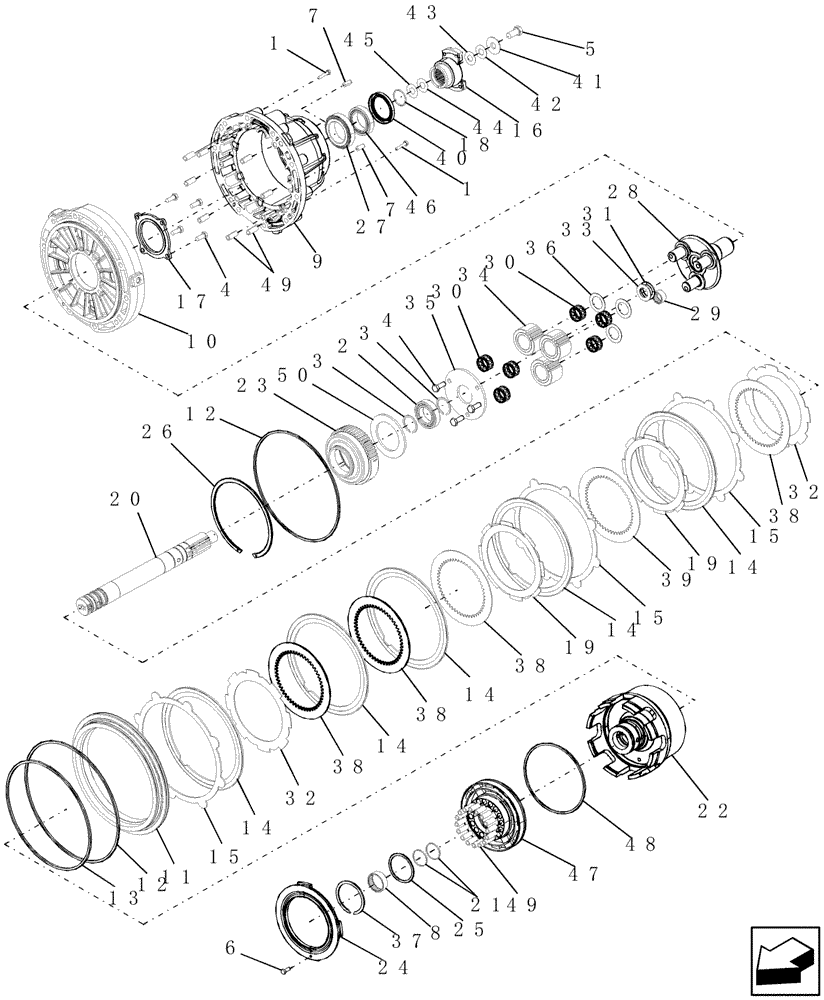

Схема запчастей Case IH 7120 - (66.320.02[02]) - ROTOR VARIATOR - 9120 (66) - THRESHING
47
7
37
45
46
8
32
27
30
5
29
7
28
20
39
38
38
43
32
3
10
24
15
33
13
3
22
18
15
41
4
49
16
14
40
11
15
38
4
31
12
14
49
12
50
26
48
36
14
38
42
19
9
14
35
21
19
6
1
23
2
17
25
14
1
44
34
30

Артикул

Название

Примечание

Количество

1

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

2шт.

2

A75193

BALL BEARING,1.5748" ID x 2.6882" OD x 0.5906" Thk

1шт.

3

87281477

SNAP RING

2шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

7шт.

5

86637960

BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9

1шт.

6

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

7

86978768

DOWEL,M12 x 30mm L

2шт.

8

86996784

NEEDLE BEARING,39.99mm ID x 46.98mm OD x 15.85mm W

1шт.

9

87281492

HOUSING

Front

1шт.

10

86999536

PLATE

Center

1шт.

11

87281427

PISTON

Reverse

1шт.

12

87281428

RING

2шт.

13

87281429

RING

1шт.

14

87281430

CLUTCH DRIVING PLATE

5шт.

15

87281431

CLUTCH PLATE,216mm ID x 241mm OD x 2.4mm Thk

6шт.

16

87640688

YOKE

1шт.

17

87281434

RETAINER

1шт.

18

66805

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1шт.

19

375529A1

CLUTCH DISC

CLUTCH DISK

4шт.

20

87640685

SHAFT ASSY.

Rotor Variator Sun

1шт.

21

87587474

SEALING RING

SEALRING

2шт.

22

87640686

GEAR

Ring

1шт.

23

87281445

HUB

Drive

1шт.

24

87281446

PLATE

End

1шт.

25

87281447

RING,64.7mm ID x 71.3mm OD x 2.1mm Thk

1шт.

26

87281501

SNAP RING

1шт.

27

225805A1

BEARING ASSY,60mm ID x 95mm OD x 23mm W

1шт.

28

87640687

SHAFT ASSY.

Output

1шт.

29

87678416

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 16mm W

1шт.

30

87281504

NEEDLE BEARING,32mm ID x 38mm OD x 20mm W

6шт.

31

87281505

THRUST BEARING,30mm ID x 47mm OD x 2.8mm Thk

1шт.

32

375528A1

CLUTCH DISC

CLUTCH DISK

2шт.

33

87281507

THRUST WASHER

1шт.

34

87281450

PLANETARY GEAR

25 T

3шт.

35

87281451

PLATE WASHER

1шт.

36

87281508

THRUST WASHER

3шт.

37

428163A1

RING, SNAP

RING SNAP

1шт.

38

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK

1шт.

39

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK

1шт.

40

S8820S00F

OIL SEAL

1шт.

41

S8860S00F

THRUST WASHER

1шт.

42

S9950S00F

SHIM,0.1mm Thk

(0.10 mm)

1шт.

43

S9960S00F

SHIM,0.31mm Thk

(0.30 mm)

1шт.

44

S9970S00F

SHIM,0.51mm Thk

(0.51 mm)

1шт.

45

S9980S00F

SHIM,0.71mm Thk

(0.7 mm)

1шт.

46

427662A1

TAPERED BEARING

1шт.

47

352833A1

PISTON

1шт.

48

87431391

RING

1шт.

49

352828A1

SPRING

Return

24шт.

50

352827A1

PLATE

1шт.

Выбрано товаров: 50
