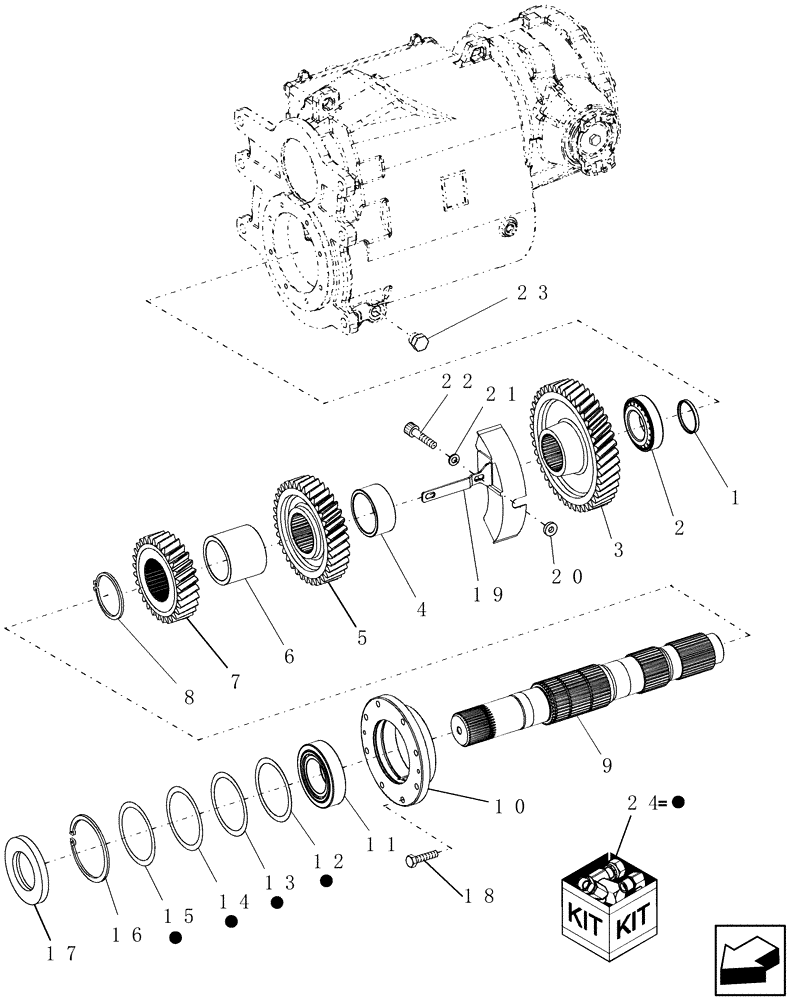

Запчасти Case IH 7120 (66.260.26) - OUTPUT SHAFT & GEARS, ROTOR GEARBOX (66) - THRESHING

1

87280587

PLUG

1шт.

2

87280588

BEARING ASSY,55mm ID x 100mm OD x 26.75mm W

1шт.

3

87280589

GEAR

Driven

1шт.

4

87280590

SPACER

1шт.

5

87280591

GEAR

Driven

1шт.

6

87280592

SPACER

1шт.

7

87684678

GEAR

Driven

1шт.

8

800-5180

SNAP RING,M80 x 3mm Thk, External

External

1шт.

9

87280595

SHAFT

Output

1шт.

10

87280597

PLATE ASSY.

Bearing

1шт.

11

87281035

BEARING ASSY,65mm ID x 120mm OD x 32.75mm W

1шт.

12

87033543

SHIM,100mm ID x 120mm OD x 0.5mm Thk

0.50

1шт.

13

87033542

SHIM,100mm ID x 120mm OD x 0.3mm Thk

0.30

1шт.

14

87033541

SHIM,100mm ID x 120mm OD x 0.15mm Thk

0.15

1шт.

15

87033538

SHIM,100mm ID x 120mm OD x 0.1mm Thk

0.10

1шт.

16

412270

SNAP RING,M120 x 4mm Thk, Internal

Internal

1шт.

17

87020821

OIL SEAL,65mm ID x 120mm OD x 10mm Thk

1шт.

18

86625011

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

8шт.

19

87280599

WRAPPER

WRAPPER

1шт.

20

87281116

SPACER

1шт.

21

86625252

WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk

2шт.

22

86625209

HEX SOC SCREW,M10 x 35mm, Cl 12.9

2шт.

23

87108781

PLUG

Magnetic, M22

1шт.

24

87281006

SHIM KIT

1шт.
