Запчасти Case IH 7120 (60.150.01) - GEARBOX, FEEDER/HEADER, W/PTO (60) - PRODUCT FEEDING

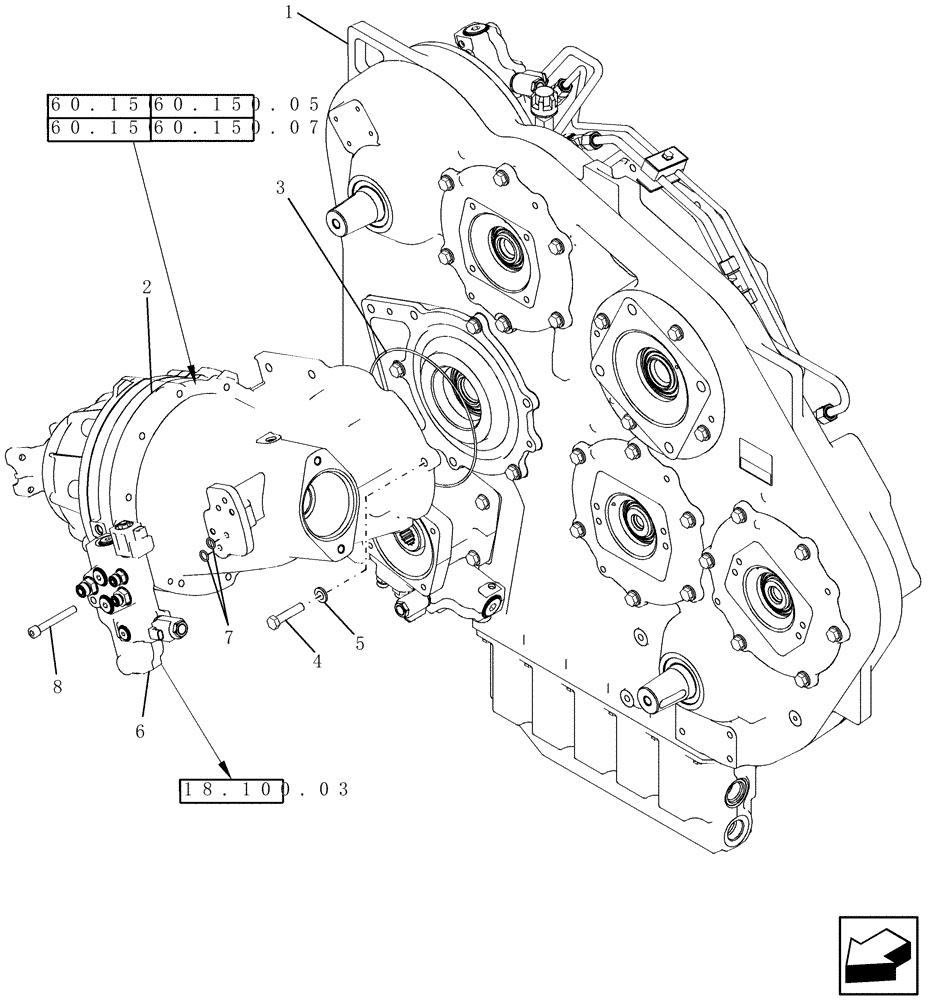

Схема запчастей Case IH 7120 - (60.150.01) - GEARBOX, FEEDER/HEADER, W/PTO (60) - PRODUCT FEEDING
5
18.100.03
6
60.150.05
60.150.07
60.150.06
3
60.150.04
4
1
8
2
7

Артикул

Название

Примечание

Количество

1

87643500

PTO

Gearbox

1шт.

7120 & 8120 Only

1шт.

1

87643500R

REMAN-PTO GEARBOX A.

7120 (9/08-2/12), 8120 (9/08-), Both AXIAL-FLOW COMBINE, Gearbox, W/PTO

1шт.

1

87643500C

CORE-PTO GEARBOX A.

Return Number

1шт.

1

87705371

PTO

Gearbox

1шт.

9120 Only

1шт.

1

87705371R

REMAN-PTO GEARBOX A.

9120 AXIAL-FLOW COMBINE, W/PTO (9/08-)

1шт.

1

87705371C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

86998844

GEARBOX

Variable Speed, Feeder/Header

1шт.

2

86998844R

REMAN-TRANSMISSION

Variable Speed, Feeder/Header

1шт.

2

86998844C

CORE-TRANSMISSION

Return number

1шт.

2

86998845

GEARBOX

Fixed Speed, Feeder/Header

1шт.

2

86998845R

REMAN-TRANSMISSION

Fixed Speed, Feeder/Header

1шт.

2

86998845C

CORE-TRANSMISSION

Return Number

1шт.

3

238-5269

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

4

87015724

BOLT,M12 x 1.75 x 62.68mm OAL, Cl 10.9

5шт.

5

87016609

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

5шт.

6

86981235

CONTROL VALVE

Variable Speed, Feeder / Header

1шт.

6

87447038

CONTROL VALVE

Fixed Speed, Feeder / Header

1шт.

7

86637641

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

4шт.

8

84056630

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.

Выбрано товаров: 21
