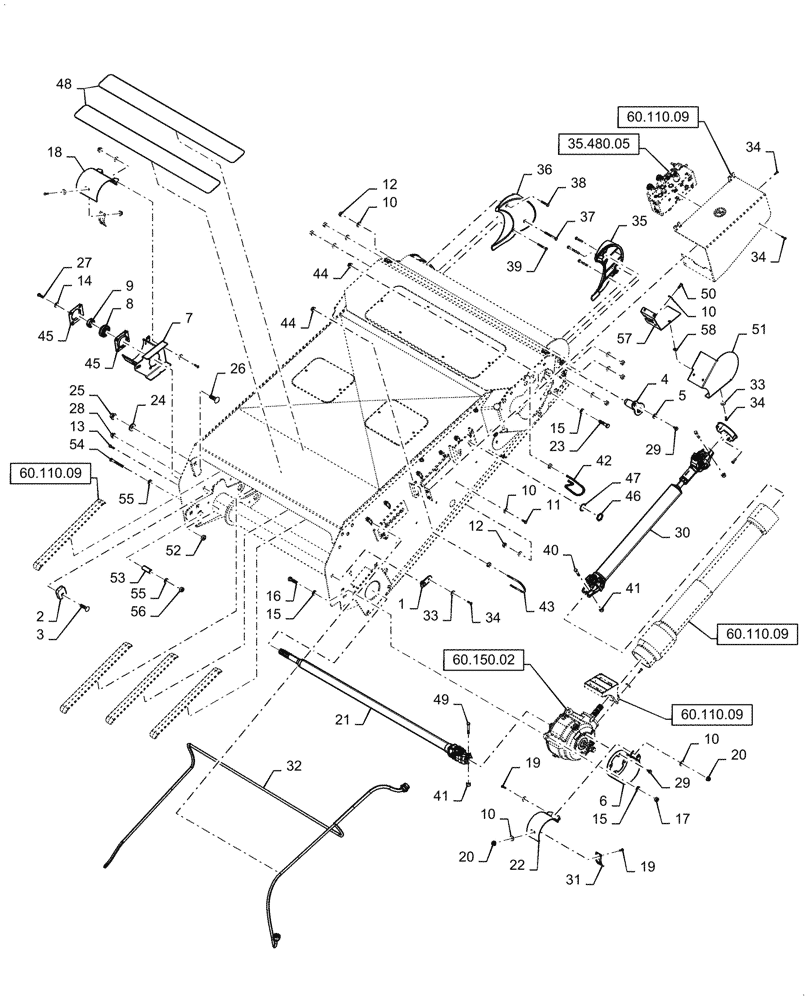

Запчасти Case IH 7120 (60.110.08) - FEEDER FRAME (60) - PRODUCT FEEDING

1

87106719

BRACKET

Pivot

2шт.

2

87282452

PLATE

Support

2шт.

3

87281691

BOLT,Special Bolt, M16 x 2 x 68.9mm OAL 10mm W Flat

2шт.

4

87281673

PIN,44mm OD x 127mm L

2шт.

5

86592700

WASHER,10.5mm ID x 28mm OD x 4mm Thk

2шт.

6

87108951

SHIELD

LH

1шт.

7

87108942

SHIELD

RH

1шт.

8

86575514

BALL BEARING,34.92mm ID x 80mm OD x 24.3mm W

1шт.

9

45393

COLLAR

Bearing

1шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

81шт.

11

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

24шт.

12

100016

NUT,M10 x 1.5, Cl 8

30шт.

13

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

14

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

15

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

12шт.

16

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

4шт.

17

100020

NUT,M16 x 2.0, Cl 8

4шт.

18

87108949

SHIELD

RH

1шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

20

87681210

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

21

86999167

SHAFT

Feeder Jackshaft

1шт.

22

87108944

SHIELD

LH

1шт.

23

120092

BOLT,M16 x 70mm, Cl 8.8

4шт.

24

86592703

WASHER,21mm ID x 50mm OD x 6mm Thk

14шт.

25

86512499

FLANGE NUT,M20 x 2.5, Cl 10

14шт.

26

86981478

CARRIAGE BOLT,M20 x 70.9mm, Cl 10.9

14шт.

27

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.

28

86512498

FLANGE NUT,M16 x 2, Cl 10

2шт.

29

87698835

FLANGE BOLT,M10 x 20mm, Full Thd, Cl 10.9

6шт.

30

86999166

SHAFT

Conveyor Jackshaft

1шт.

31

86638316

LATCH

Plated

1шт.

32

84194265

WIRE HARNESS

Feeder, Start Serial: Y9G207118

1шт.

32

84158599

WIRE HARNESS

Feeder, Serial Range: -Y9G207118

1шт.

32

84294488

WIRE HARNESS

Feeder, Start Serial: YAG209951

1шт.

33

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

34

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

5шт.

35

87662508

DEFLECTOR

LH

1шт.

36

87662509

DEFLECTOR

RH

1шт.

37

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

38

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

2шт.

39

83931335

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

40

87021759

BOLT,M12 x 1.75 x 60mm, Cl 10.9

4шт.

41

87021758

NUT,M12 x 1.75, Cl 10

5шт.

42

87283141

RETAINING WIRE

Shaft Shroud

1шт.

43

87108395

U-BOLT,M8 x 1.25, 145mm OAL x 95mm W

1шт.

44

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

8шт.

45

86974037

FLANGE

Bearing

2шт.

46

86619907

NUT,1.6875"-18

1шт.

47

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

48

86995792

PAD,125mm W x 1270mm L

2шт.

49

87301326

BOLT,M12 x 1.75 x 82.68mm, Cl 10.9

1шт.

50

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

8шт.

51

84354290

PROTECTION PLATE

Shield

1шт.

52

86500689

NUT,M10 x 1.5, Cl 10

2шт.

53

87484408

SPACER,12.9mm ID x 25.4mm OD x 65.5mm L

2шт.

54

9501756

BOLT,Hex, M12 x 1.75 x 110mm, Cl 10.9

2шт.

55

87376144

WASHER,13mm ID x 28mm OD x 5mm Thk

4шт.

56

337475

NUT,M12, Cl 10

2шт.

57

84354292

BRACKET

Bearing

1шт.

58

86508354

PUSH-ON NUT,M8 x 1.25

3шт.
