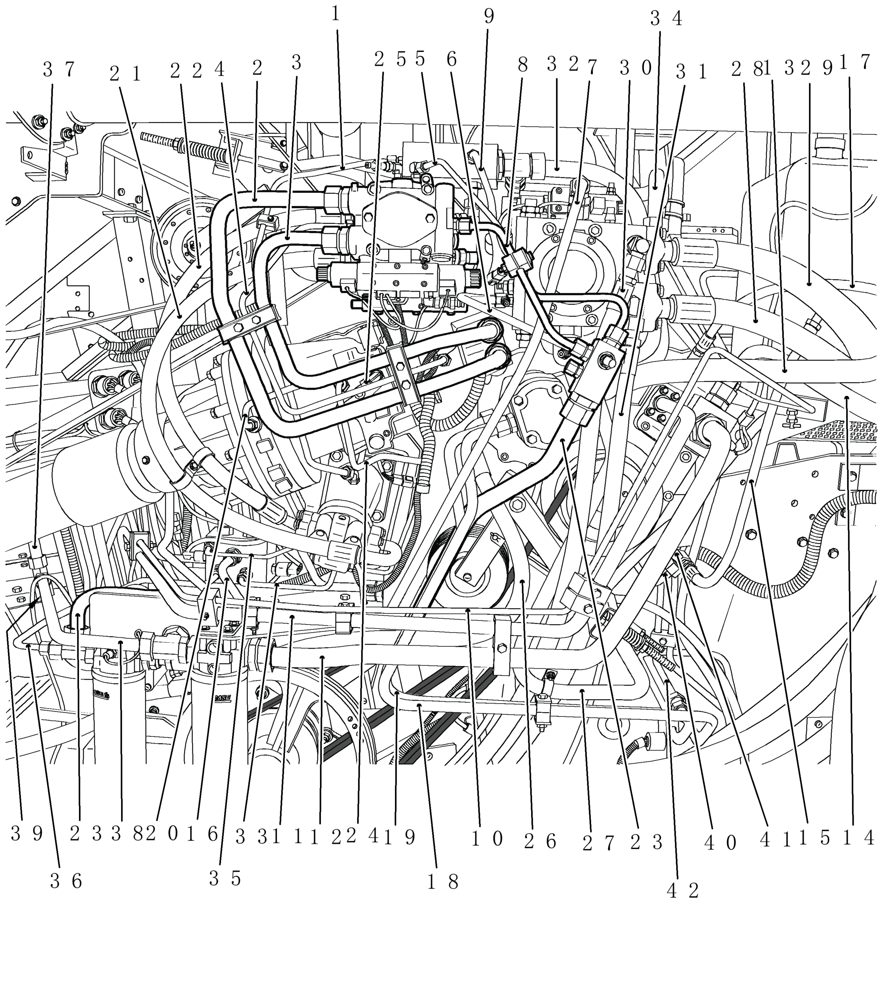

Запчасти Case IH 7120 (00.000.35[02]) - PICTORIAL INDEX - HYDRAULICS, ENGINE GEARBOX (00) - GENERAL & PICTORIAL INDEX

1

87587907

HYD TUBE,0.5" OD

Fig. 41.203.01, Ref. 22

1шт.

2

87587892

HYD TUBE,1" OD

Fig. 35.204.01, Ref. 12

1шт.

3

87587898

HYD TUBE,1" OD

Fig. 35.204.01, Ref. 13

1шт.

4

87587899

HYD TUBE,0.5" OD

Fig. 35.204.01, Ref. 14

1шт.

5

87709559

HYD TUBE,0.5" OD

Fig. 41.203.01, Ref. 12

1шт.

6

84131660

TUBE ASSY.

Fig. 41.203.01, Ref. 11

1шт.

7

87641636

HYD TUBE,0.75" OD

Fig. 41.203.01, Ref. 17

1шт.

8

87709560

HYD TUBE

Fig. 35.204.01, Ref. 28

1шт.

9

87686069

HOSE ASSY.

Fig. 35.201.01, Ref. 23

1шт.

10

87284930

HYD TUBE,0.375" OD

Fig. 41.203.02, Ref. 8

1шт.

11

87721406

TUBE,1" OD

Fig. 41.203.02, Ref. 4

1шт.

12

84157589

HYD TUBE,38 mm OD

Fig. 41.203.02, Ref. 9

1шт.

13

86999153

FLEXIBLE HOSE

Fig. 35.300.09 (02) Ref. 9

1шт.

14

86999154

FLEXIBLE HOSE

Fig. 35.300.09 (02), Ref. 8

1шт.

15

87109746

FLEXIBLE HOSE

Fig. 35.300.01 (01), Ref. 23

1шт.

16

87657698

HYD TUBE,0.75" OD

Fig. 41.203.02, Ref. 6

1шт.

17

86999156

FLEXIBLE HOSE

Fig. 35.300.09 (02), Ref. 7

1шт.

18

87284932

HYD TUBE,0.75" OD

Fig. 35.300.01 (01), Ref. 2

1шт.

19

87482034

HYD TUBE,0.75" OD

Fig. 35.300.01 (01), Ref. 3

1шт.

20

86995995

HYD TUBE,0.375" OD

Fig. 35.201.01, Ref. 19

1шт.

21

87314311

FLEXIBLE HOSE,19mm ID x 1200mm L

Fig. 41.203.01, Ref. 21

1шт.

22

87314312

FLEXIBLE HOSE

Fig. 41.203.01, Ref. 20

1шт.

23

87670280

HYD TUBE,32 mm OD x 538.5 mm L

Fig. 41.203.02, Ref. 5

1шт.

24

86995885

HYD TUBE,0.50" OD

Fig. 41.203.01, Ref. 18

1шт.

25

86995872

HYD TUBE,0.375" OD

Fig. 41.203.01, Ref. 19

1шт.

26

87283082

FLEXIBLE HOSE

Fig. 41.203.02, Ref. 2

1шт.

27

87563478

HYD TUBE,1.25" OD

Fig. 41.203.01, Ref. 53

1шт.

28

87644755

HOSE ASSY.,31.5mm ID x 5400mm L

Fig.29.204.05, Ref. 2

1шт.

29

87644755

HOSE ASSY.,31.5mm ID x 5400mm L

Fig. 29.204.05, Ref. 2

1шт.

30

87644662

FLEXIBLE HOSE,19.05mm ID x 4400mm L, SAE 100R15

Fig. 44.200.29, Ref. 5

1шт.

31

87644661

HOSE ASSY.,19.05mm ID x 4265mm L, SAE 100R15

Fig. 44.200.09, Ref. 4

1шт.

32

87703253

TUBE,1.25" OD

Fig. 41.203.01, Ref. 13

1шт.

33

84176035

HOSE ASSY.

Fig. 35.300.01 (02), Ref. 8

1шт.

34

87641633

HYD TUBE,1.25" OD

Fig. 41.203.01, Ref. 16

1шт.

35

87657700

HYD TUBE,.375" OD

Fig. 35.300.01 (02), Ref. 34

1шт.

36

87657697

HYD TUBE,0.5" OD

Fig. 41.203.02, Ref. 7

1шт.

37

86995869

HYD TUBE,1" OD

Fig. 21.102.02, Ref. 14

1шт.

38

86995867

HYD TUBE,1" OD

Fig. 35.201.11, Ref. 4

1шт.

39

86995864

HYD TUBE,1" OD

Fig. 35.204.11, Ref. 3

1шт.

40

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

Fig 35.752.03 (02), Ref. 23

1шт.

41

87000880

HYD TUBE,10 mm OD x 1605, 220.6 mm L

Fig. 35.910.03 (01) & (02), Ref. 17

1шт.

42

87105711

HYD TUBE,0.75" OD

Fig. 35.910.03 (01) & (02), Ref. 15

1шт.
