Запчасти Case IH 7120 (55.440.12) - GPS MOUNT (55) - ELECTRICAL SYSTEMS

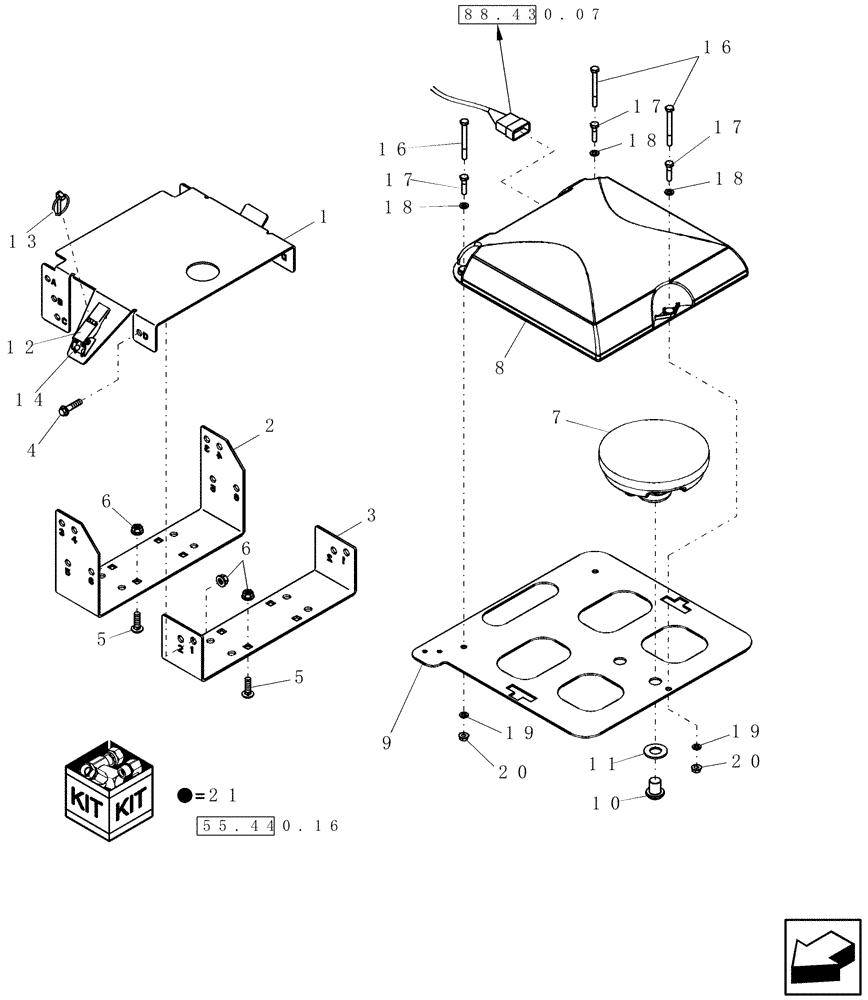

Схема запчастей Case IH 7120 - (55.440.12) - GPS MOUNT (55) - ELECTRICAL SYSTEMS
17
19
19
18
4
16
1
21
2
5
7
11
13
5
12
55.440.16
88.430.07
8
3
20
6
17
14
17
9
20
18
10
18
6
16

Артикул

Название

Примечание

Количество

1

87488331

BRACKET

252 Receiver Mount With Latch

1шт.

2

87335677

BRACKET

Long

1шт.

3

87335635

BRACKET

Short

1шт.

4

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

4шт.

5

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

4шт.

6

86507066

FLANGE NUT,M8 x 1.25, Cl 10

8шт.

7

87491749

ANTENNA

AFS 162, Start Serial: Y9G207726

1шт.

7

87491749R

REMAN ELECT CONTROL

7120 (9/08-2/12), 8120, 9120, Both (9/08-), All AXIAL-FLOW COMBINE, AFS 162, Start Serial: Y9G207726

1шт.

7

87491749C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87595761

KIT

RECEIVER, AFS262 /WAAS/EGNOS/VBS; Includes: Receiver, Mounting Plate & Hardware, Serial Range: -Y9G207726

1шт.

8

84148119

MODULE

AFS262 /WAAS/EGNOS/VBS; Receiver Only

1шт.

8

84574271R

REMAN ELECT CONTROL

7120 (9/08-2/12), 8120, 9120, Both (9/08-), All AXIAL-FLOW COMBINE, AFS262 /WAAS/EGNOS/VBS, Receiver Only , Reman for New PN 84148119

1шт.

8

84574271C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

87369143

KIT

RECEIVER, AFS262 WAAS/OMNISTAR - WAAS/VBS/HP/XP; Includes: Receiver, Mounting Plate & Hardware

1шт.

8

84588269R

REMAN ELECT CONTROL

8120, 9120, Both (9/08-), 7120 (9/08-2/12), All AXIAL-FLOW COMBINE, RECEIVER, AFS262 WAAS/OMNISTAR - WAAS/VBS/HP/XP, Reman for New PN 87369143

1шт.

8

84588269C

CORE-ELECTRONIC CONT

Return Number

1шт.

8

84148115

MODULE

AFS262 WAAS/OMNISTAR - WAAS/VBS/HP/XP; Receiver Only

1шт.

8

84574273R

REMAN ELECT CONTROL

7120 (9/08-2/12), 8120, 9120, Both (9/08-), All AXIAL-FLOW COMBINE, AFS262 WAAS/OMNISTAR - WAAS/VBS/HP/XP; Receiver Only , Reman for New 84148115

1шт.

8

84574273C

CORE-ELECTRONIC CONT

Return Number

1шт.

9

87496985

MOUNTING PLATE

1шт.

10

87106351

HEX SOC SCREW,BTN HD, 5/8" - 11 x 3/4"

To Mount AFS162

1шт.

11

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

12

87308870

LATCH

1шт.

13

87109290

LOCK PIN,25.4mm OD x 30mm L

1шт.

14

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.

16

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

17

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

18

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

19

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

20

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

21

84150838

ANTENNA

AFS162

1шт.

Выбрано товаров: 31
