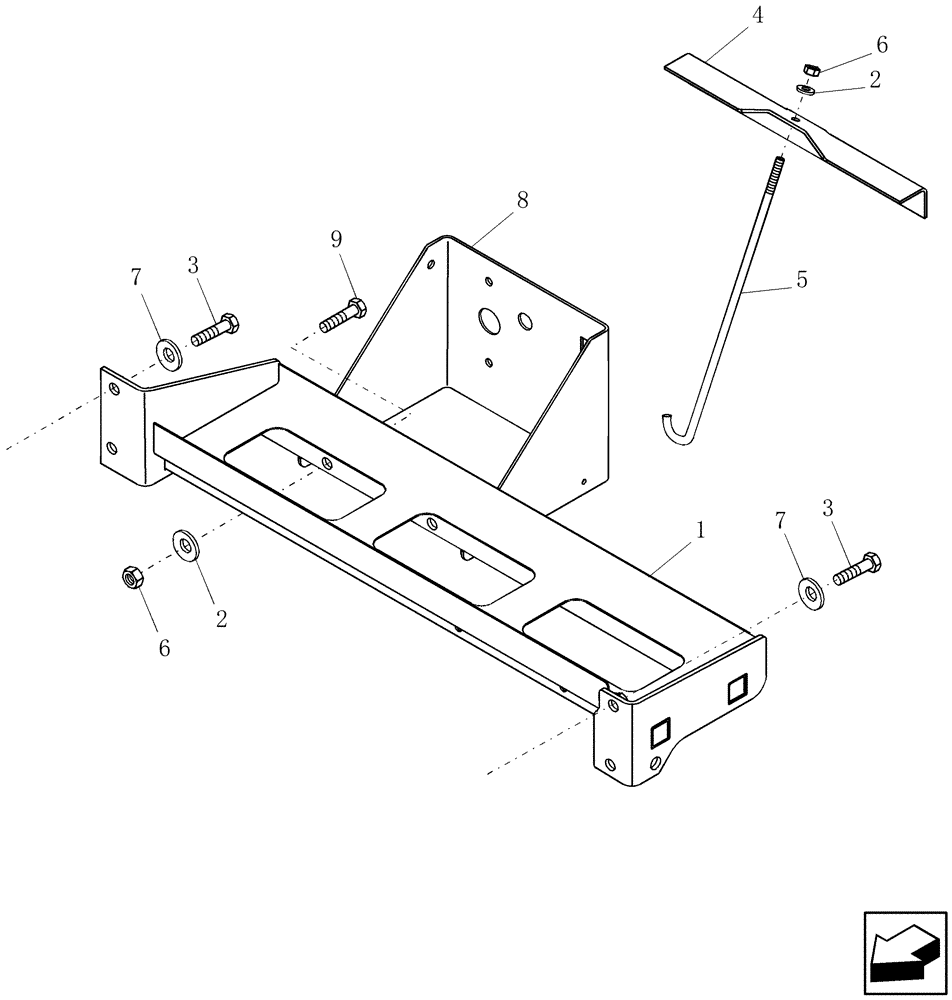

Запчасти Case IH 7120 (55.301.05) - BATTERY TRAY (55) - ELECTRICAL SYSTEMS

1

87282073

BATTERY TRAY

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

3

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

4

87109059

BRACKET

CLAMPING PART

1шт.

5

87109057

BOLT

1шт.

6

9706690

NUT,M8 x 1.25, Cl 8

3шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

87749891

SHIELD

1шт.

9

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

2шт.
