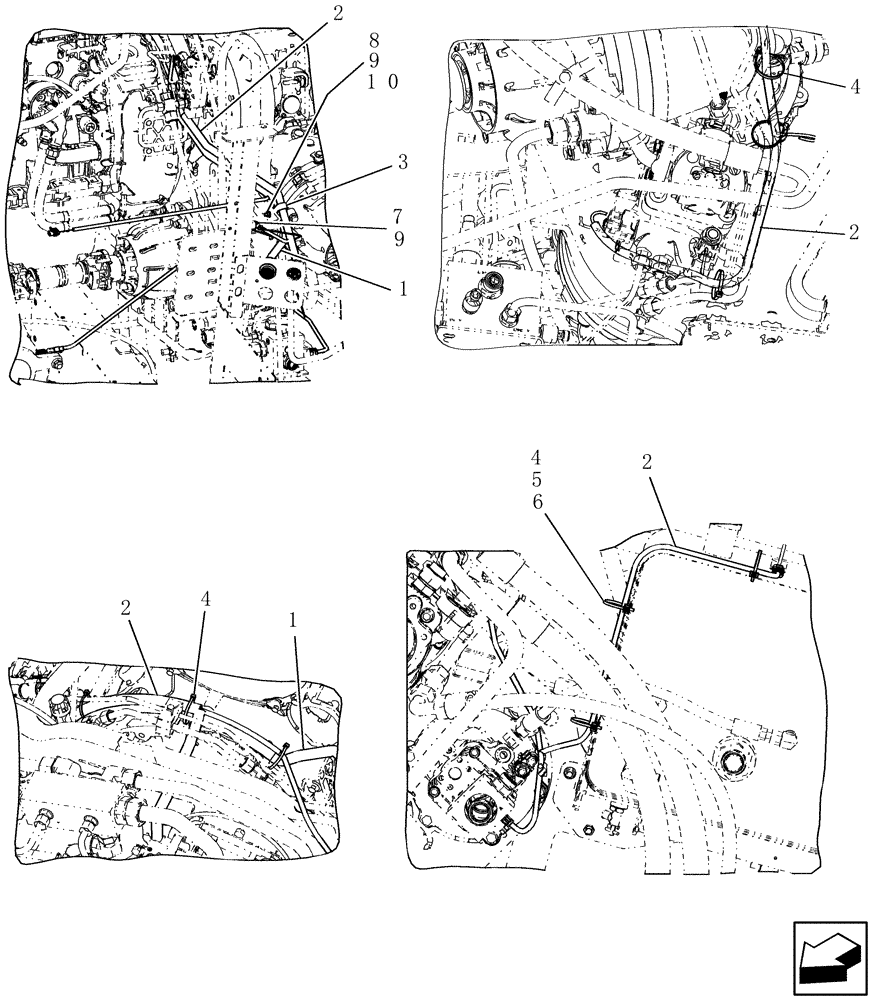

Запчасти Case IH 7120 (55.100.34[01]) - WIRE HARNESS, ENGINE GEARBOX - 7120/7120(LA) (55) - ELECTRICAL SYSTEMS

1

87637795

WIRE HARNESS

Engine

1шт.

2

87637786

WIRE HARNESS

Gearbox

1шт.

3

87000220

HOSE CLAMP

1шт.

4

86566989

CABLE TIE,208mm L

CABLE STRAP

1шт.

5

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

1шт.

6

445394

RIVET,Pop, 3/16" x 1/2" OAL

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

8

9706690

NUT,M8 x 1.25, Cl 8

5шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

10

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

11

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.
