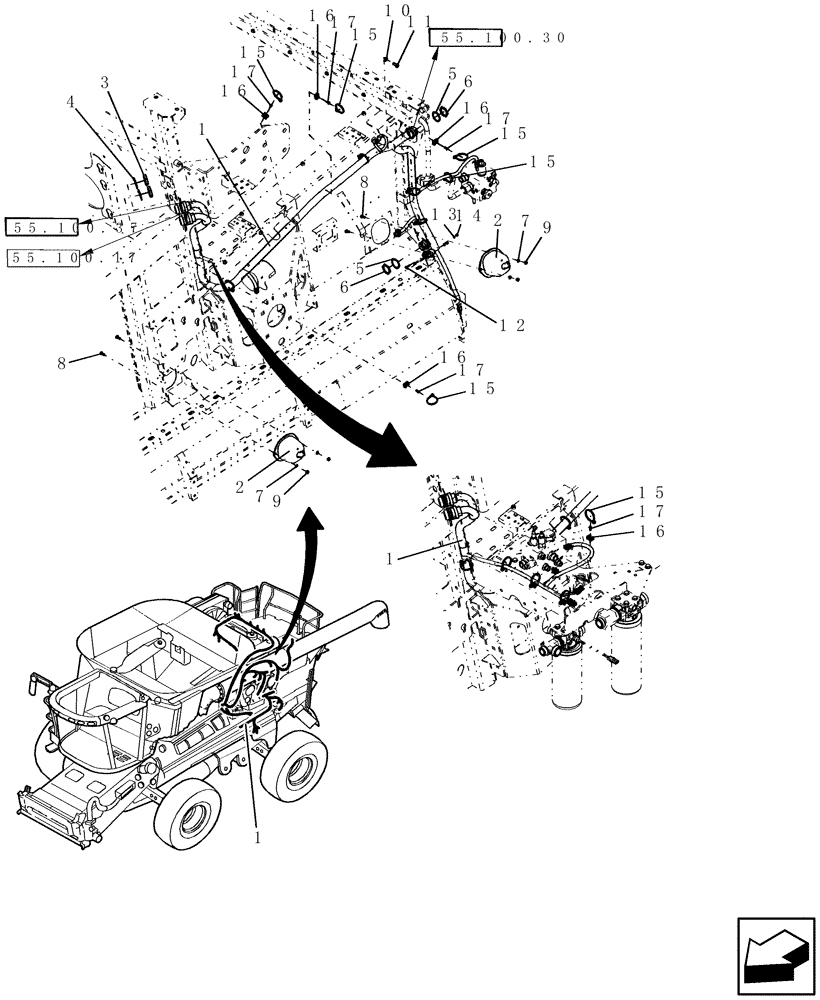

Запчасти Case IH 7120 (55.100.31) - WIRE HARNESS, STRAWHOOD - FRONT (55) - ELECTRICAL SYSTEMS

1

87637788

WIRE HARNESS

Strawhood, Front

1шт.

2

86590412

LAMP,Halogen, 12V, 37.5W, Clear

Sieve Inspection, Incl Bulb

2шт.

2

9847313

BULB,#894, 12V, 37.5W

Used in 86590412

2шт.

3

86619907

NUT,1.6875"-18

2шт.

5

9861349

LOCK WASHER,38.4mm ID x 47.9mm OD x 1.6mm Thk

2шт.

6

9861348

NUT,1-1/2"-18

2шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

9

353308

NUT,M6 x 1.0, Cl 8

4шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

412255

BOLT,Hex, M4 x 20mm, Cl 8.8

2шт.

13

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

2шт.

14

385681

NUT,M4 x 0.7, Cl 8

2шт.

15

86566989

CABLE TIE,208mm L

CABLE STRAP

13шт.

16

86590413

BASE,15.87mm W x 22.22mm OAL x 9.9mm Thk

12шт.

17

445394

RIVET,Pop, 3/16" x 1/2" OAL

12шт.
