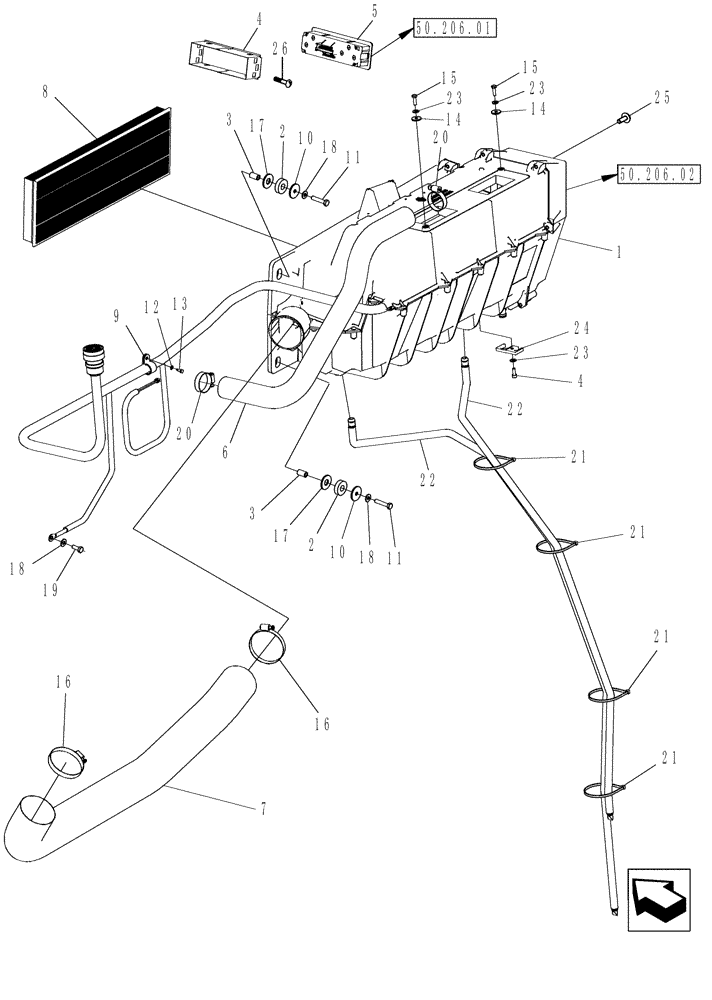

Запчасти Case IH 7120 (50.200.02) - AIR CONDITIONING UNIT - MOUNTING GROUP (50) - CAB CLIMATE CONTROL

1

0C

ORDER COMPONENTS

A/C Assy, ATC

1шт.

2

87653375

RUBBER WASHER

Rubber

4шт.

3

87653373

SPACER

4шт.

4

87281122

SLEEVE

1шт.

5

87740399

CONTROL PANEL

1шт.

6

86531050

AIR DUCT

A/C Unit To Cab; L = 780 mm, I.D. = 50.8 mm

1шт.

7

86531048

FLEXIBLE HOSE,74mm ID x 1190mm L

Cab Air Filter to A/C Unit

1шт.

8

84058793

AIR FILTER,510mm L x 174mm W x 37.4mm Thk, Paper

Cab, Air Recirculation

1шт.

9

84818444

CLAMP,22.3mm ID, 6.7mm Bolt Hole, P Type

1шт.

10

12646205

WASHER,M8 x 35 x 3

4шт.

11

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

12

9824840

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

1шт.

13

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

1шт.

14

140040

WASHER,6.6mm ID x 22mm OD x 2mm Thk

2шт.

15

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

16

381144

HOSE CLAMP,84.1mm - 107.9mm, Worm Gear

2шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

19

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

20

86624194

HOSE CLAMP,1.81” - 2.75”, Worm Gear

2шт.

21

86566990

CABLE TIE,292mm OAL x 4.8mm W

CABLE STRAP

4шт.

22

86976191

FLEXIBLE HOSE

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

3шт.

24

87754245

MOUNTING PLATE

1шт.

25

87742364

SCREW,Pan Torx, M6 x 16mm, Cl 8.8

12шт.

26

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.
