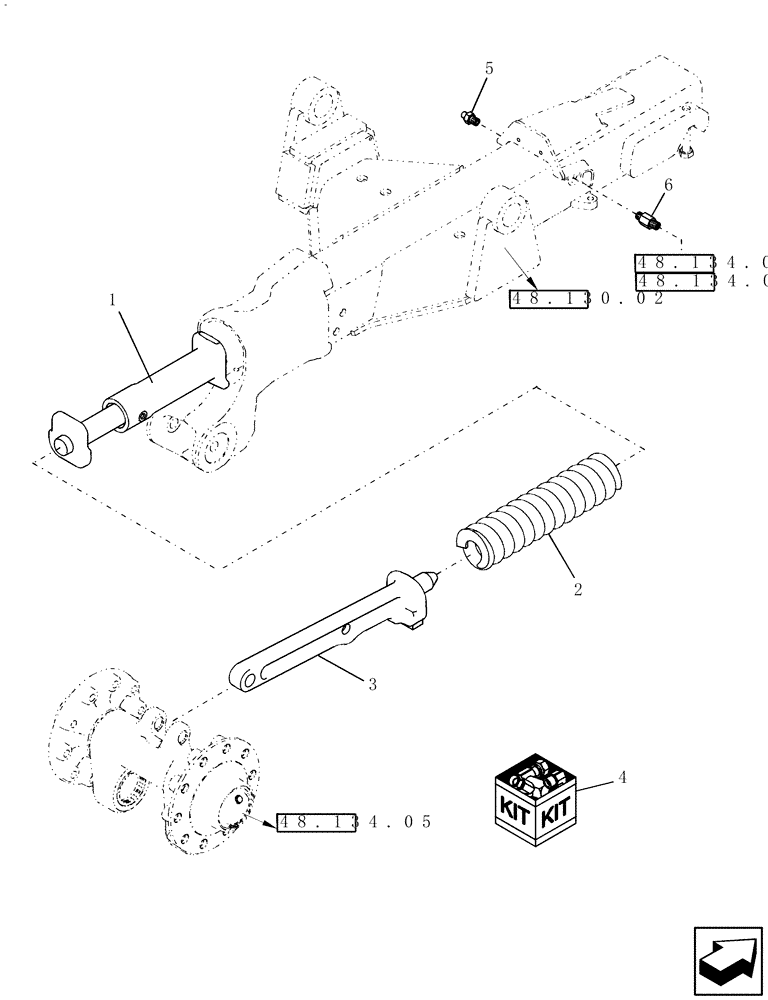

Запчасти Case IH 7120 (48.134.06) - TRACK DRIVE - TENSIONING MECHANISM, ADJUSTER-RECOIL - NA ONLY - 8120, 9120 (48) - TRACKS & TRACK SUSPENSION

1

87304299

HYDRAULIC CYLINDER,60mm Rod, 228mm Stroke

Track Drive; See Also Ref 4

2шт.

1

87304299R

REMAN-HYD CYLINDER

7120 (9/08-2/12), 8120, 9120, Both (9/08-), All AXIAL-FLOW COMBINE, Track Drive

2шт.

1

87304299C

CORE-HYD CYLINDER

Return Number

2шт.

2

255729A1

SPRING

2шт.

3

87436823

LINK ASSY.

Tension

2шт.

4

87377667

SEAL KIT

Services Ref 1

2шт.

5

325647A2

COUPLING

Track Tensioner Pressure Release

2шт.

6

87735260

CHECK VALVE,10mm ORFS x M18 x 1.5 ORB

2шт.
