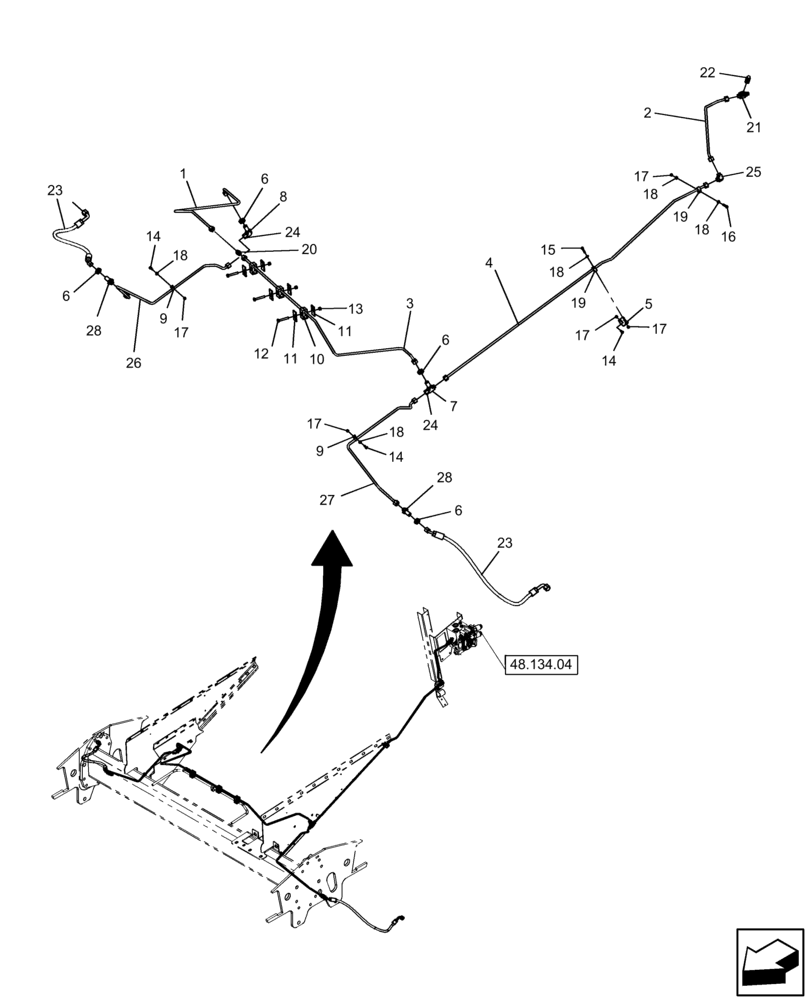

Запчасти Case IH 7120 (48.134.04) - TRACK TENSIONING MECHANISM - NA ONLY - 7120 (48) - TRACKS & TRACK SUSPENSION

1

87472005

HYD TUBE,0.375" OD

RH, Track, Front

1шт.

2

87484754

HYD TUBE,0.375" OD

RH, Track, Pressure

1шт.

3

87471948

HYD TUBE,0.375" OD

LH, Track, Front

1шт.

4

87470925

HYD TUBE,0.375" OD

LH, Track, Pressure

1шт.

5

87496958

BRACKET

Track Hydraulic

1шт.

6

87010704

BHD LOCK NUT,11/16"-16

4шт.

7

87306678

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 ORFS

1шт.

8

87317453

ELBOW,90 Degree, 11/16" - 16, ORFS, Blkhd

1шт.

9

86050346

CLAMP,9.5mm, Coat, 7.1mm Bolt Hole, P Type

2шт.

10

87000159

CLAMP

53mm L x 26mm H x 15.87mm Large Hole

3шт.

11

72180326

PLATE

52mm L x 30mm W x 7mm H

6шт.

12

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

14

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

15

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

16

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

1шт.

17

353308

NUT,M6 x 1.0, Cl 8

5шт.

18

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

19

236558A1

CLAMP

Polypropylene

2шт.

20

84431546

UNION,11/16"-16 ORFS

1шт.

21

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

1шт.

22

243670A1

COUPLING

2.29" OAL

1шт.

23

87481897

HOSE ASSY.

Track Tensioner Pressure

2шт.

24

87331950

CAP ASSY.,Hex, 11/16"-16

13/16" OD

2шт.

25

87564749

ELBOW,90 Degree, 11/16"-16, ORFS

1шт.

26

87489061

HYD TUBE,0.375" OD

RH, Track Tensioner

1шт.

27

87481898

HYD TUBE,0.375" OD

LH. Track Tensioner

1шт.

28

86978770

UNION,11/16"-6, ORFS

2шт.
