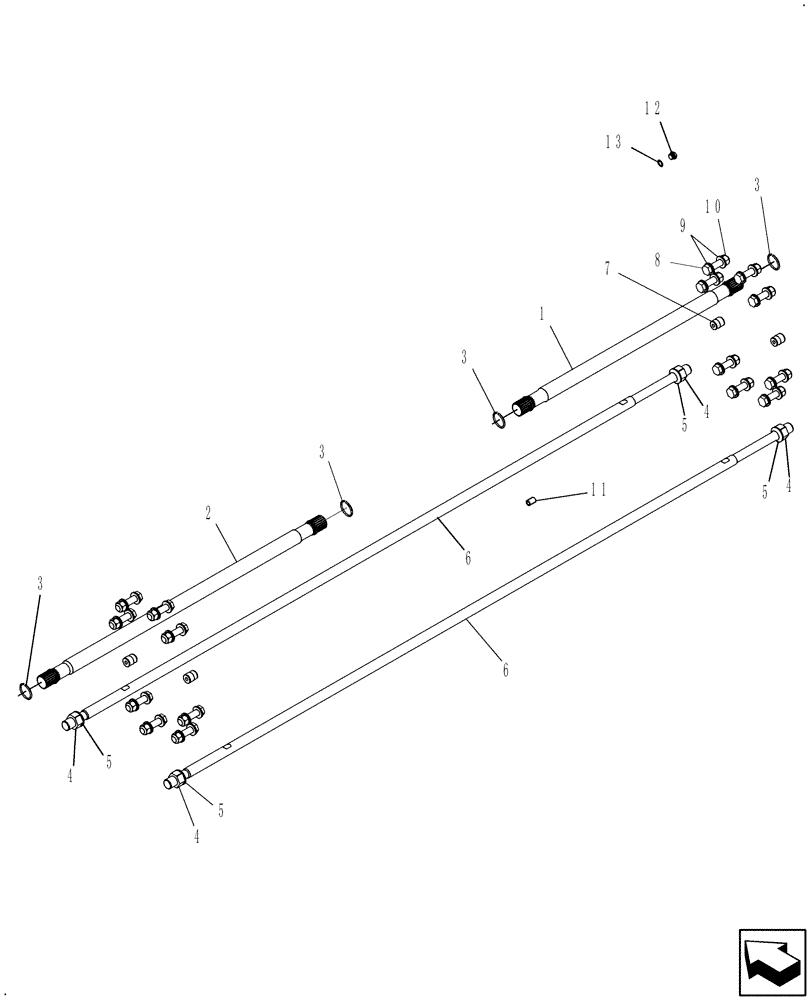

Запчасти Case IH 7120 (41.106.03[01]) - DRIVE SHAFTS AND RODS, TRACK - NA - 7120 (41) - STEERING

1

84440945

DRIVE SHAFT

1шт.

2

84440945

DRIVE SHAFT

1шт.

3

84446910

SNAP RING,M40

4шт.

4

300852

NUT,M30 x 1.5, Cl 8

4шт.

Secure W/Thread Locking Sealant

1шт.

5

80140184

WASHER,31mm ID x 50mm OD x 3mm Thk

4шт.

6

84989399

ROD

2шт.

7

626826

DOWEL,29.92mm OD x 35.1mm L

4шт.

8

87024335

BOLT,Hex, M20 x 80mm, Cl 10.9

16шт.

9

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

32шт.

10

87024336

NUT,M20 x 2.5, Cl 10

16шт.

11

84038824

BUSHING,9mm ID x 12mm OD x 20mm L

1шт.

12

87282044

PLUG,M18 x 1.5, 28mm L

Breather

2шт.

13

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

2шт.

14

87477349

DIA KIT, HARVESTER

Kit, Track Hardware

1шт.

15

NSS

NOT SOLD SEPARAT

Loctite Required 242 PN 86557103

1шт.
