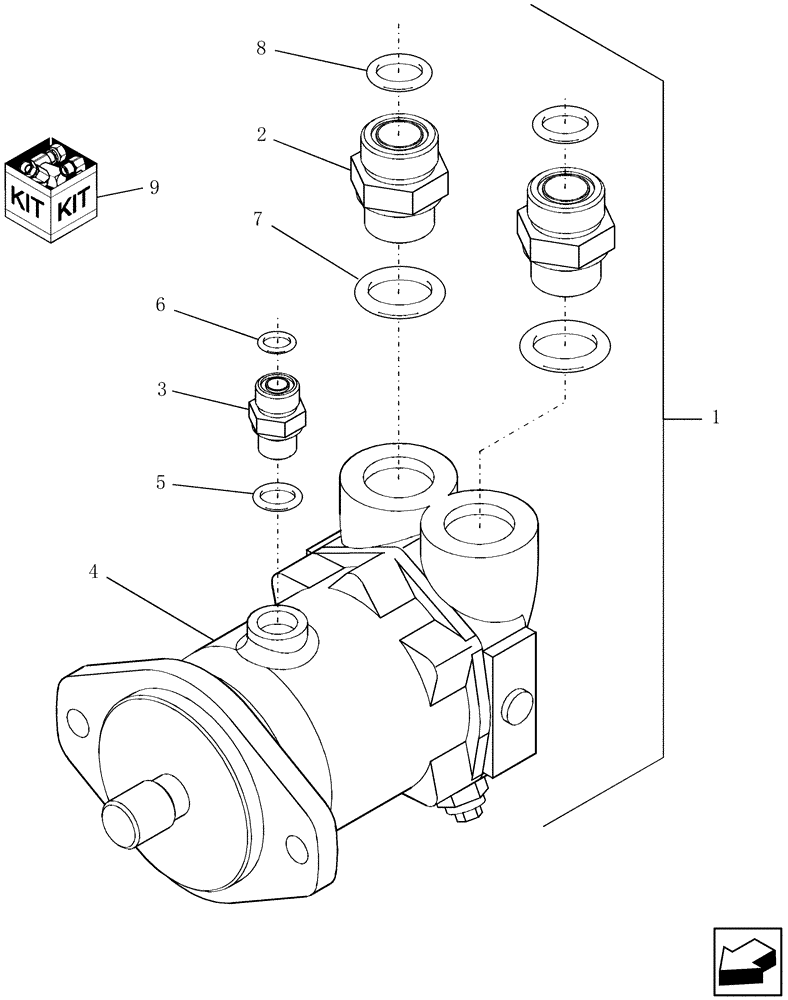

Запчасти Case IH 7120 (35.910.06) - MOTOR, HEADER - FEEDER (35) - HYDRAULIC SYSTEMS

1

86996948

MOTOR, HYDRAULIC

Header Feeder - Includes Ref 2 thru 9

1шт.

1

86981121R

REMAN-HYD MOTOR

Header Feeder

1шт.

1

86981121C

CORE-MOTOR HYDRAULIC

1шт.

2

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Includes Ref 7 & 8

2шт.

3

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Includes Ref 5 & 6

1шт.

4

86981121

HYDRAULIC MOTOR,40.6CC

1шт.

4

86981121R

REMAN-HYD MOTOR

1шт.

4

86981121C

CORE-MOTOR HYDRAULIC

1шт.

5

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

8

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

9

87284675

SEAL KIT

1шт.
