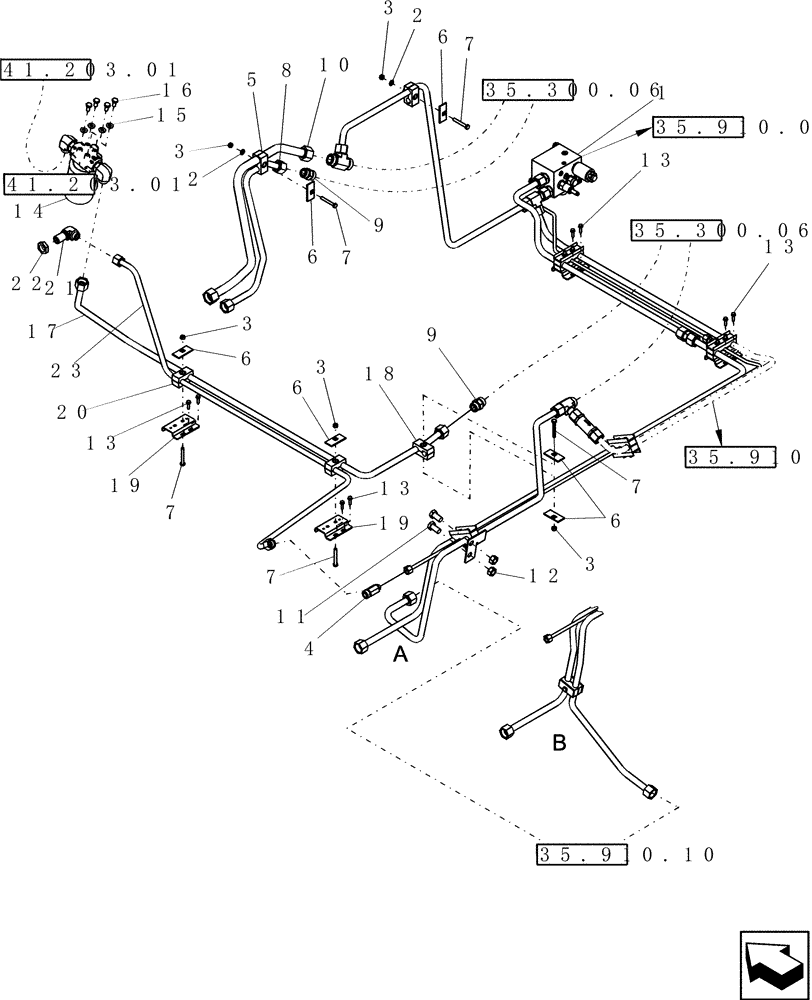

Запчасти Case IH 7120 (35.752.03[01]) - HYDRAULICS - SPREADER AND ROTARY SCREEN DRIVE - 7120/7120(LA) (35) - HYDRAULIC SYSTEMS

1

87107189

HYDRAULIC VALVE

Cleaning Fan

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

3

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

4

87109744

FITTING

1шт.

5

87000146

CLAMP

1шт.

6

87000230

PLATE

5шт.

7

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

4шт.

8

87397351

HYD TUBE,16 mm ID x 20/0.75 mm OD x 367.4, 337 mm L

1шт.

9

84100407

UNION,1-3/16"-12 ORFS

2шт.

10

87397347

HYD TUBE,16 mm ID x 25/1 mm OD x 435, 261.9 mm L

1шт.

11

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

12

100020

NUT,M16 x 2.0, Cl 8

2шт.

13

87010469

SELF-TAP SCREW,Hex, M6.3 x 25mm

8шт.

14

86998689

HYDRAULIC OIL FILTER

1шт.

15

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

17

87397346

TUBE,16 mm ID x 20/0.75 mm OD x 1071.9, 494.5 mm L

1шт.

18

87000140

CLAMP,Tube, 19.05mm

1шт.

19

87109755

BRACKET

2шт.

20

87000144

CLAMP

2шт.

21

87028944

ELBOW,90 Degree, 1"-14 ORFS, Bulkhead

1шт.

22

86639085

BHD LOCK NUT,1"-14, Bulkhead

1шт.

23

87397349

HYD TUBE,16mm OD x 1064.4mm OAL

1шт.
