(35.710.02) - MOTOR, HYDRAULIC - ROTOR

Запчасти Case IH 7120 (35.710.02) - MOTOR, HYDRAULIC - ROTOR (35) - HYDRAULIC SYSTEMS

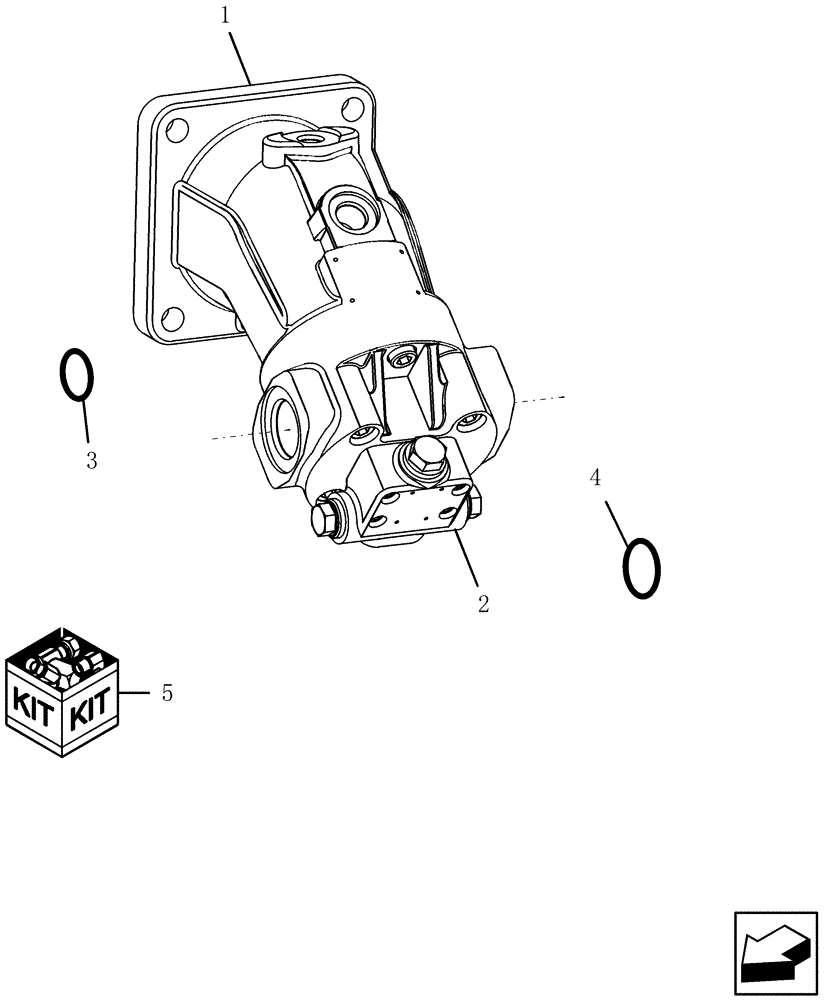

Схема запчастей Case IH 7120 - (35.710.02) - MOTOR, HYDRAULIC - ROTOR (35) - HYDRAULIC SYSTEMS
5
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Mounting Parts Located On 41.203.01

1шт.

1

87310111

MOTOR, HYDRAULIC,45.6CC

1шт.

1

87310111R

REMAN-HYD MOTOR

1шт.

1

87310111C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

87283442

VALVE

Motor Flush

1шт.

3

236535

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

4

87016958

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

2шт.

5

87283441

SEAL KIT

For Ref 1

1шт.

Выбрано товаров: 8
