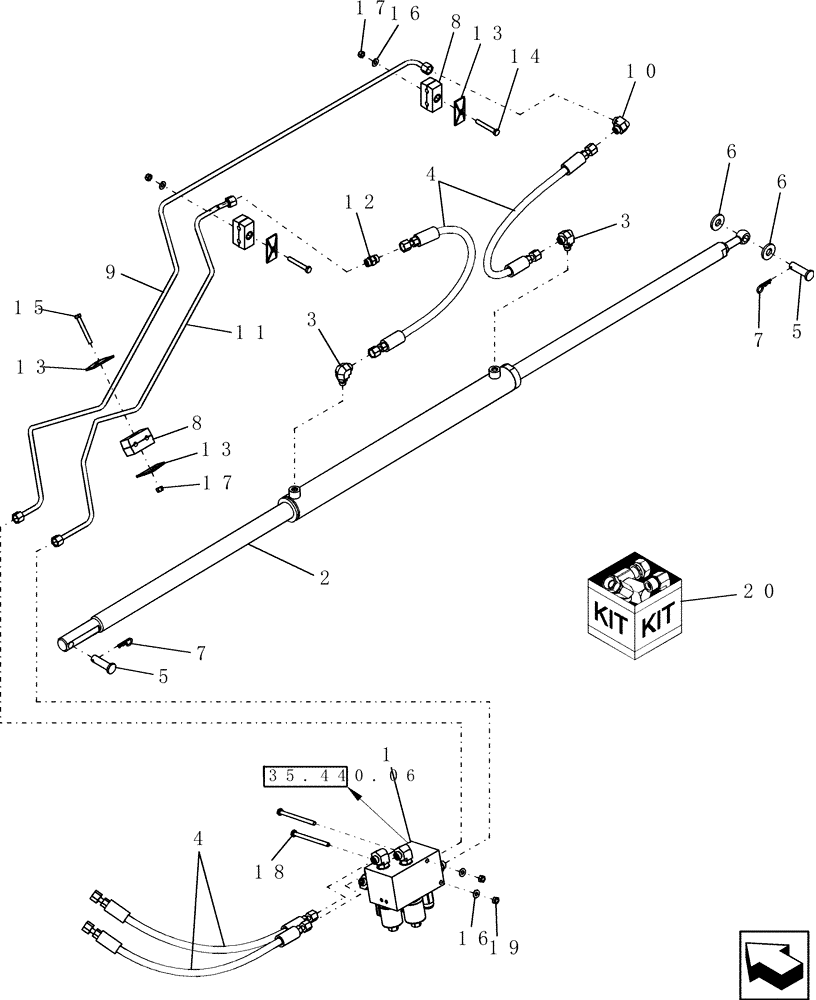

1
NS
NOT SERVICED
Breakdown
1шт.
2
84191901
HYDRAULIC CYLINDER,Double Acting, 40mm Rod, 610mm Stroke
1шт.
84191901R
REMAN-HYD CYLINDER
7120 (9/08-2/12), 8120, 9120, Both (9/08-)
1шт.
84191901C
CORE-HYD CYLINDER
Return Number
1шт.
3
86579686
90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB
2шт.
4
84204125
HOSE ASSY.
4шт.
5
84077752
CLEVIS PIN,15.72mm OD x 61.96mm L
2шт.
6
496-41066
WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk
2шт.
7
216698
COTTER PIN,0.125" OD x 1.75" L
2шт.
8
86988833
CLAMP,9.52mm x 9.52mm, Dual Clamp Block
3шт.
9
84204129
HYD TUBE,10 mm OD
1шт.
10
87564749
ELBOW,90 Degree, 11/16"-16, ORFS
1шт.
11
84204127
HYD TUBE,10 mm OD
1шт.
12
84431546
UNION,11/16"-16 ORFS
1шт.
13
87000230
PLATE
Hose Clamp
4шт.
14
120061
BOLT,Hex, M8 x 60mm L, Cl 8.8
2шт.
15
300510
BOLT,Hex, M8 x 65mm, Cl 8.8
1шт.
16
322358
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
4шт.
17
86629542
NUT,M8 x 1.25, Cl 8.8
3шт.
18
412215
BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8
2шт.
19
9706690
NUT,M8 x 1.25, Cl 8
2шт.
20
84216987
SEAL KIT
For Cylinder 84191901
1шт.
