Запчасти Case IH 7120 (35.440.06) - HYDRAULIC MANIFOLD, GRAIN COVER, MY2010 (35) - HYDRAULIC SYSTEMS

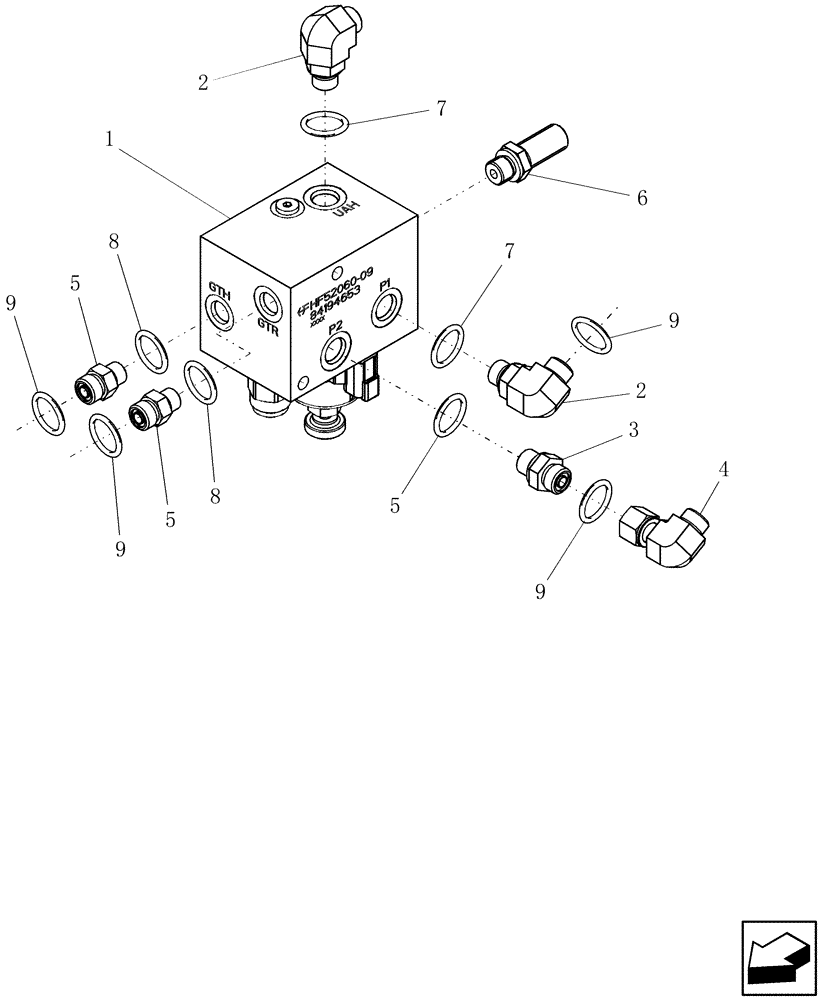

Схема запчастей Case IH 7120 - (35.440.06) - HYDRAULIC MANIFOLD, GRAIN COVER, MY2010 (35) - HYDRAULIC SYSTEMS
9
3
5
7
8
5
5
8
7
1
9
2
4
9
9
6
2

Артикул

Название

Примечание

Количество

1

84194653

MANIFOLD VALVE

Block

1шт.

2

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

Incl O-Ring 86598100

2шт.

3

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl Ref 7 and 9

1шт.

4

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

5

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl Ref 8 and 9

2шт.

6

84224892

HYD CONNECTOR

1шт.

7

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

9

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

Выбрано товаров: 9
