Запчасти Case IH 7120 (35.300.15) - PTO, VALVES & TUBES, ENGINE GEARBOX (35) - HYDRAULIC SYSTEMS

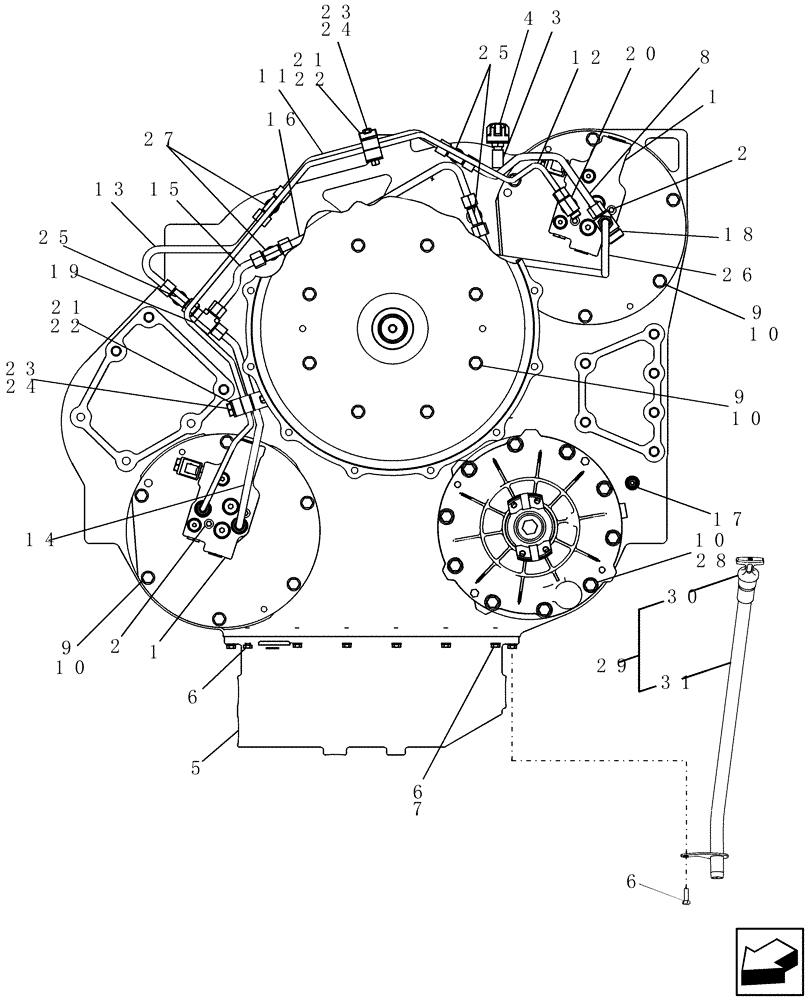

Схема запчастей Case IH 7120 - (35.300.15) - PTO, VALVES & TUBES, ENGINE GEARBOX (35) - HYDRAULIC SYSTEMS
30
24
23
10
17
22
10
6
18
23
4
19
1
9
20
12
27
21
11
14
7
5
31
9
2
28
13
1
26
8
24
16
15
6
6
25
22
29
2
25
9
3
10
10
21

Артикул

Название

Примечание

Количество

1

86981234

HYDRAULIC VALVE

2шт.

2

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

6шт.

3

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

1шт.

4

1971726C1

BREATHER,1/4" - 18

1шт.

5

87108616

PAN

PTO

1шт.

6

628-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

14шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

13шт.

8

87108512

HYD TUBE,0.50" OD

Lube to C7

1шт.

9

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

49шт.

10

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

59шт.

11

87108513

HYD TUBE,0.50" OD

Lube to Second Spray Port

1шт.

12

87449002

TUBE,0.375" OD

Clutch Valve Supply

1шт.

13

87108883

HYD TUBE,0.50" OD

Lube C9 to C2

1шт.

14

87108884

HYD TUBE,0.50" OD

Lube C9 to C2

1шт.

15

87449001

TUBE,0.5" OD

Lube C2 to C9

1шт.

16

87449000

TUBE,0.5" OD

Lube C2 to C7

1шт.

17

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

STR THD 10MM ORFS x M14 ORB

1шт.

18

87281679

FITTING

Special ORFS Cross

1шт.

19

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

ORFS SWVL RUN 12MM or 1/2 IN

1шт.

20

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

ORFS SWVL BR 10 MM or 3/8 IN

1шт.

21

1347127C1

PLATE

Hose Clamp

4шт.

22

410573A1

CLAMP

Hydraulic Tube, 12.7 x 9.52

2шт.

23

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

2шт.

24

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

25

87108509

FITTING

Orificed Tee

3шт.

26

87448999

TUBE,0.5" OD

Lube C8 to C7

1шт.

27

87108517

FITTING

Orificed Tee

2шт.

28

828-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 10.9

10шт.

29

0C

ORDER COMPONENTS

1шт.

30

84153775

DIPSTICK

1шт.

31

87377334

TUBE,1" OD

1шт.

Выбрано товаров: 31
