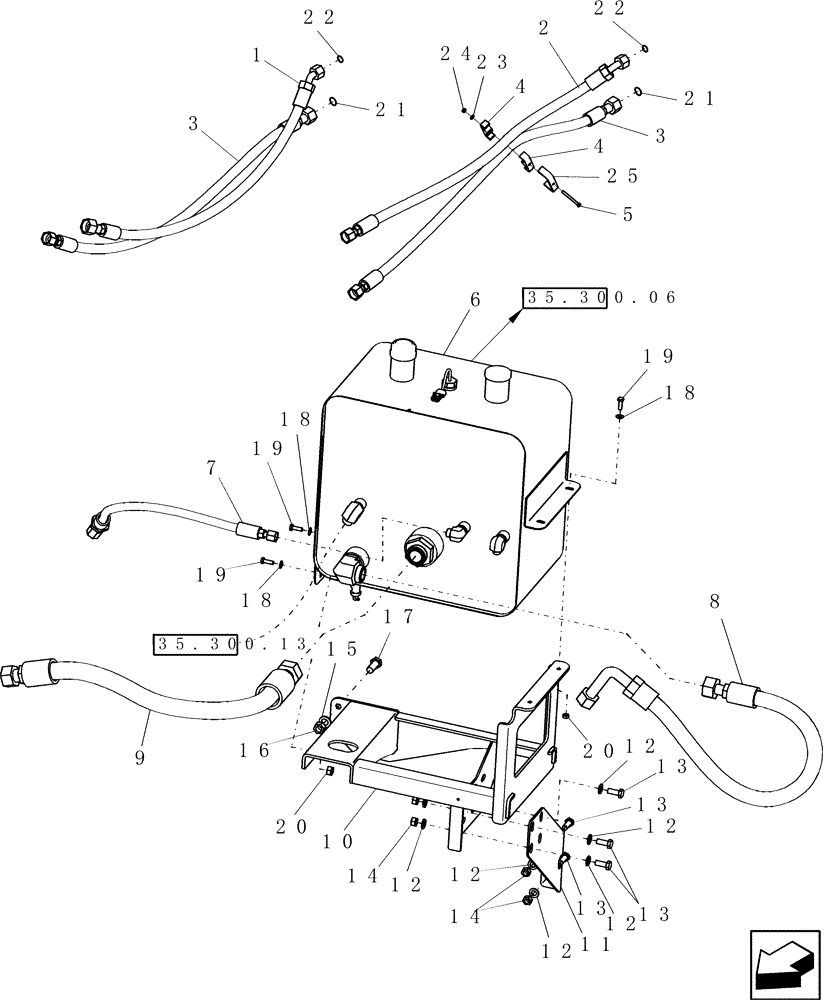

Запчасти Case IH 7120 (35.300.09[01]) - RESERVOIR - HYDRAULIC, WITH HOSES AND SUPPORTS - 7120/7120(LA) (35) - HYDRAULIC SYSTEMS

1

87397357

HOSE ASSY.

Aux Cooler Outlet; L = 957 mm

1шт.

2

87397352

HOSE ASSY.

Aux Cooler Inlet; L = 1038 mm

1шт.

3

87397348

HOSE ASSY.

Main Cooler; L = 1048 mm

2шт.

4

457547

CLAMP

2шт.

5

86508569

BOLT,Hex, M6 x 70mm, Cl 8.8

1шт.

6

87548960

RESERVOIR, HYDRAULIC

1шт.

7

86999156

FLEXIBLE HOSE

PFC Pump, Drain; L = 675 mm

1шт.

8

86999154

FLEXIBLE HOSE

PFC Pump, Suction; L = 1030 mm

1шт.

9

86999153

FLEXIBLE HOSE

Gear Pump, Suction; L = 1025 mm

1шт.

10

86975645

BRACKET

1шт.

11

86976375

BRACKET

1шт.

12

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

13

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

14

9706685

NUT,M12 x 1.75, Cl 8

1шт.

15

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

3шт.

16

825-1416

NUT,M16, Cl 8

3шт.

17

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

3шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

19

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

20

9706690

NUT,M8 x 1.25, Cl 8

4шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

24

353308

NUT,M6 x 1.0, Cl 8

1шт.

25

743320

SUPPORT

1шт.
