Запчасти Case IH 7120 (35.300.06) - RESERVOIR - OIL, HYDRAULIC (35) - HYDRAULIC SYSTEMS

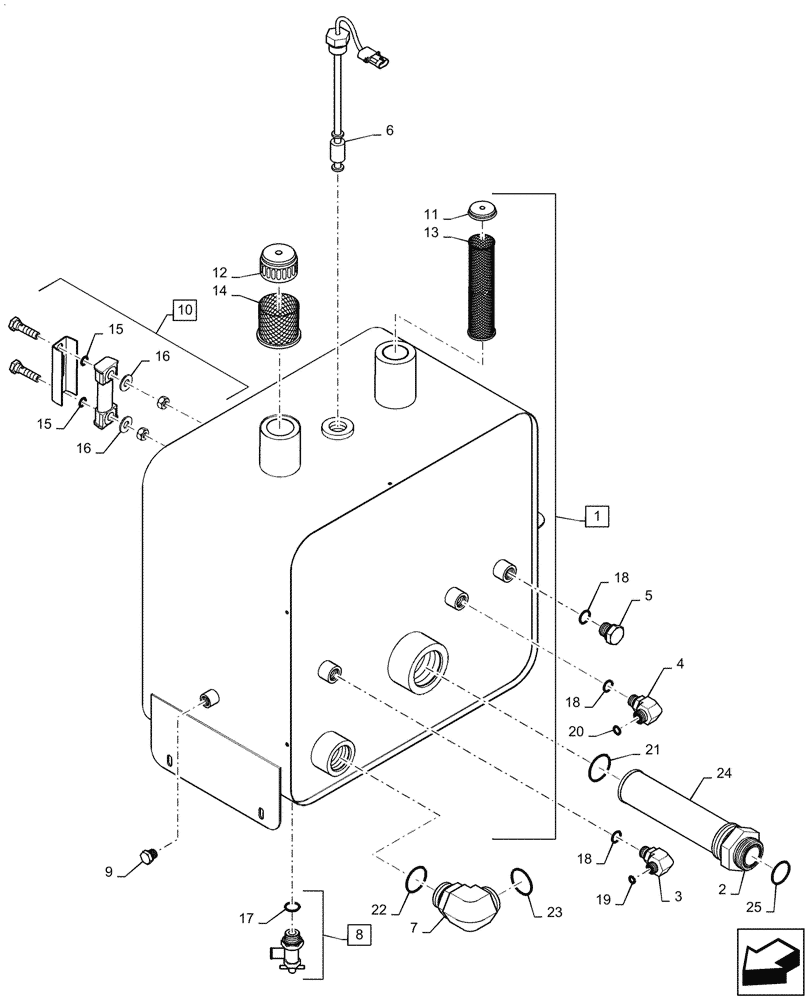

Схема запчастей Case IH 7120 - (35.300.06) - RESERVOIR - OIL, HYDRAULIC (35) - HYDRAULIC SYSTEMS
20
16
3
2
17
4
15
14
18
10
22
23
18
24
9
8
18
16
13
21
7
6
12
25
11
1
15
19
5

Артикул

Название

Примечание

Количество

1

87548960

RESERVOIR, HYDRAULIC

Incl Ref 10, 11, 12, 13, 14, 15 & 16

1шт.

1

87510565

RESERVOIR

Incl Ref 10, 11, 12, 13, 14, 15 & 16

1шт.

EU Only

1шт.

2

86995010

STRAINER ELEMENT

Suction

1шт.

3

86579693

ELBOW,90 Degree, 1"-14 ORFS x M18 x 1.5 ORB

1шт.

4

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

1шт.

5

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

5

87030025

PLUG,Hex, M18 x 1.5 ORB

1шт.

6

87644162

SENSOR

Hydraulic Fluid Level

1шт.

7

86579700

ELBOW,90 Degree, 1 11/16"-12 ORFS x M42 x 2 ORB

1шт.

8

87485712

DRAINCOCK/TAP SUPPLY

Incl Ref 17

1шт.

9

86611704

PLUG,Hex, M14 x 1.5 ORB

HH, ORB, M14 x 1.5

1шт.

10

87107405

LEVEL GAUGE

Incl Ref 15 & 16

1шт.

11

87000624

CAP

Fill

1шт.

12

87000625

COVER

With Breather Filter

1шт.

13

87000623

SCREEN

Reservoir Fill

1шт.

14

87000622

HYDRAULIC OIL FILTER

Fill Neck Baffle

1шт.

15

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

16

720060

RUBBER WASHER

2шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, Incl with Ref 8

1шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

3шт.

19

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

20

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

84432617

O-RING,56.6mm ID x 2.9mm Thk

1шт.

22

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

23

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

24

86995010

STRAINER ELEMENT

1шт.

25

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

Выбрано товаров: 28
