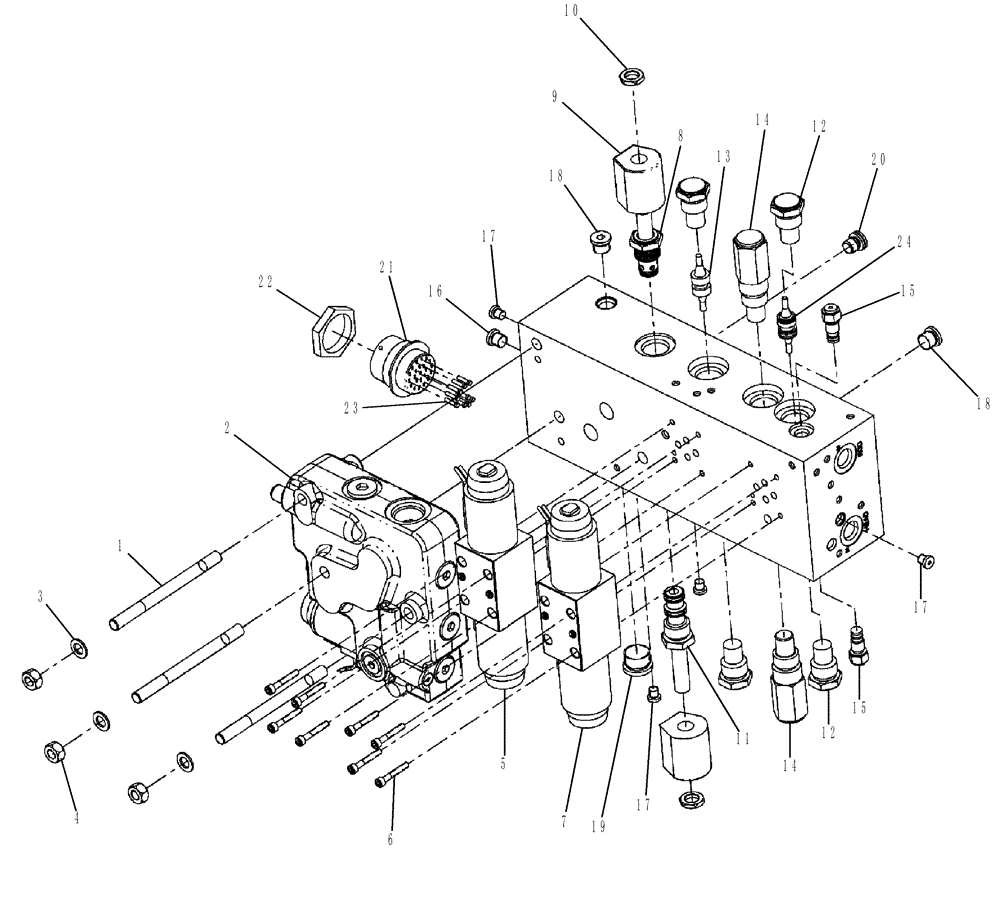

Запчасти Case IH 7120 (35.204.07[02]) - VALVE, LATERAL TILT, COMPONENTS, ASN YAG208243 (35) - HYDRAULIC SYSTEMS

1

190716A1

STUD

3шт.

2

87281778

VALVE

Flow Control, Reel Drive

1шт.

2

87281778R

REMAN-HYD VALVE

Flow Control, Reel Drive

1шт.

2

87281778C

CORE-VALVE HYD

Return Number

1шт.

3

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

5

87434014

CONTROL VALVE

Reel Aft Solenoid

1шт.

6

281060

HEX SOC SCREW,HSH, #10 - 24 x 1-1/4"

4шт.

7

86995306

VALVE

3 Position, 4 Way, Tilt, CW

1шт.

7

86995306R

REMAN-HYD VALVE

3 Position, 4 Way, Tilt, CW

1шт.

7

86995306C

CORE-VALVE HYD

Return Number

1шт.

8

87436627

VALVE

Solenoid Cartridge, Reel Lower

1шт.

9

86995302

SOLENOID

2шт.

10

195683A1

JAM NUT,1/2"-20

2шт.

11

190711A1

VALVE

3 Way 2 Position, Reel Raise

1шт.

12

87433998

CHECK VALVE,7/8" - 14

2шт.

13

149940C1

PISTON

Fore

1шт.

14

190986A1

VALVE PRESSURE RELIE,7/8" - 14

Tilt Rod End

2шт.

15

190704A1

CHECK VALVE

Tilt Signal

2шт.

16

218-5207

PLUG,Hex Soc, 7/16"-20 ORB

1шт.

17

218-5205

PLUG,Hex Soc, 5/16"-24 ORB

4шт.

18

218-5209

PLUG,Hex, 9/16"-18 ORB

2шт.

19

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

1шт.

20

221573A1

PLUG,Hex Soc, M12 x 1.5, ORB

1шт.

21

319151A1

CONNECTOR, ELEC

CONNECTOR Deutch HDP 23 Cavity

1шт.

22

86619907

NUT,1.6875"-18

1шт.

23

453133C1

PLUG

Deutsch P/N 114017

9шт.

24

84236507

PISTON

Pilot x-Over Check, Tilt Rod End

1шт.

25

86508168

SEAL KIT

1шт.
