Запчасти Case IH 7120 (35.204.07[01]) - VALVE, LATERAL TILT, COMPONENTS, BSN YAG208243 (35) - HYDRAULIC SYSTEMS

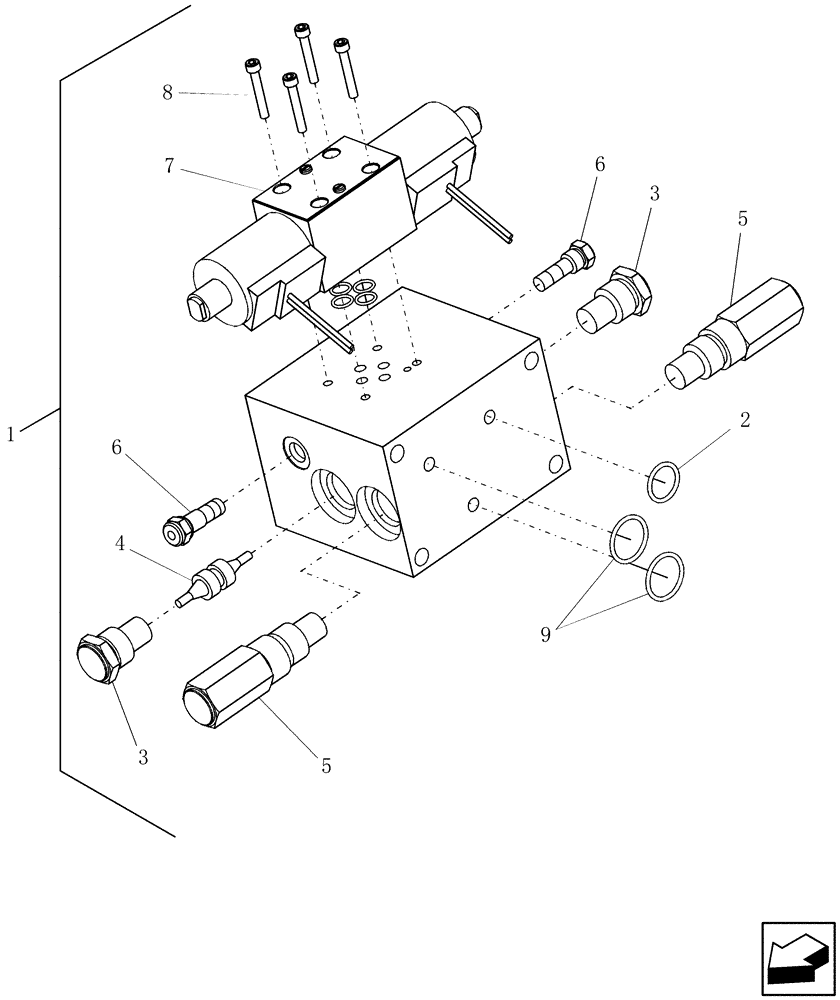

Схема запчастей Case IH 7120 - (35.204.07[01]) - VALVE, LATERAL TILT, COMPONENTS, BSN YAG208243 (35) - HYDRAULIC SYSTEMS
9
8
1
2
6
6
4
3
3
7
5
5

Артикул

Название

Примечание

Количество

1

86995690

CONTROL VALVE

ADD - ON - Lateral Tilt

1шт.

2

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

3

87433998

CHECK VALVE,7/8" - 14

Lateral Tilt

2шт.

4

149940C1

PISTON

1шт.

5

190986A1

VALVE PRESSURE RELIE,7/8" - 14

2шт.

6

190704A1

CHECK VALVE

5000 PSI

2шт.

6a

190707A1

SEAL KIT

Services 6

2шт.

7

86995306

VALVE

Three Position, Four Way

1шт.

86995306R

REMAN-HYD VALVE

7120 (9/08-2/12), 8120, 9120 BOTH (9/08-), ALL BSN YAG208243

1шт.

86995306C

CORE-VALVE HYD

Return Number

1шт.

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Used Under Ref 7, Not Included With Ref 7

4шт.

8

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

4шт.

9

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

2шт.

Выбрано товаров: 13
