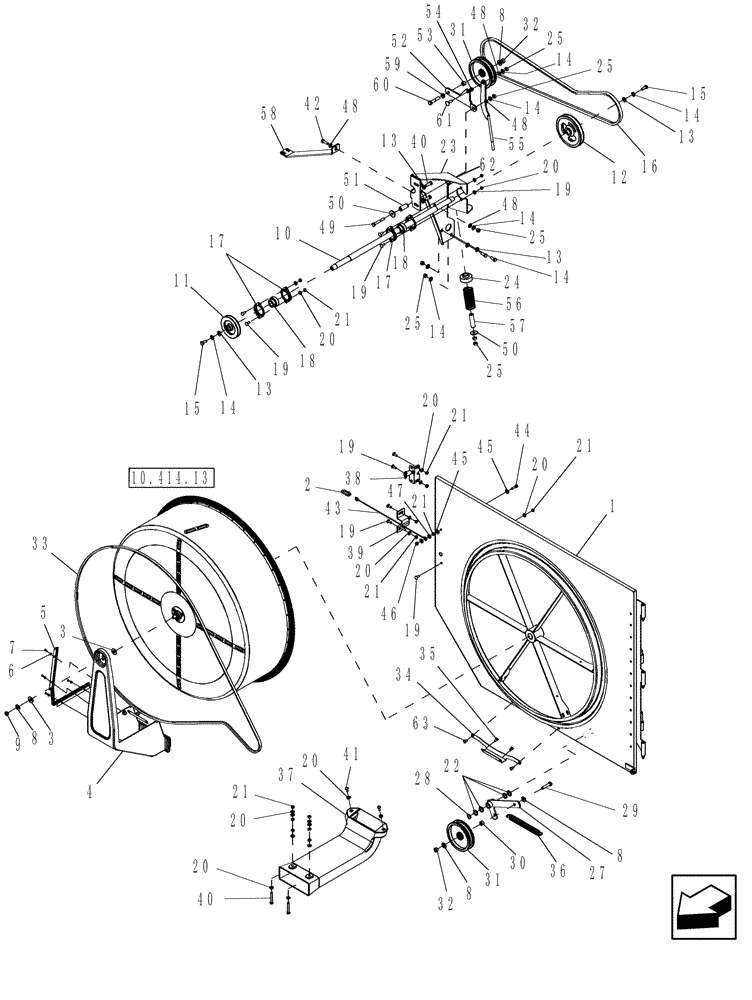

Запчасти Case IH 7120 (10.418.16[01]) - ROTARY SCREEN - 7120/7120(LA) (10) - ENGINE

1

87698896

SUPPORT ASSY.

1шт.

2

87107072

CHAIN LINK,44.299mm Pitch

1шт.

3

543043

WASHER,13mm ID x 35mm OD x 2.5mm Thk

2шт.

4

87522592

CHANNEL

1шт.

5

87642393

BRUSH

BRUSH

1шт.

6

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

4шт.

7

86585706

SCREW,Phillips Drive, Pan HD, M4 x 10mm, Cl 4.8

4шт.

8

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

9

323238

THIN NUT,Hex, M12, 1.75mm Pitch, Cl 05

1шт.

10

87526142

COUNTERSHAFT

1шт.

11

87552111

PULLEY

1шт.

12

84069907

PULLEY,174mm OD

1шт.

13

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

2шт.

14

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

11шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.

16

87607871

V-BELT,12.45 mm W x 2190.00 mm L

Rotary Screen

1шт.

17

86548974

FLANGE,Bearing

4шт.

18

325103

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

19

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

19шт.

21

9706690

NUT,M8 x 1.25, Cl 8

16шт.

22

443434

LOCK WASHER,20.5mm ID x 29mm OD x 1mm Thk

4шт.

23

87635700

BRACKET

1шт.

24

87633160

BUSHING

Spacer

1шт.

25

100016

NUT,M10 x 1.5, Cl 8

3шт.

26

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

4шт.

Used if Brush Mounting Holes are Slots

1шт.

27

87552113

ARM ASSY.

1шт.

28

370024

CIRCLIP,M20, Ext

1шт.

29

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

30

84069986

BUSHING,13mm ID x 20mm OD x 11mm L

1шт.

31

87552112

PULLEY

2шт.

32

9706685

NUT,M12 x 1.75, Cl 8

2шт.

33

86514512

V-BELT,0.49" W x 142.50" L

Rotary Screen

1шт.

34

87550068

SUPPORT ASSY.

1шт.

35

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

36

87647773

SPRING

1шт.

37

87376998

CHANNEL

1шт.

38

84431232

LATCH

1шт.

39

84057181

SUPPORT

1шт.

40

86977784

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

2шт.

41

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

42

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

3шт.

43

86623991

CABLE,2 Eyelet, 490mm Centerline Length

1шт.

44

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

45

412650

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.4mm Thk

2шт.

46

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

47

378243

WASHER,8.4mm ID x 21mm OD x 1.6mm Thk

2шт.

48

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

4шт.

49

43144

BOLT,Hex, M10 x 70mm, Cl 8.8

1шт.

50

12644301

WASHER,M10 x 35 x 3

2шт.

51

87600703

SHAFT

Spindle

1шт.

52

87600674

SPRING SEAT

1шт.

53

84069986

BUSHING,13mm ID x 20mm OD x 11mm L

1шт.

54

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

55

87602153

LINK

1шт.

56

38902

SPRING

1шт.

57

NSS

NOT SOLD SEPARAT

Spacer

1шт.

58

84389627

SECURING STRAP

Model Year 11 And After

1шт.

58

87623360

STRAP

Model Year 10 And Before

1шт.

59

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

60

9706693

BOLT,M12 x 60mm, Cl 8.8

1шт.

61

86512424

CARRIAGE BOLT,Sq Nk, M10 x 30mm, Cl 8.8, Full Thd

1шт.

62

382974

BUSHING,20.05mm ID x 23mm OD x 15mm L

2шт.

63

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

Nut Rivet, M8x1.25 thread

2шт.
