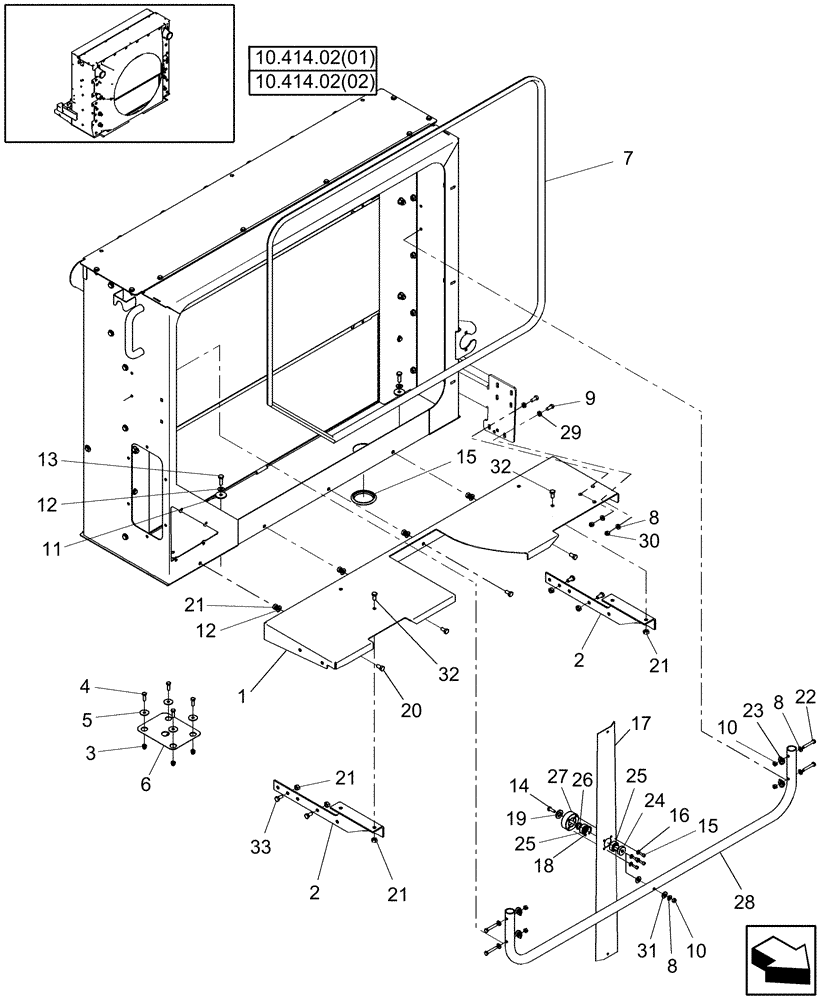

Запчасти Case IH 7120 (10.414.06[01]) - PLATFORM & FAN BLADE, COOLING BOX - 7120/7120(LA) (10) - ENGINE

1

87745675

FRAME ASSY

1шт.

2

86976802

BRACKET

2шт.

3

87284531

NUT,Rivnut, M8 x 1.25, 0.5mm - 3mm Grip Range

4шт.

4

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

5

86979986

WASHER,0.34" ID x 1.25" OD x 0.06" Thk

4шт.

6

87550262

COVER PLATE

1шт.

7

401209

SEAL PROTECTION

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

13шт.

9

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

10

9706690

NUT,M8 x 1.25, Cl 8

7шт.

11

86637594

WASHER,0.41" ID x 1.5" OD x 0.12" Thk

2шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

13

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

14

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

1шт.

15

1302758C1

PLUG

1шт.

16

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

17

87720406

FAN BLADE

BLADE Fan

1шт.

18

300642

CIRCLIP,M35 x 1.5mm W, Internal

1шт.

19

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

1шт.

20

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

21

100016

NUT,M10 x 1.5, Cl 8

10шт.

22

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

23

333962

CLAMP

4шт.

24

84460219

SHAFT,9mm ID x 17mm OD, 24.5mm OD Shoulder, 32mm Head

1шт.

25

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

2шт.

26

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

1шт.

27

84437613

BUSHING,35mm ID x 65mm OD x 23mm Thk

1шт.

28

87395329

TUBE,27.86 mm ID x 33.4 mm OD x 1457.4, 266.7 mm L

1шт.

29

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

2шт.

30

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

4шт.
