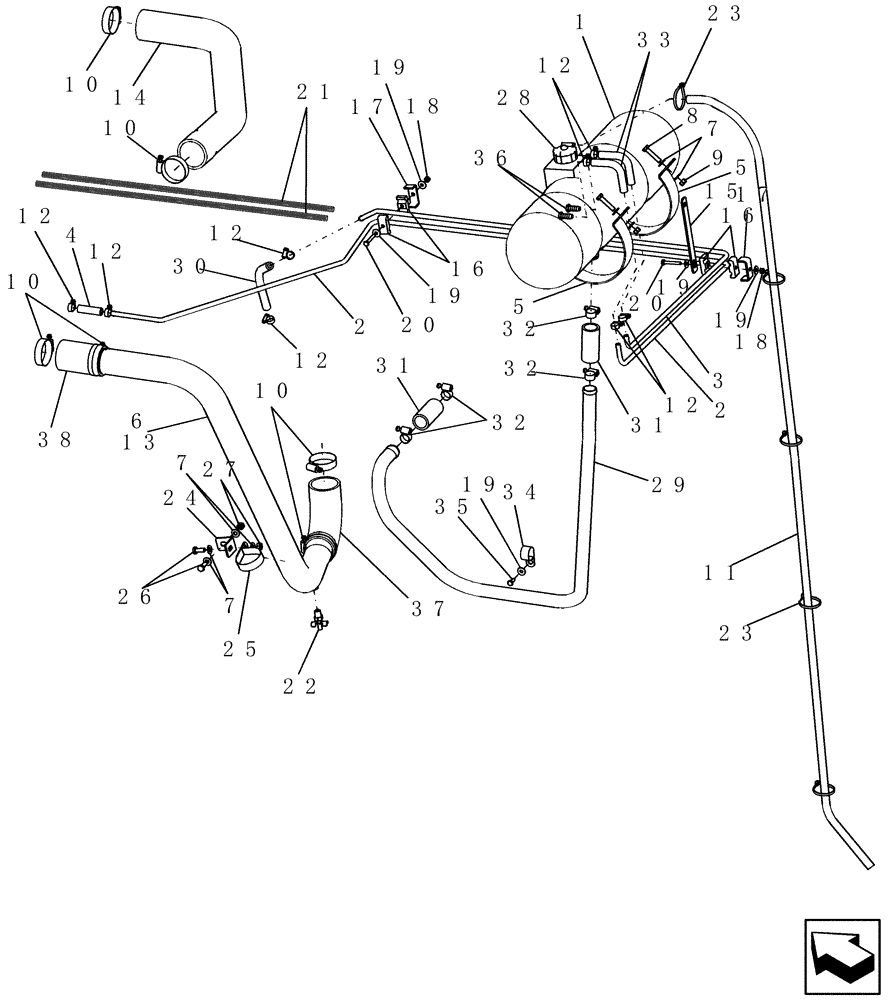

Запчасти Case IH 7120 (10.406.03[01]) - COOLANT LINES - 7120/7120(LA) (10) - ENGINE

1

87670349

RESERVOIR, COOLANT E

Incl Ref 28 & 36

1шт.

2

87663939

TUBE,10.95 mm OD

Deaeration

1шт.

3

87663940

TUBE,9.52 mm OD x 943.7, 630.2 mm L

Deaeration

1шт.

4

87534733

HOSE,9.50 mm ID x 110.00 mm, SAE 30R2

Deaeration Connection

1шт.

5

84442536

CLAMP

2шт.

6

87530575

TUBE,386.3 mm L

Engine To Cooler (Includes 13)

1шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

12шт.

8

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

10

86633352

HOSE CLAMP,57mm - 79mm

4шт.

11

87395212

TUBE

1шт.

12

913888

HOSE CLAMP

8шт.

13

87530574

TUBE,57.2 - 60 mm OD x 605.1, 416.5 mm L

(Includes Ref 6)

1шт.

14

87530573

HOSE,57.20 mm ID x 484.60 mm, SAE J20, 20R4 Class D-1

1шт.

15

87664010

BRACKET

1шт.

16

430357

CLAMP

4шт.

17

431941

SUPPORT

2шт.

18

353308

NUT,M6 x 1.0, Cl 8

2шт.

19

412649

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

5шт.

20

120102

BOLT,Hex, M6 x 40mm, Cl 8.8

2шт.

21

87283963

INSULATOR

2шт.

22

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1шт.

23

86566989

CABLE TIE,208mm L

CABLE STRAP

5шт.

24

87576259

BRACKET

1шт.

25

515-23571

CLAMP,2 1/4", Insul, 3/8" Bolt

1шт.

26

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

27

9706690

NUT,M8 x 1.25, Cl 8

2шт.

28

82022744

CAP,Female, Vented, Non-Locking

Was 84072957

1шт.

29

87482872

TUBE,1.125" OD

Deaeration Bottle To Engine

1шт.

30

87576257

HOSE,9.50 mm ID x 250.00 mm

Deaeration Connection

1шт.

31

87551123

HOSE,28.6mm ID x 80mm OAL, SAE 20R4

Deaeration

2шт.

32

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

4шт.

33

87671820

HOSE,9.40 mm ID, SAE 30R2

Deaeration Connection

2шт.

34

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

35

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

1шт.

36

NSS

NOT SOLD SEPARAT

Hose Barb

2шт.

37

86976412

HOSE,59.00 mm ID x 110.00 mm, SAE J20, 20R4 Class D1

Hose Elbow

1шт.

38

87402765

HOSE,57.20mm ID x 101.60mm, SAEJ20, SAE20R4 Class D-1

Engine Coolant

1шт.
