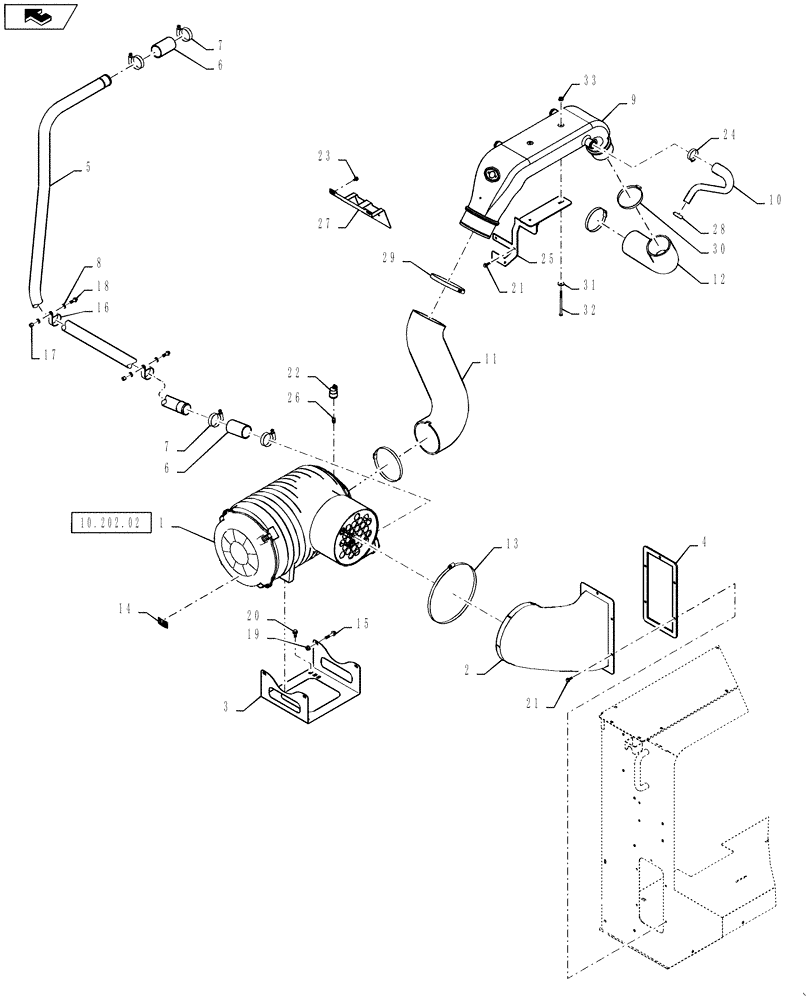

Запчасти Case IH 7120 (10.254.08[05]) - AIR INTAKE-ENGINE-7120 MY11 (10) - ENGINE

1

84305918

AIR CLEANER

Complete Assy

1шт.

2

84410134

TUBE

1шт.

3

87729284

BRACKET

1шт.

4

84210331

GASKET,6.4mm Thk

1шт.

5

87597317

TUBE,2" OD

1шт.

6

87402766

HOSE

2шт.

7

86625019

HOSE CLAMP,44mm - 67mm

4шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

9

84244909

AIR INTAKE TUBE

1шт.

10

84222624

ELBOW

1шт.

11

84172616

AIR HOSE

1шт.

12

84259850

ELBOW

1шт.

13

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

14

84215544

DECAL

Air Filter Element Part Numbers

1шт.

15

87698840

FLANGE BOLT,M10 x 50mm, Cl 10.9

4шт.

16

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.

17

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

18

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

19

86050279

FLANGE NUT,M10 x 1.5, Cl 10

4шт.

20

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

2шт.

21

87698833

BOLT,M8 x 33.1mm, Cl 10.9

8шт.

22

87013666

SWITCH,Air Filter Restriction

1шт.

23

87681207

BOLT,M8 x 24.1mm, Cl 10.9

2шт.

24

382528

HOSE CLAMP,35mm ID - 52mm ID x 13mm W, Unlined

1шт.

25

84195991

BRACKET

1шт.

26

86976679

ADAPTER

1шт.

27

84196410

PLATE

1шт.

28

382527

HOSE CLAMP,25mm ID - 40mm ID x 13mm W, Unlined

1шт.

29

84012068

CLAMP

2шт.

30

9706924

HOSE CLAMP,103.1mm - 127mm

2шт.

31

140041

WASHER,M8 x 28mm OD x 3mm Thk

4шт.

32

381522

BOLT,Hex, M8 x 1.25 x 130mm, Cl 8.8

2шт.

33

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.
