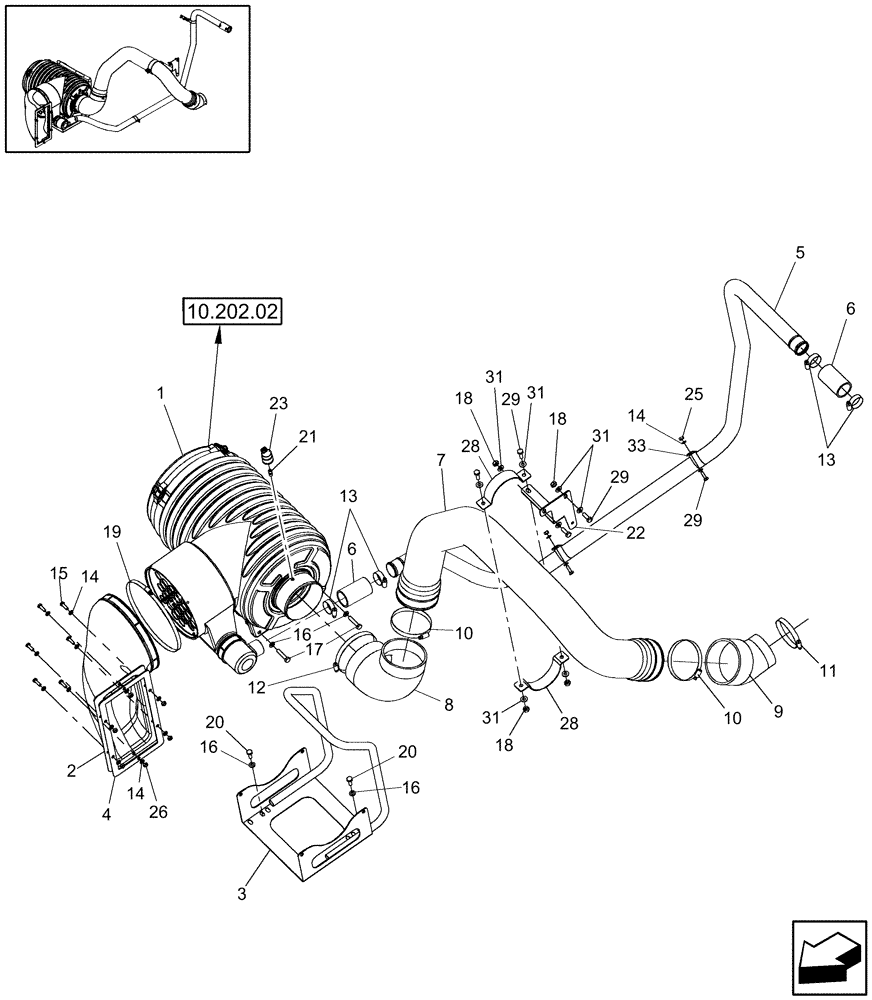

Запчасти Case IH 7120 (10.254.08[01]) - AIR INTAKE - ENGINE - 7120/7120(LA) (10) - ENGINE

1

86998329

AIR CLEANER

1шт.

2

87510512

AIR DUCT

1шт.

3

86998339

BRACKET

1шт.

4

86999111

GASKET

1шт.

5

87597317

TUBE,2" OD

Rigid, Engine Air Filter

1шт.

6

87402766

HOSE

Aspirator; L = 101 mm, I.D. = 2"

2шт.

7

87525276

TUBE,127 mm OD

Engine Air Filter

1шт.

8

86995317

ELBOW

1шт.

9

86995562

ELBOW,102mm ID x 164mm L, SAE J200

1шт.

10

86637712

HOSE CLAMP,133mm - 156mm

6"

2шт.

11

86637711

HOSE CLAMP,108mm - 130mm

5"

1шт.

12

86633350

HOSE CLAMP,159mm - 181mm

7"

1шт.

13

86625019

HOSE CLAMP,44mm - 67mm

2.5"

4шт.

14

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

14шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

16

140017

WASHER,M10 x 20mm OD x 2mm Thk

10шт.

17

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

4шт.

18

100016

NUT,M10 x 1.5, Cl 8

8шт.

19

87012918

HOSE CLAMP,64mm - 317.5mm

1шт.

20

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

21

D36264

FITTING

1шт.

22

87534741

BRACKET

1шт.

23

87013666

SWITCH,Air Filter Restriction

Air Intake

1шт.

25

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

2шт.

26

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

27

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

28

87109174

CLAMP

2шт.

29

86625201

SELF-TAP SCREW,M8 x 1.25 x 30mm L

2шт.

30

9706690

NUT,M8 x 1.25, Cl 8

9шт.

31

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

32

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

33

86634189

CLAMP,50.8mm, Coat, 13.5mm Bolt Hole, P Type

2шт.
