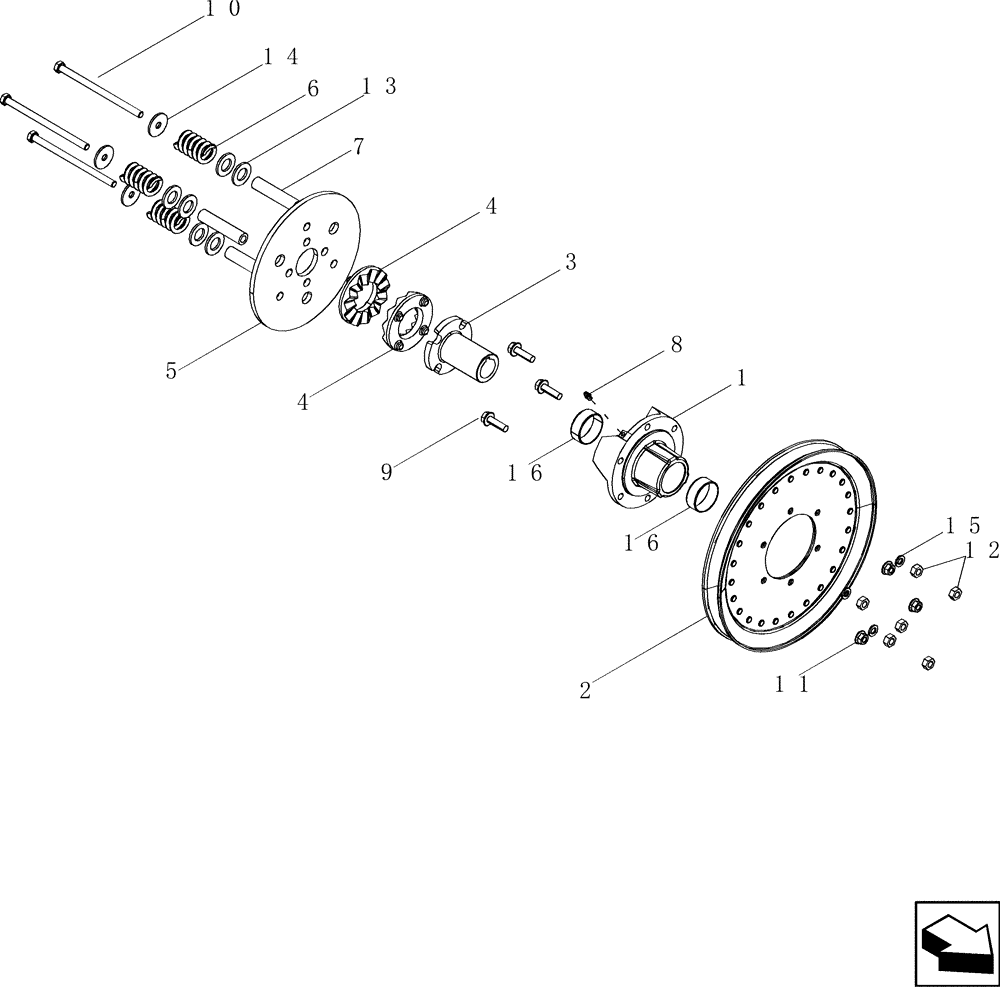

Запчасти Case IH 7088 (18.110.AA[01]) - CLUTCH ASSEMBLY, ELEVATOR JACKSHAFT, BSN Y9G001953 (18) - CLUTCH

1

183210C91

HUB

Elevator Jackshaft

1шт.

2

87757837

PULLEY

Elevator Jackshaft

1шт.

3

198279A1

HUB

Elevator Ratchet Clutch

1шт.

4

168370C2

RATCHET,Clutch Slip, 50.04mm ID x 94.49mm OD

Slip

2шт.

5

194835C2

RETAINER

Clutch Ratchet

1шт.

6

84301305

COMPRESSION SPRING

Spring, Elevator Clutch, Start Serial: YAG003738

3шт.

6

87527502

SPRING

Elevator Clutch, Serial Range: -YAG003738

3шт.

7

186916C2

BUSHING,11.18mm ID x 19.05mm OD x 87.38mm L

Elevator Jackshaft

3шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

9

87698838

FLANGE BOLT,M10 x 35mm, Full Thd, Cl 10.9

3шт.

10

814-10170

BOLT,Hex, M10 x 1.5 x 170mm, Cl 8.8

3шт.

11

87547587

LOCK NUT,Hex, M10 x 1.5, Cl 10

3шт.

12

86512554

NUT,M10 x 1.5, Cl 10

6шт.

13

495-11081

WASHER,3/4", SAE

6шт.

14

87024930

WASHER,10.8mm ID x 50mm OD x 3mm Thk

3шт.

15

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

3шт.

16

936744R1

BUSHING,47.66mm ID x 50.83mm OD x 19.05mm L

Prop Post Pivot

2шт.
