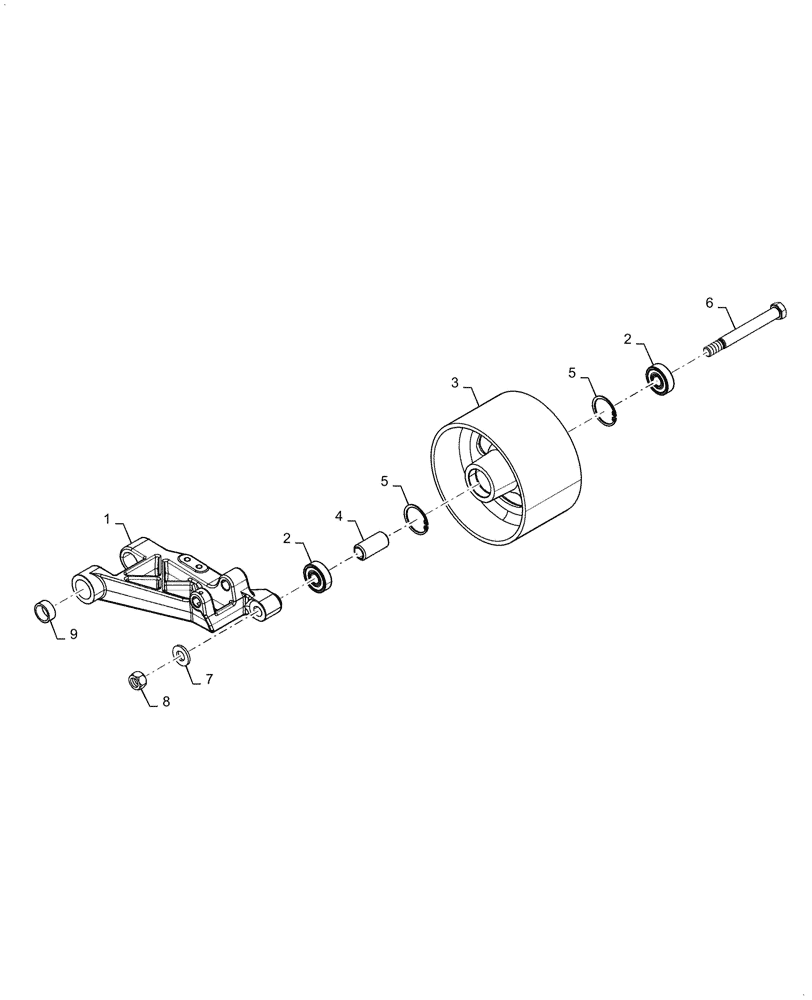

Запчасти Case IH 7088 (14.100.AB[01]) - SEPARATOR IDLER PULLEY ARM (14) - MAIN GEARBOX & DRIVE

1

84421043

ARM

Separator Drive Idler

1шт.

2

87306803

BALL BEARING,17mm ID x 47mm OD x 14mm W

2шт.

3

84342816

PULLEY,203.2mm OD

Idler

1шт.

4

87310758

BUSHING,17.48mm ID x 25.4mm OD x 53.33mm L

Spacer

1шт.

5

800-2147

SNAP RING,M47, Int

2шт.

6

87708446

BOLT

Idler Pulley

1шт.

7

86624189

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

1шт.

8

125-10012

SPECIAL NUT,5/8"-11, G5, LH

1шт.

9

87559340

SLEEVE

Bushing, Arm

2шт.
