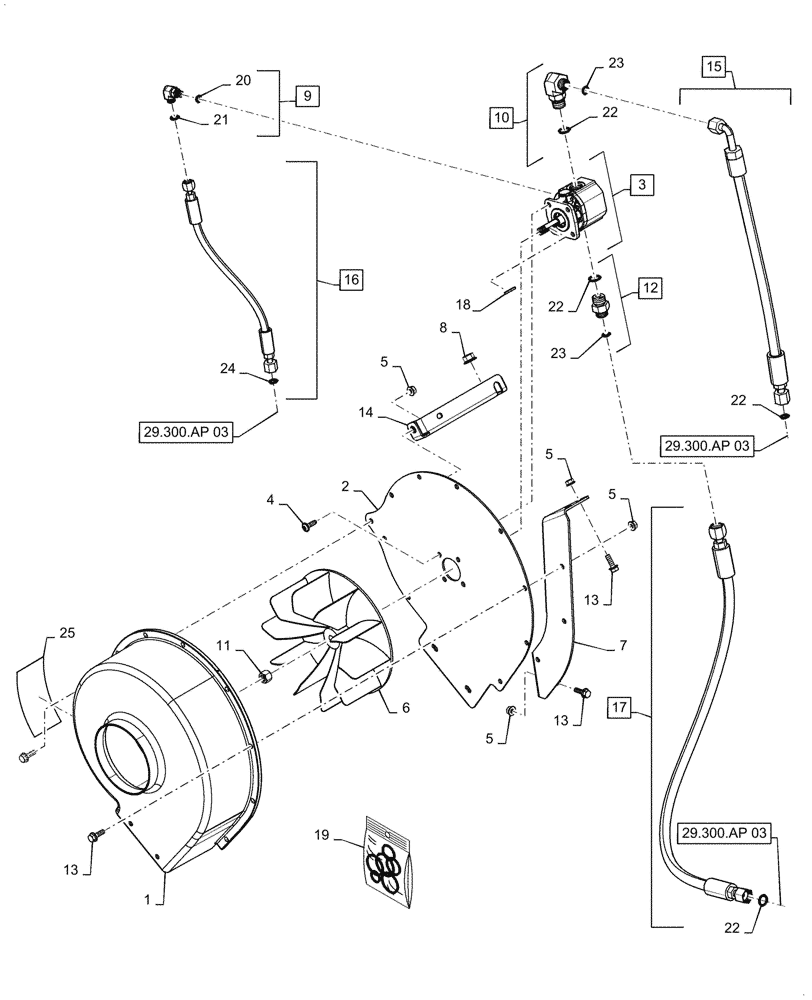

Запчасти Case IH 7088 (10.419.AE) - FAN SCREEN MOTOR (10) - ENGINE

1

87479342

HOUSING

Vacuum Fan

1шт.

2

47806968

PLATE

Suction Fan

1шт.

3

87359661

MOTOR, HYDRAULIC,GEAR, 5.29 CC

Suction Fan, Incl 18

1шт.

4

87624708

STEP BOLT,Torx, M8 x 1.25 x 25.4mm, Cl 10.9

4шт.

5

86507066

FLANGE NUT,M8 x 1.25, Cl 10

18шт.

6

47371876

FAN

Wheel Assy

1шт.

7

47803055

BRACKET

Upper

1шт.

8

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.

9

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl 20, 21

1шт.

10

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 22, 23

1шт.

11

87366201

NUT

1/2" PT

1шт.

12

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl 22, 23

1шт.

13

87698833

BOLT,M8 x 33.1mm, Cl 10.9

14шт.

14

47803083

BRACKET

Lower

1шт.

15

87609431

HOSE ASSY.

Motor Supply, Incl 22

1шт.

16

87609429

HOSE ASSY.

Motor Drain, Incl 24

1шт.

17

87609428

HOSE ASSY.

Motor Supply, Incl 22

1шт.

18

122067

KEY

Square

1шт.

19

87341607

SEAL KIT

Fan Motor

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

21

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

24

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

25

332512A1

DECAL

Fan Warning

1шт.
